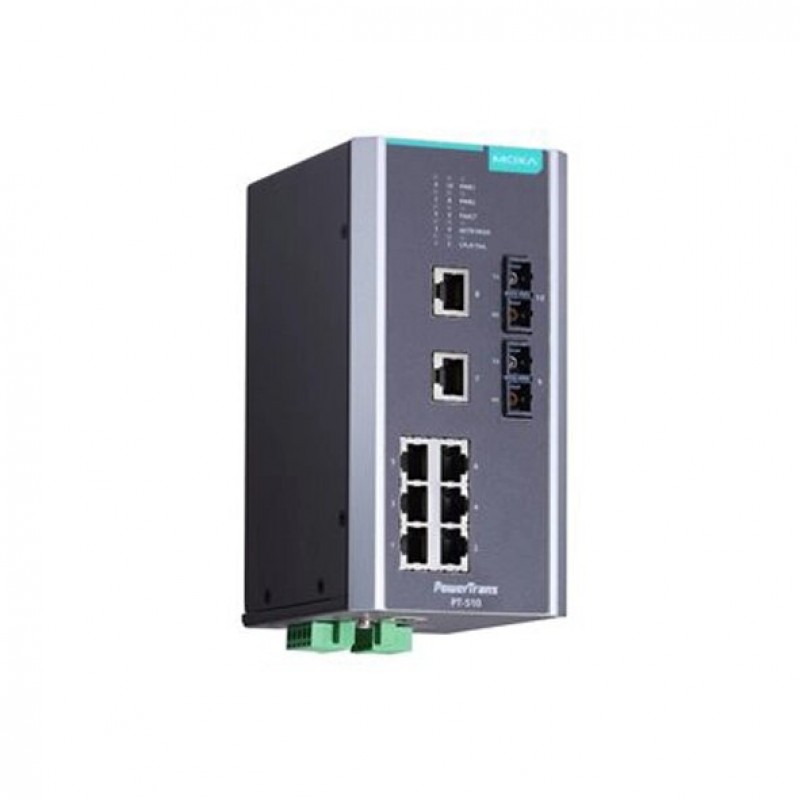

MOXA PT-510-MM-SC-48 Managed Ethernet Switches
- 8 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x 100BaseFX Ports (multi-mode SC connector)
- 5 KM Typical data transmission distance on fiber
- DIN-rail mounting
- 48 VDC Redundant dual power inputs
- IP40-rated Aluminum body design
- -40 to 85°C operating temperature range
.png)
Description
The PowerTrans PT-510 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-510 makes network planning easy and allows greater flexibility by letting you install up to 10 Fast Ethernet ports for power distribution applications.
You can also find the PT-510-3S-SC-24, PT-510-MM-LC-48, and PT-510-MM-LC-24 models in the IEC 61850-3 Ethernet Switches.
Explore our extensive range of
industrial automation products such as MOXA PT-510-MM-SC-48 Managed Ethernet Switches in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 2 SC Ports |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Consoles Port (RJ45 connector), 1 x Alarm Contact Channel |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.18 A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 48 VDC (36 to 72 VDC) |
| Operating Voltage | - |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 372,276 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in) |
| Housing | Aluminum |
| Installation | DIN-rail mounting (with optional kit) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Safety: UL 508; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1210 g (2.69 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
