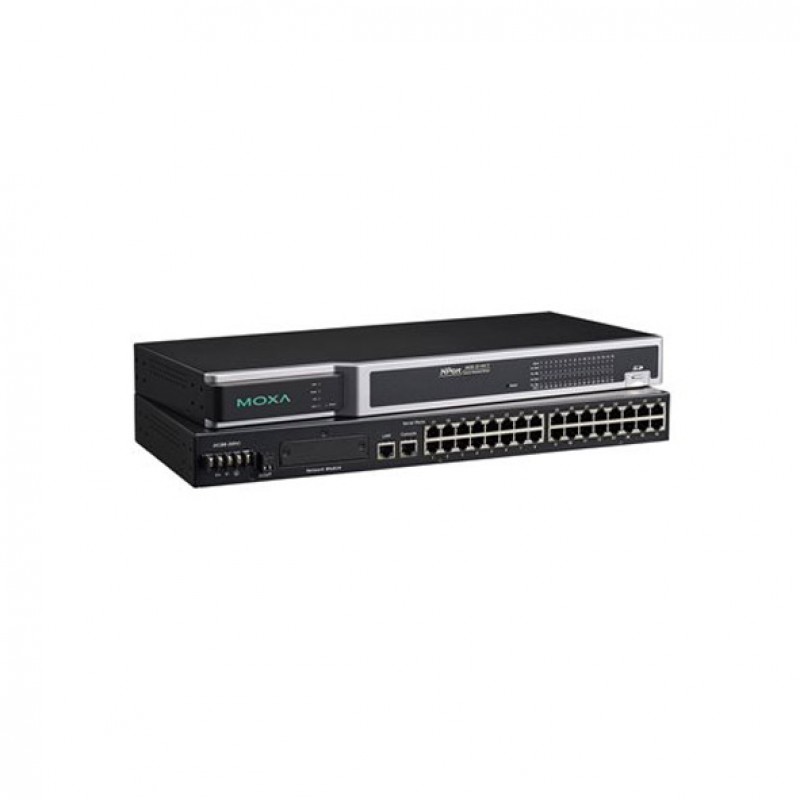

MOXA NPort 6650-32-HV-T Serial to Ethernet Device Server
- LCD panel for easy IP address configuration (standard temp. models)
- Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
- Nonstandard baudrates supported with high precision
- Port buffers for storing serial data when the Ethernet is offline
- Supports IPv6
- Ethernet redundancy (STP/RSTP/Turbo Ring) with a network module
- Generic serial commands supported in Command-by-Command mode
- Security features based on IEC 62443
- Brand: MOXA
- Product Code: NPort 6650-32-HV-T
Description
The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.
You can also find the NPort 6650-16, NPort 6650-8-48V, and NPort 6650-32 models in the Serial-to-Ethernet Converters.
You can explore our wide range of
products and enquire about the MOXA NPort 6650-32-HV-T Serial to Ethernet Device Server for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Serial Interface | |
|---|---|
| Number of Ports | 32 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | 8-pin RJ45 |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | NPort 6600 Series: 120 ohms |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel version: 2.4.x, 2.6.x, 3.x, 4.x |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Power Requirements | |
| Input Voltage | AC Models: 100 to 240 VAC, DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Ethernet Interface | |
| Standards | Telcordia (Bellcore) Standard TR/SR |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Physical Characteristics | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs |
| Housing | Metal |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
