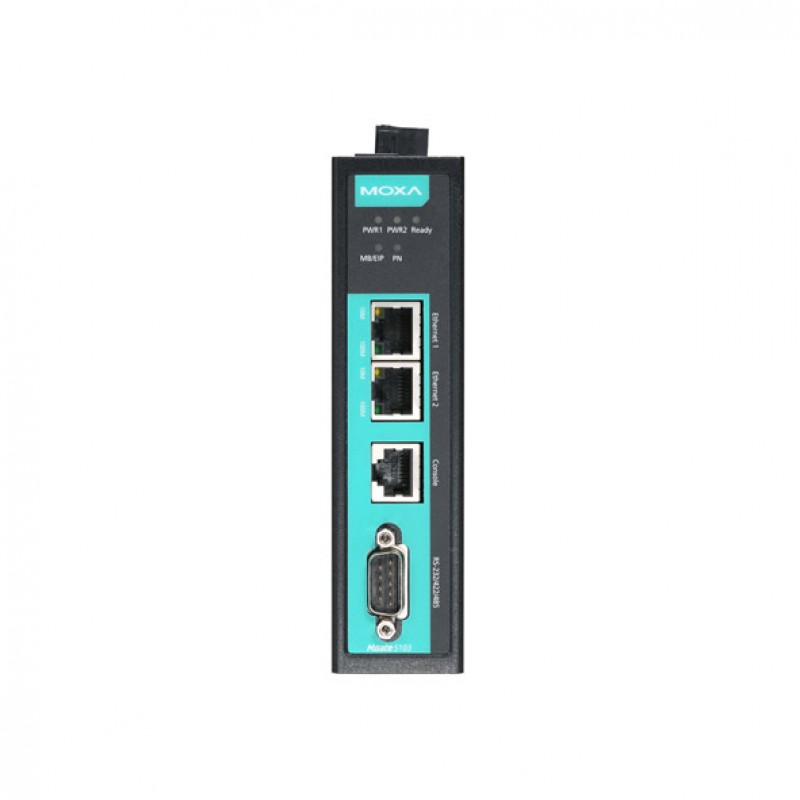

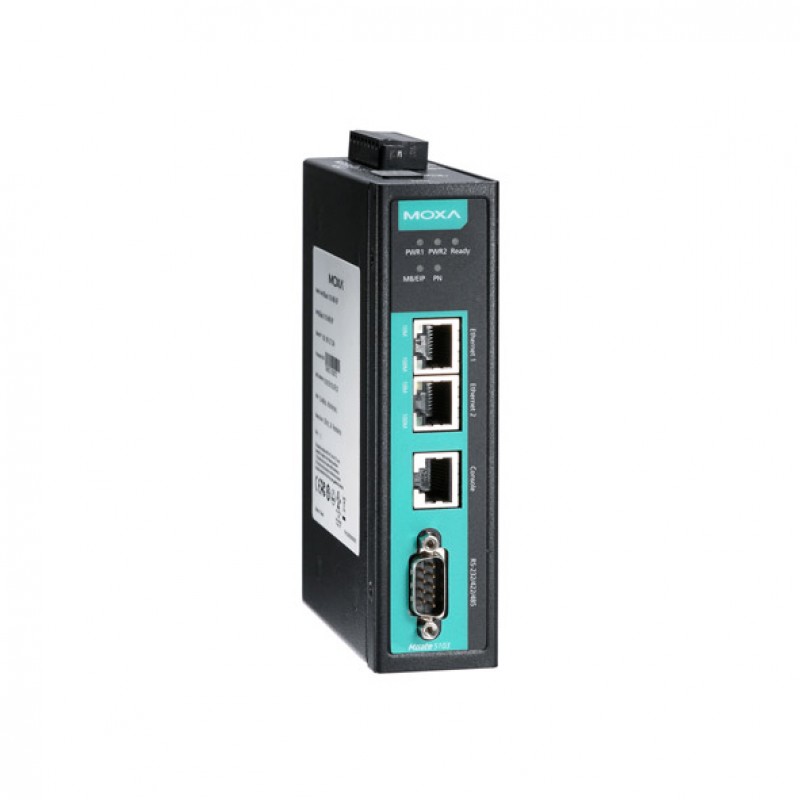

MOXA MGate 5103 Industrial Ethernet Gateways
- Converts Modbus, or EtherNet/IP to PROFINET
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9 male connector)
- 2 KV Isolation protection for serial port
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- 0 to 60°C operating temperature range
.png)
Description
The MGate 5103 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP, EtherNet/IP, and PROFINET network communications. To integrate existing Modbus devices onto a PROFINET network, use the MGate 5103 as a Modbus master/slave or EtherNet/IP adapter to collect data and exchange data with PROFINET devices. The latest exchange data will be stored in the gateway. The gateway will convert stored Modbus or EtherNet/IP data into PROFINET packets so the PROFINET IO Controller can control or monitor field devices.
Easy Configuration via Web Console
The MGate 5103 Series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5103 Series also supports a GSDML export function. GSDML files can be imported into PROFINET PLCs to save time on PLC configuration.
Modbus RTU/ASCII/TCP Protocol Traffic Monitor
MGate 5103 gateways support Modbus RTU/ASCII/TCP Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave IDs and register addresses, that were entered incorrectly, or an incorrect command configuration. With Modbus RTU/ASCII/TCP Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.
Maintenance Functions
MGate 5103 supports a system log function that records events in the MGate; users can easily review log data remotely through the web console. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators.
You can also find the MGate 5103-T model in the Industrial Ethernet Gateways.
Experience the convenient way to purchase the MOXA MGate 5103 Industrial Ethernet Gateways in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | |
| Protocols | Ethernet: PROFINET IO Device, Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Adapter; Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
| Serial port specifications | |
| Number of Ports | 1 Port |
| Console Port | : RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485, software selectable |
| Isolation | : 2 kV (built-in) |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client |
| MTBF | 859,422 hrs |
| Memory | |
| microSD Slot | : Up to 32 GB (SD 2.0 compatible) |
| Power Requirements | |
| Input Current | 455 mA @ 12 VDC; 125 mA @ 48 VDC |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| Power Connector | Screw-fastened Euroblock terminal |
| Security | |
| Security | Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 508; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Weight | 507 g (1.12 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
