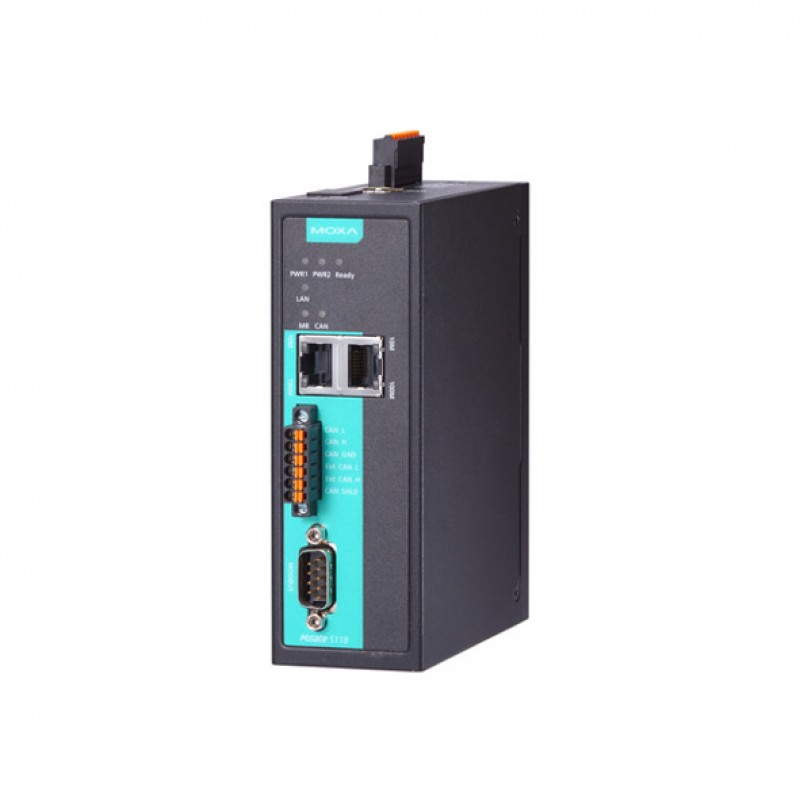

MOXA MGate 5118-T Industrial Ethernet Gateways
- Converts CAN-J1939 to Modbus/PROFINET/EtherNet/IP
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9 male connector)
- 1 x CAN port (Spring-type Euroblock terminal connector)
- 2 KV Isolation protection for serial and CAN ports
- 12 to 48 VDC input power range
- IP30-rated Metal body design
- -40 to 75°C operating temperature
.png)
Description
The MGate 5118 industrial protocol gateways support the SAE J1939 protocol, which is based on the CAN bus (Controller Area Network). SAE J1939 is used to implement communication and diagnostics among vehicle components, diesel engine generators, and compression engines, and is suitable for the heavy-duty truck industry and backup power systems. It is now common to use an engine control unit (ECU) to control these kinds of devices, and more and more applications are using PLCs for process automation to monitor the status of J1939 devices connected behind the ECU.
The MGate 5118 gateways support the Modbus RTU/ASCII/TCP, EtherNet/IP, and PROFINET protocols to support most PLC applications. Devices that support the J1939 protocol can be monitored and controlled by PLCs and SCADA systems that use the Modbus RTU/ASCII/TCP, EtherNet/IP, and PROFINET protocols. With the MGate 5118, you can use the same gateway in a variety of PLC environments.
You can also find the MGate 5118 model in the Industrial Ethernet Gateways.
Explore our extensive range of
industrial automation products such as MOXA MGate 5118-T Industrial Ethernet Gateways in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | : 1 x CAN port with 2 KV isolation (Spring-type Euroblock terminal connector) |
| Protocols | Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device, EtherNet/IP Scanner, EtherNet/IP Adapter; Serial: J1939, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave; CAN: J1939 |
| Serial port specifications | |
| Number of Ports | 1 Port |
| Console Port | : RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485 |
| Isolation | : 2 kV (built-in) |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client |
| MTBF | 727,873 hrs |
| Memory | |
| microSD Slot | : Up to 32 GB (SD 2.0 compatible) |
| Power Requirements | |
| Input Current | 416 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Spring-type Euroblock terminal |
| Security | |
| Security | Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in) |
| Standards and Certifications | Safety: EN 62368-1, UL 61010-2-201; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Weight | 589 g (1.30 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
