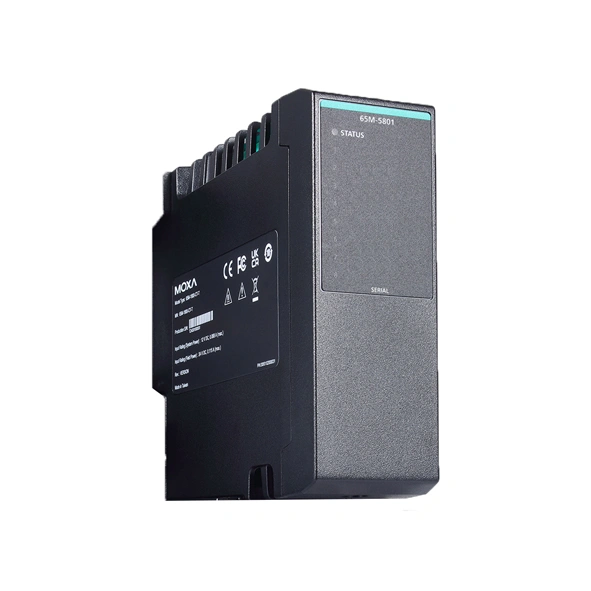

MOXA 65M-5801-CT-T I/O Module

MOXA 65M-5801-CT-T I/O Module
MOXA 65M-5801-CT-T I/O Module
Key Features:
  • I/O and TB module for modular programmable IIN controllers
  • 8 x Serial channels (RS-232, RS-422, RS-485-2w)
  • Plastic housing design
  • DIN-rail and Rack mounting (with optional kit)
  • -40 to 75°C operating temperature range
  • Brand: MOXA
  • Model: 65M-5801-CT-T
0 reviews • Write a review
ENQUIRE NOW
Add to Wish List Compare this Product
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (15g, half-sine, 11ms according to IEC60068-2-27)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
MOXA 65M-1900-CT-T I/O Module
Quickview
MOXA 65M-1900-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-2901-CT-T I/O Module
Quickview
MOXA 65M-2901-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-3600-CT-T I/O Module
Quickview
MOXA 65M-3600-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-3610-CT-T I/O Module
Quickview
MOXA 65M-3610-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-3800H-CT-T I/O Module
Quickview
MOXA 65M-3800H-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-4820-CT-T I/O Module
Quickview
MOXA 65M-4820-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

You can also find the 65M-1900-CT-T, 65M-3600-CT-T, 65M-2901-CT-T, and 65M-4820-CT-T models in the MOXA ioPAC 6500 Series (65M) I/O Modules.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA 65M-5801-CT-T I/O Module through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

REMOTE I/O MODULES : INPUT/OUTPUT INTERFACE
Digital Input and Output No
Analog Input and Output No
System Power Input Channels No
Thermocouple Channels No
Field Power Input and Output No
Relays No
RTD Channels No
Ethernet Ports No
CAN Ports No
Serial Ports Yes : 8 x channels
Isolation Yes : Between signal and system: 3k VDC, Between groups: 1k VDC per min
REMOTE I/O MODULES : SERIAL INTERFACE
Connector -
Serial Standards RS-232, RS-422, RS-485-2w
Serial Communication Parameters Baudrate: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps; Data Bits: 7, 8; Stop Bits: 1, 2; Parity: None, Even, Odd; Flow Control: RTS/CTS, XON/XOFF
Serial Signals RS-232: TxD, RxD, RTS, CTS, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND
REMOTE I/O MODULES : GENERAL
MTBF 2,310,512 hrs
REMOTE I/O MODULES : POWER REQUIREMENTS
Power Connector -
Input Voltage -
Power Consumption System Power: 0.143 @ 12 VDC; Field Power: 0.11 A @ 24 VDC
REMOTE I/O MODULES : PHYSICAL CHARACTERISTICS
Housing Plastic
Dimensions 42 x 116 x 130 mm (1.65 x 4,57 x 5.12 in)
Installation DIN-rail mounting, Rack mounting (with optional kit)
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 259 g (0.57 lb)
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 75°C (-40 to 167°F), Note: Proper airflow is required in an environment with temperature > 65°C.
Standards and Certifications EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV, IEC 61000-4-6 CS: Power: (DC) 10 V; Signal: 10 Vrms, IEC 61000-4-8 PFMF: 30 A/m; Safety: UL 61010-2-201, UL 61010-1; Shock: IEC 60068-2-27, Half sine wave; acceleration: 15 g; time: 11 ms; Vibration: IEC 60068-2-6; DIN-rail mounted: 7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz); Rack mounted (with optional kit): 7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz); Telcordia Standard SR-332
Altitude Up to 2000 meters
