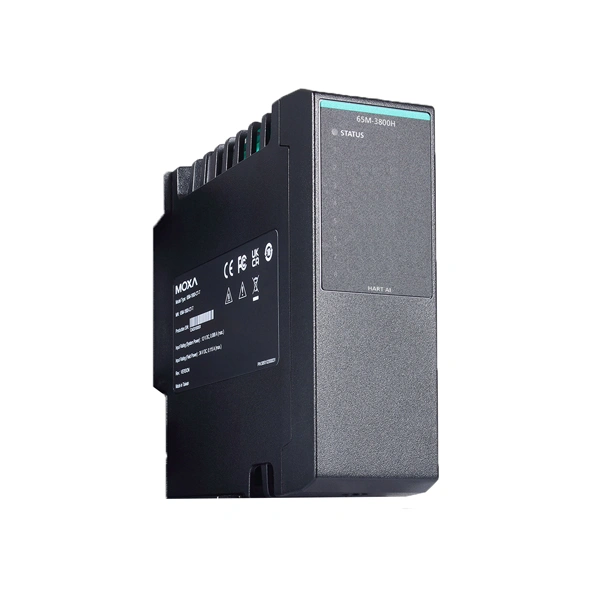

MOXA 65M-3800H-CT-T I/O Module

MOXA 65M-3800H-CT-T I/O Module
MOXA 65M-3800H-CT-T I/O Module
Key Features:
  • I/O and TB module for modular programmable IIN controllers
  • 8 x Analog input channels (HART mode, 4 to 20 mA)
  • Plastic housing design
  • DIN-rail and Rack mounting (with optional kit)
  • -40 to 75°C operating temperature range
  • Brand: MOXA
  • Model: 65M-3800H-CT-T
0 reviews • Write a review
ENQUIRE NOW
Add to Wish List Compare this Product
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (15g, half-sine, 11ms according to IEC60068-2-27)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
MOXA 65M-1900-CT-T I/O Module
Quickview
MOXA 65M-1900-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-2901-CT-T I/O Module
Quickview
MOXA 65M-2901-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-3600-CT-T I/O Module
Quickview
MOXA 65M-3600-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-3610-CT-T I/O Module
Quickview
MOXA 65M-3610-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-4820-CT-T I/O Module
Quickview
MOXA 65M-4820-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 65M-5801-CT-T I/O Module
Quickview
MOXA 65M-5801-CT-T I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

You can also find the 65M-1900-CT-T, 65M-3600-CT-T, 65M-4820-CT-T, and 65M-5801-CT-T models in the MOXA ioPAC 6500 Series (65M) I/O Modules.

Explore our extensive range of industrial automation products, such as the MOXA 65M-3800H-CT-T I/O Module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

REMOTE I/O MODULES : INPUT/OUTPUT INTERFACE
Digital Input and Output No
Analog Input and Output Yes : 8 x Analog input channels (HART mode, 4 to 20 mA)
System Power Input Channels No
Thermocouple Channels No
Field Power Input and Output No
Relays No
RTD Channels No
Ethernet Ports No
CAN Ports No
Serial Ports No
Isolation Yes : 3k VDC (Between signal and system)
REMOTE I/O MODULES : SERIAL INTERFACE
Connector -
Serial Standards -
Serial Communication Parameters -
Serial Signals -
REMOTE I/O MODULES : GENERAL
MTBF 1,016,573 hrs
REMOTE I/O MODULES : POWER REQUIREMENTS
Power Connector -
Input Voltage -
Power Consumption System Power: 0.072 A @ 12 VDC; Field Power: 0.05 A (max.) @ 24 VDC (without internal loop power), 0.25 A (max.) @ 24 VDC (8-channel 4 to 20 mA input with internal loop power, all in 20 mA), 0.66 A (max.) @ 24 VDC (500 mA input with internal loop power)
REMOTE I/O MODULES : PHYSICAL CHARACTERISTICS
Housing Plastic
Dimensions 42 x 116 x 130 mm (1.65 x 4,57 x 5.12 in)
Installation DIN-rail mounting, Rack mounting (with optional kit)
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 262 g (0.58 lb)
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 75°C (-40 to 167°F), Note: Proper airflow is required in an environment with temperature > 65°C.
Standards and Certifications EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV, IEC 61000-4-6 CS: Power: (DC) 10 V; Signal: 10 Vrms, IEC 61000-4-8 PFMF: 30 A/m; Safety: UL 61010-2-201, UL 61010-1; Shock: IEC 60068-2-27, Half sine wave; acceleration: 15 g; time: 11 ms; Vibration: IEC 60068-2-6; DIN-rail mounted: 7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz); Rack mounted (with optional kit): 7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz); Telcordia Standard SR-332
Altitude Up to 2000 meters
