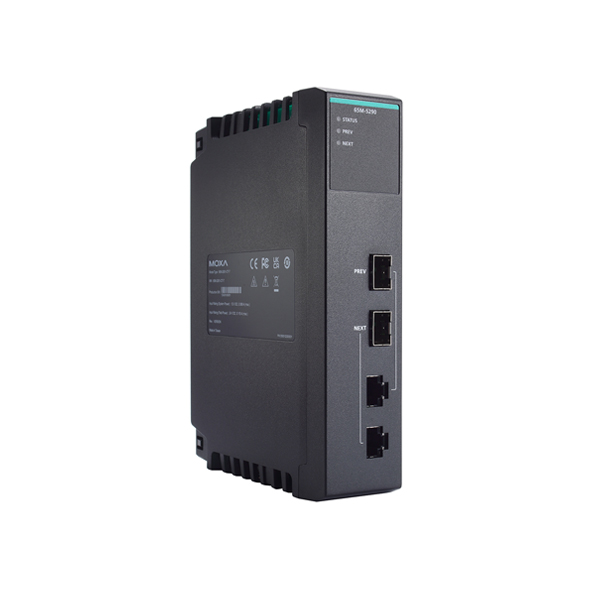

MOXA 65M-5290-CT-T Expansion Module

MOXA 65M-5290-CT-T Expansion Module
MOXA 65M-5290-CT-T Expansion Module
Key Features:
  • Expansion module for modular programmable IIN controllers
  • 2 x SFP + 2 x RJ45 combo port design with priority for SFP ports
  • Plastic housing design
  • DIN-rail and rack mounting
  • -40 to 75°C operating temperature (with SFP module installed)
  • Brand: MOXA
  • Model: 65M-5290-CT-T
0 reviews • Write a review
ENQUIRE NOW
Add to Wish List Compare this Product
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (15g, half-sine, 11ms according to IEC60068-2-27)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
MOXA 45ML-5401 Remote I/O Module
Quickview
MOXA 45ML-5401 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45ML-5401-T Remote I/O Module
Quickview
MOXA 45ML-5401-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600 Remote I/O Module
Quickview
MOXA 45MR-1600 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600-T Remote I/O Module
Quickview
MOXA 45MR-1600-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601 Remote I/O Module
Quickview
MOXA 45MR-1601 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601-T Remote I/O Module
Quickview
MOXA 45MR-1601-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404 Remote I/O Module
Quickview
MOXA 45MR-2404 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404-T Remote I/O Module
Quickview
MOXA 45MR-2404-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

You can also find the ioPAC 6500 Series (65M) Backplane Modules, ioPAC 6500 Series (65M) CPU Modules, ioPAC 6500 Series (65M) Communication Modules, ioPAC 6500 Series (65M) I/O Modules, and ioPAC 6500 Series (65M) Power Modules in the MOXA Intelligent Integrated Node.

Explore our extensive range of industrial automation products, such as the MOXA 65M-5290-CT-T Expansion Module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

REMOTE I/O MODULES : INPUT/OUTPUT INTERFACE
Digital Input and Output No
Analog Input and Output No
System Power Input Channels No
Thermocouple Channels No
Field Power Input and Output No
Relays No
RTD Channels No
Ethernet Ports Yes : 2 x SFP + 2 x RJ45 combo port design with priority for SFP ports
CAN Ports No
Serial Ports No
Isolation Yes : 1500 VDC/min (Between the external connection port and the system)
REMOTE I/O MODULES : SERIAL INTERFACE
Connector -
Serial Standards -
Serial Communication Parameters -
Serial Signals -
REMOTE I/O MODULES : GENERAL
MTBF 2,800,019 hrs
REMOTE I/O MODULES : POWER REQUIREMENTS
Power Connector -
Input Voltage -
Power Consumption System Power: 0.38 A @ 12 VDC
REMOTE I/O MODULES : PHYSICAL CHARACTERISTICS
Housing Plastic
Dimensions 42 x 177 x 131.5 mm (1.65 x 6.97 x 5.18 in)
Installation DIN-rail mounting, Rack mounting (with optional kit)
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 501 g (1.1 lb)
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 75°C (-40 to 167°F), (with SFP module installed), Note: Proper airflow is required in an environment with temperature > 65°C
Standards and Certifications EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV, IEC 61000-4-6 CS: Power: Power: (DC) 10 V; Signal: 10 Vrms, IEC 61000-4-8 PFMF: 30 A/m; Safety: UL 61010-2-201, UL 61010-1; Shock: IEC 60068-2-27, Half sine wave; acceleration: 15 g; time: 11 ms; Vibration: IEC 60068-2-6; DIN-rail mounted: 7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz); Rack mounted (with optional kit): 7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz); Package Vibration Test: ISTA 1A; Package Drop Test: ISTA 1A; Telcordia Standard SR-332
Altitude 2000 m
