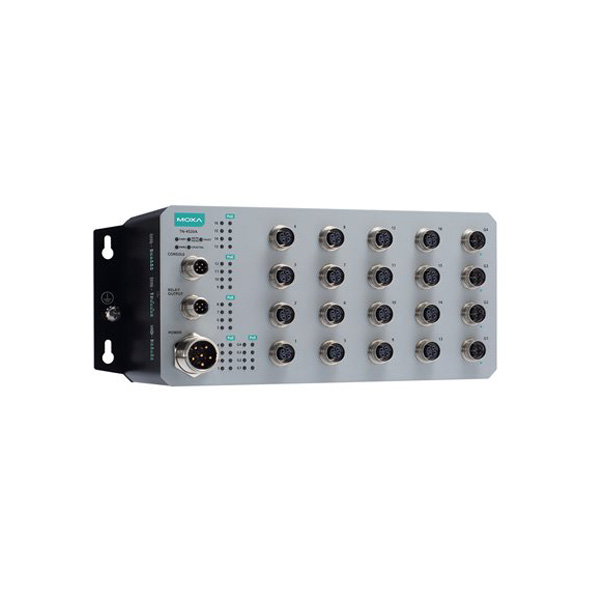

Name: MOXA TN-4520A-16PoE-4GPoE-WV-T Managed Ethernet Switch
Brand: MOXA
Availability: InStock

MOXA TN-4520A-16PoE-4GPoE-WV-T Managed Ethernet Switch

16 x PoE Ports (10/100BaseT(X), M12 connector)
4 x PoE Ports (100/1000BaseT(X), M12 connector)
24 to 110 VDC dual power inputs
Wall Mount installation design
IP42-rated Metal body design
-40 to 70°C operating temperature

Brand: MOXA
Model: TN-4520A-16PoE-4GPoE-WV-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 70°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP42)
Freefall (IEC 60068-2-31)
Shock (IEC 60068-2-27, IEC 61373, EN 50155)
Vibration (IEC 60068-2-64, IEC 61373, EN 50155)

Factory Automation
Railway Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA TN-4508B-CT-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA TN-4512A-WV-CT-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA TN-4512A-WV-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA TN-4512B-8P-4G-CT-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA TN-4516A-12PoE-2GPoE-2GODC-WV-CT-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA TN-4516A-12PoE-2GPoE-2GODC-WV-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA TN-4516A-12PoE-2GPoE-2GTXBP-WV-CT-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA TN-4516A-12PoE-2GPoE-2GTXBP-WV-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Switches , Industrial Data Communications , Managed Ethernet Switches , Layer 2 Managed Switches , Layer 2 Switches , PoE Switches , EN50155 Ethernet Switches , EN 50155 Switches , Industrial Ethernet Switches , Factory Automation Products , Railway Transportation Products , Switches , MOXA TN-4500A Series

The ToughNet TN-4500A Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500A Series Ethernet switches provide 12 or 24 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit Ethernet interfaces with PoE and optional bypass relay functionality. In addition, the fiber models provide 2 Gigabit fiber interface ports with an embedded 2 km multimode fiber transceiver. The PoE switches are classified as power source equipment (PSE).

The switches provide up to 30 watts of power per port and can be used to power IEEE 802.3at/af-compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe but also increase the reliability of your communications system. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can withstand deployment in harsh environments. TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

You can also find the TN-4520A-16PoE-4GPoE-WV-CT-T, TN-4516A-12PoE-4GPoE-WV-T, and TN-4528A-16PoE-4GPoE-WV-T models in the EN50155 Ethernet Switches.

You can explore our wide range of products and enquire about the MOXA TN-4520A-16PoE-4GPoE-WV-T Managed Ethernet Switch for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

switch and hub : Interface
Number of ports	20 Ports
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	Yes : 16 Ports (M12 connector)
10/100/1000Mb (Gigabit) POE Ports	Yes : 4 Ports (M12 connector)
Other ports	Yes : 2 x Alarm Contact Channels (M12 connector), 1 x Console Port (M12 connector)
switch and hub : Features and capabilities
Backup	Yes : ABC-01
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	Max. 7.0 A @ 24 VDC
Power Input Plugin ( Redundant )	No
Input Voltage	24/36/48/72/96/110 VDC (Dual power inputs)
Operating Voltage	16.8 to 137.5 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	437,198 hrs
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Managed
Port Aggregation	No
switch and hub : Physical Characteristics
Dimensions	279.6 x 115 x 122.3 mm (11.00 x 4.53 x 4.82 in)
Housing	Metal
Installation	Wall mounting
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Radio Frequency: FCC; Railway: EN 50121-4, EN 50155, IEC 60571; Railway Fire Protection: EN 45545-2; Safety: UL 62368-1, IEC 62368-1, EN 62368-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Green Product: RoHS, CRoHS, WEEE; IP42; Telcordia SR332
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	2,292 g (5.05 lb)
switch and hub : Standards and protocols
Protocols and work standards	MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC, Static Port Trunk, LACP
Protocols and management standards	IPv4/IPv6, Flow control, LLDP, ICMP, Port Mirror, QoS/CoS/ToS, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Account Management, Loop Protection, DNS Server, DHCP option 82 (relay agent), Port-based DHCP Server, DHCP Server (options 1/3/12/15/42/50/55), DHCP Client (options 1/3/50/51/53/54/55/57/66/67), GMRP,GVRP, 802.1Q VLAN, Port-based VLAN, Static Multicast, Multicast Filtering, IGMP Snooping v1/v2/v3, IGMP Querier, DHCP Filter
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
