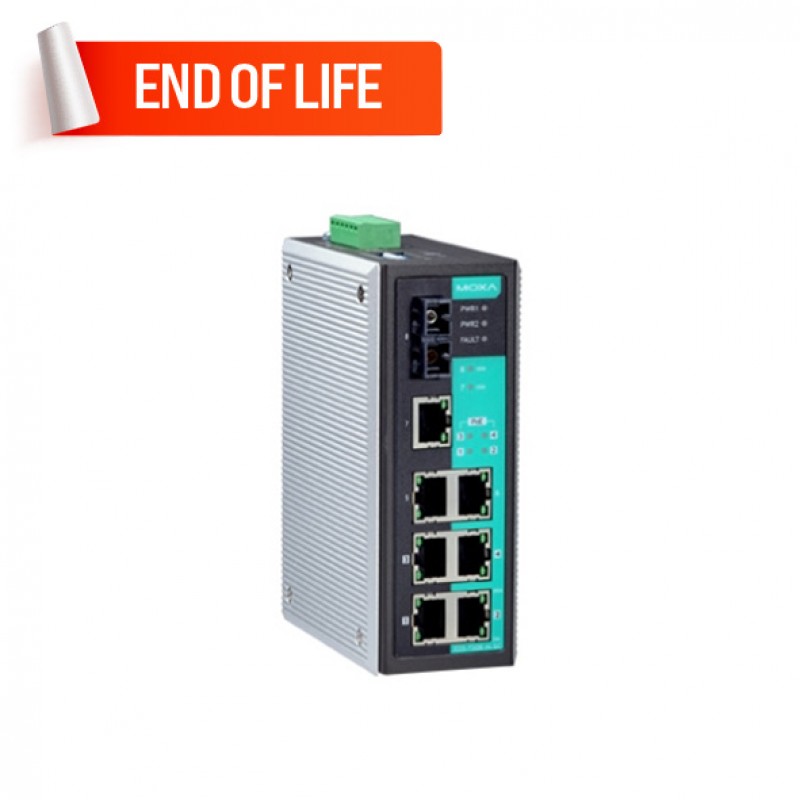

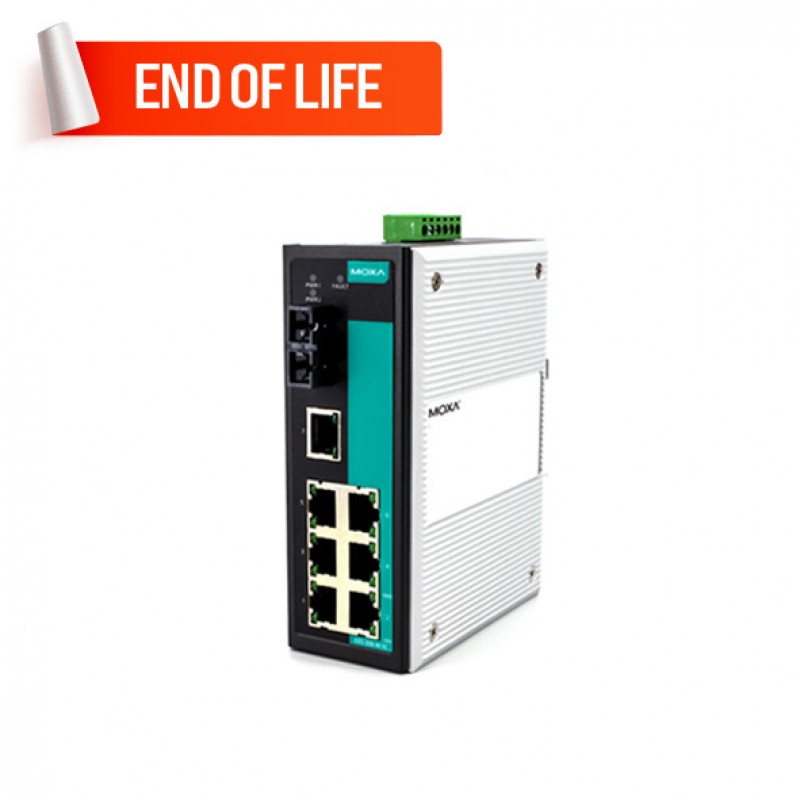

MOXA EDS-P308-S-SC-T Unmanaged Ethernet Switches
- 4 100Mbps PoE ports and 3 100Mbps ports and 1 100Mb single-mode fiber optic port
- Din-rail
- Metal body
- Suitable for work in a wide range of temperatures
- Brand: MOXA
- Product Code: EDS-P308-S-SC-T
.png)
Description
The EDS-P308 switches are smart, 8-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P308 switches enable centralization of the power supply and provide up to 15.4 watts of power per port. The switches can be used to power IEEE 802.3af-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network. In addition, the built-in relay warning function alerts network engineers when power failures or port breaks occur.
You can also find the EDS-P308-T, EDS-P308-M-SC, and EDS-P308-MM-SC-T models in the DIN-Rail Ethernet Switches.
Experience the convenient way to purchase the MOXA EDS-P308-S-SC-T Unmanaged Ethernet Switches in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 3 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 SC Port |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | : 4 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | 15.4W (in PoE mode) |
| Power Consumption (Output Adapter) | 48V DC, 1.6A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 406194 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 53.6x135x105mm |
| Housing | Metal |
| Installation | Din-rail, Wall mount |
| Operating Temperature | -40 to 75 ° C |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | FCC, UL 508, DNV, GL, LR, ABS, NK, IP30 |
| Storage Humidity | - |
| Storage Temperature | -40 to 85 ° C |
| Weight | 0.84Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3af for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
