Description

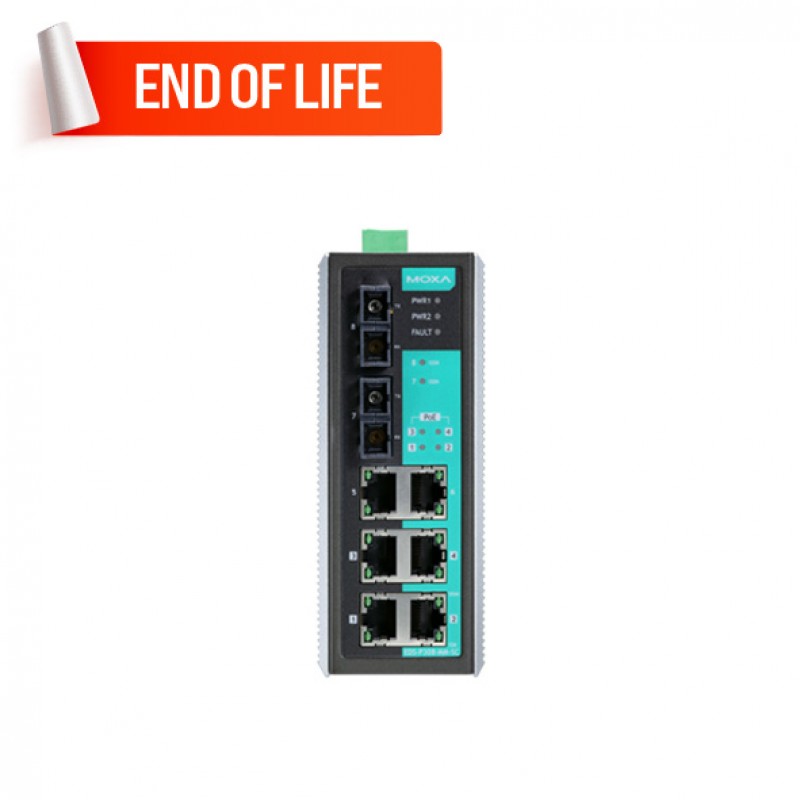

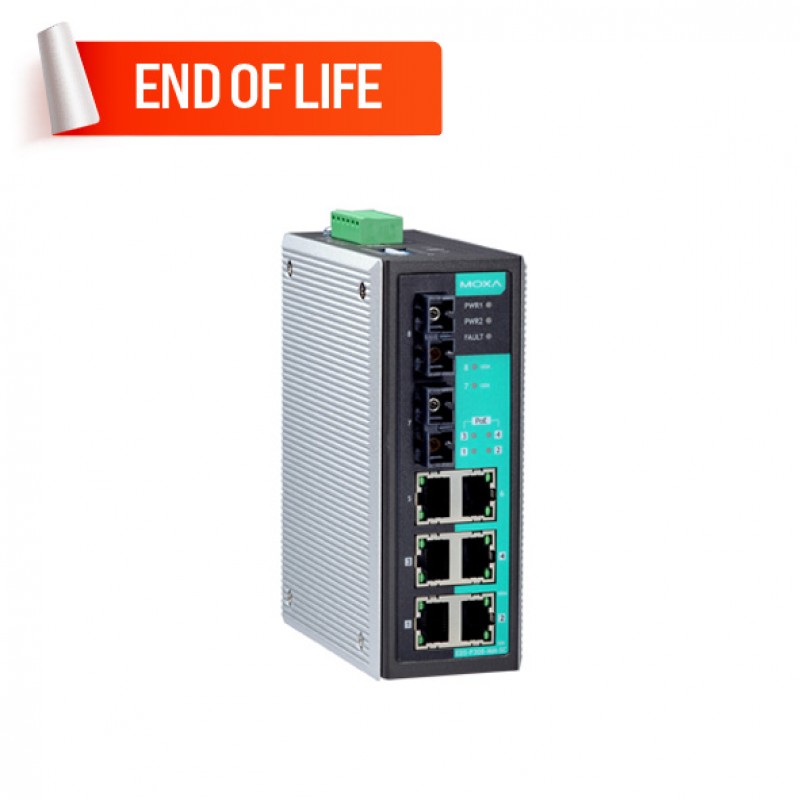

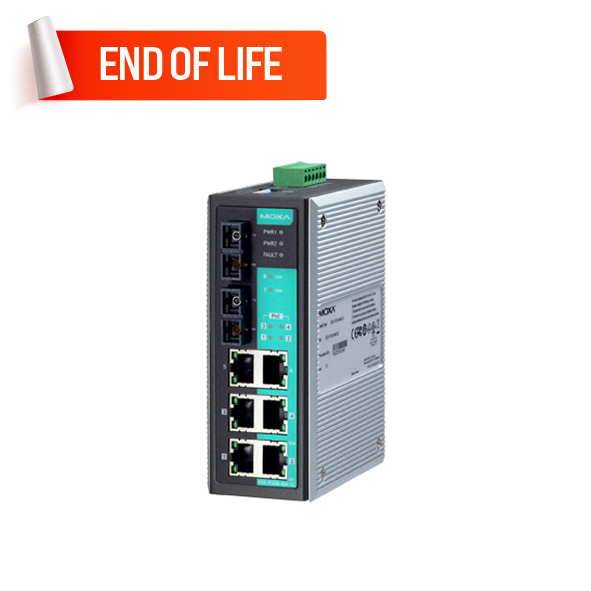

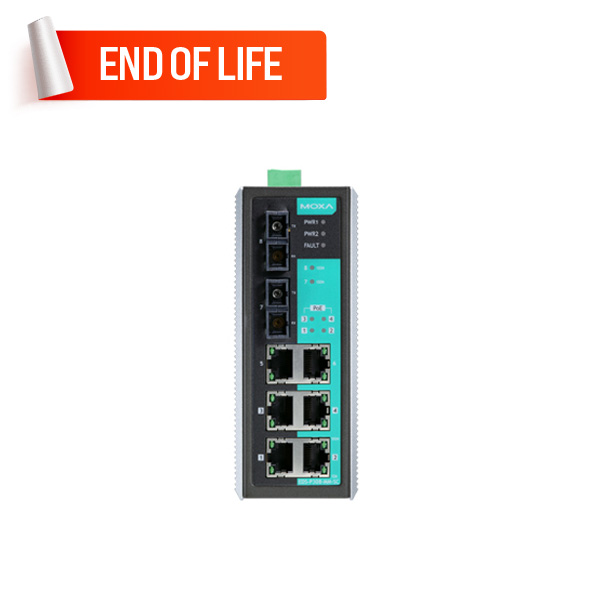

The EDS-P308 switches are smart, 8-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P308 switches enable centralization of the power supply and provide up to 15.4 watts of power per port. The switches can be used to power IEEE 802.3af-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network. In addition, the built-in relay warning function alerts network engineers when power failures or port breaks occur.
You can also find the EDS-P308-MM-SC-T, EDS-P308-SS-SC, and EDS-P308-M-SC models in the DIN-Rail Ethernet Switches.
Easy World Automation offers the
easiest way to buy the MOXA EDS-P308-SS-SC-T Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 2 SC Port |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 4 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Maximum power consumption | 15.4W (in PoE mode) |
| Power Consumption (Output Adapter) | 48V DC, 1.6A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 406194 hour |
| Backup and restore port | |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1IEEE 802.3af for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control |
| Switch type | UnManaged |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 53.6x135x105mm |
| Housing | Metal |
| Installation | Din-rail |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | FCC, UL 508, DNV, GL, LR, ABS, NK, IP30 |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3af for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
