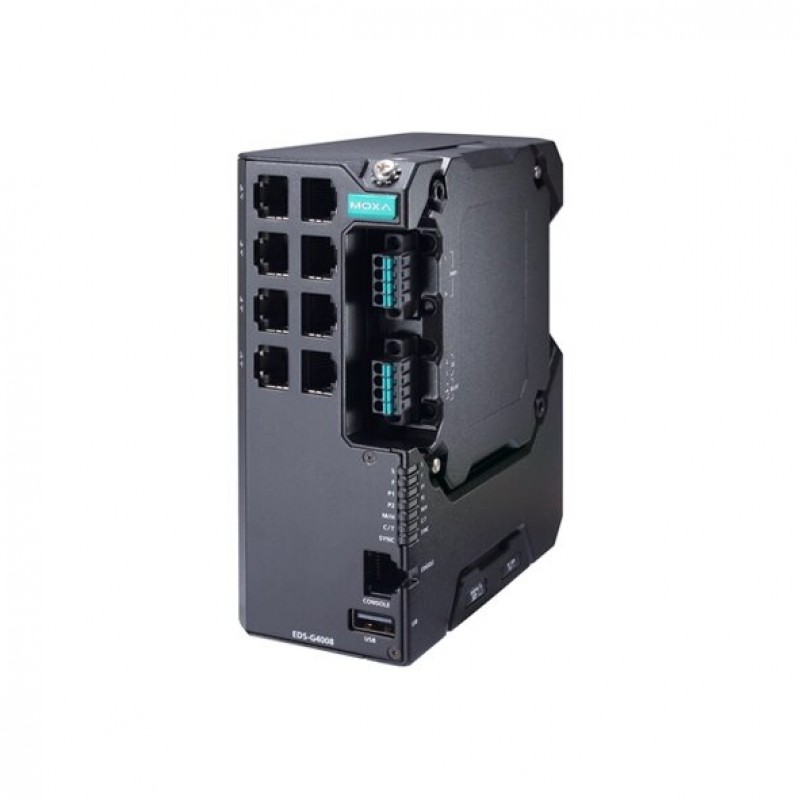

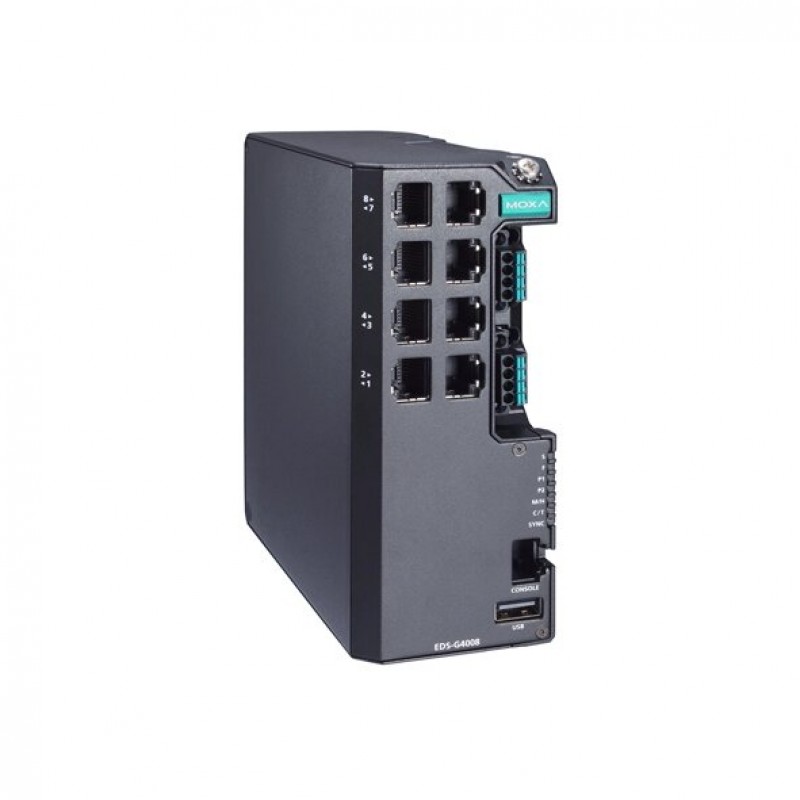

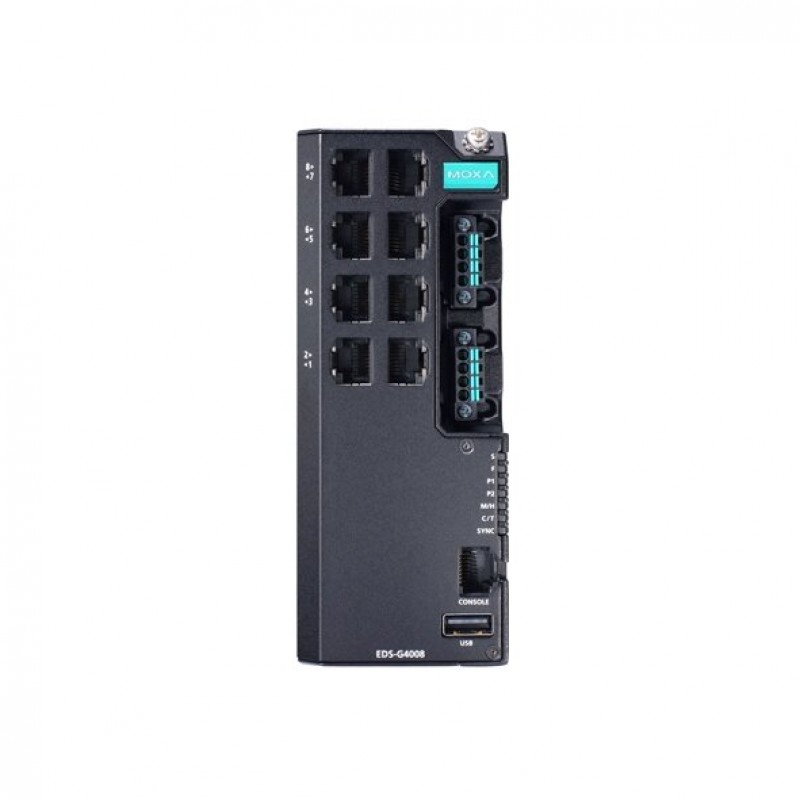

MOXA EDS-G4008-LV Managed Ethernet Switch
- 8 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 12/24/48 VDC Redundant dual power inputs
- Pre-installed PWR-100-LV Power Module
- DIN-rail and wall mounting
- IP40-rated Metal body design
- -10 to 60°C operating temperature
.png)
Description
The EDS-G4008 Series is equipped with 8 Gigabit Ethernet ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-G4008 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
The EDS-G4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
You can also find the EDS-G4008-LV-T, EDS-G4008-HV, and EDS-G4008-HV-T models in the DIN-Rail Ethernet Switches.
Easy World Automation offers the
easiest way to buy the MOXA EDS-G4008-LV Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 8 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port (8-pin RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Features and capabilities | |
| Backup | : ABC-02 and ABC-03 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | 8.84 W |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 1,098,085 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: DNV, ABS, NK, LR; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Railway: EN 50121-4; Traffic Control: NEMA TS2; Power Substation: IEC 61850-3, IEEE 1613 Class 1; Hazardous Locations: ATEX, IECEx, Class I Division 2; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 859.5 g (1.89 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, PROFINET IO Device, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
| Protocols and management standards | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
