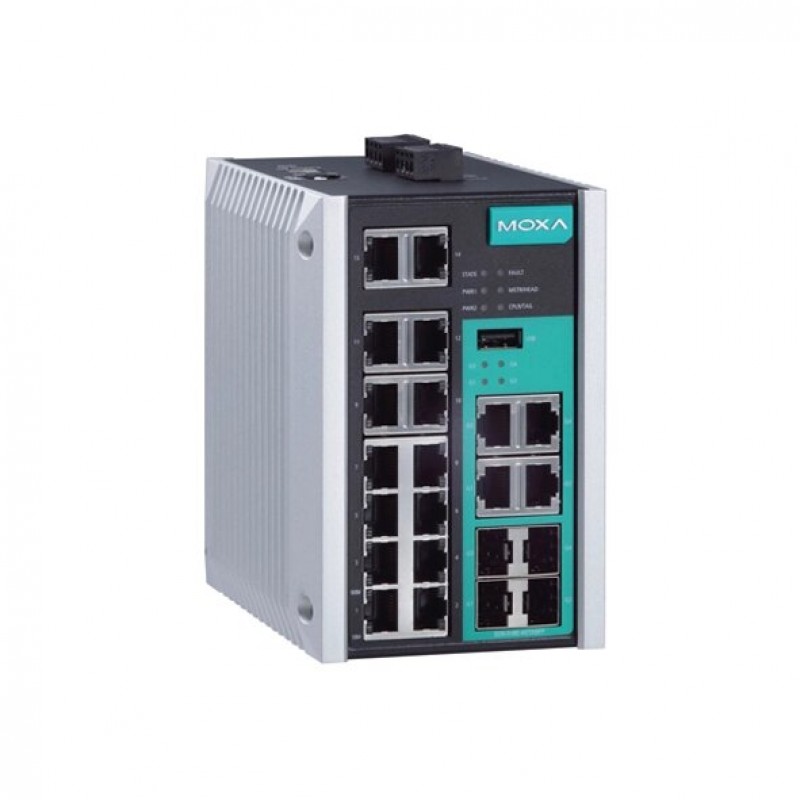

MOXA EDS-518E-4GTXSFP Managed Ethernet Switches
- 14 x 10/100BaseT(X) Ports (RJ45 connector)
- 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 12 to 24 VDC Redundant dual power inputs
- Din-rail and Wall mounting
- IP30-rated Metal body design
- -10 to 60°C operating temperature
.png)
Description
The EDS-518E standalone, compact 18-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 14 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-518E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the system reliability and availability of your network backbone. The EDS-518E also supports advanced management and security features. In addition, the EDS-518E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.
You can also find the EDS-518E-4GTXSFP-T, EDS-518E-MM-SC-4GTXSFP, EDS-518E-SS-SC-4GTXSFP, and EDS-518E-MM-ST-4GTXSFP models in the DIN-Rail Ethernet Switches.
Easy World Automation offers the
easiest way to buy the MOXA EDS-518E-4GTXSFP Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 18 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 14 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x RS-232 Console Port (Type B connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.37 A @ 24 V |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48/-48 VDC, redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 723,953 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 508; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Maritime: DNV-GL, LR, ABS, NK; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Traffic Control: NEMA TS2; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1,518 g (3.35 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, PROFINET IO Device, Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q VLAN, BPDU Guard, BPDU Filter, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
