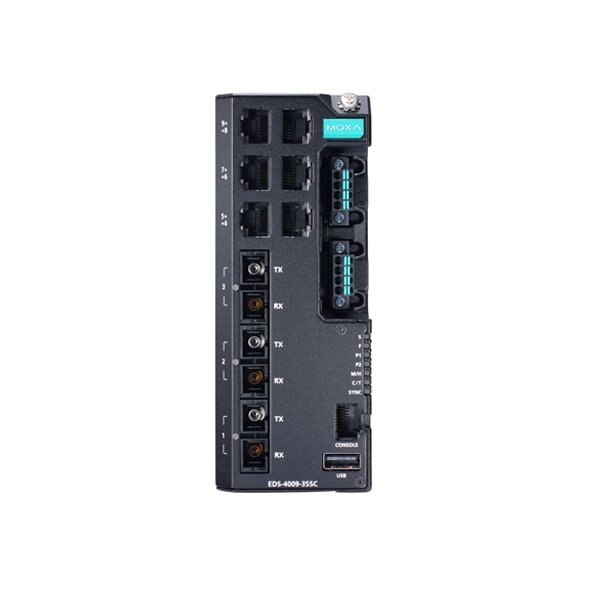

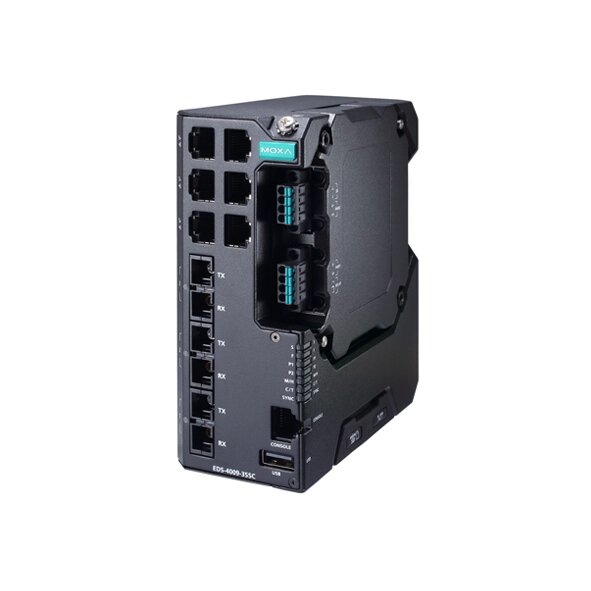

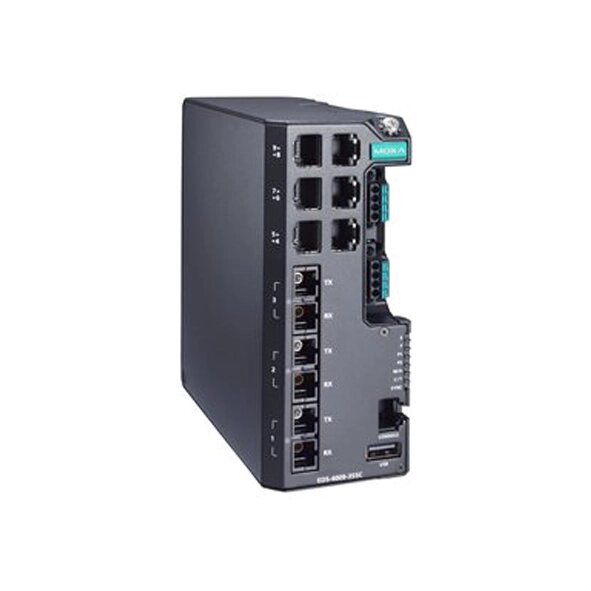

Name: MOXA EDS-4009-3SSC-LV Managed Ethernet Switch
Brand: MOXA
Availability: OutOfStock

MOXA EDS-4009-3SSC-LV Managed Ethernet Switch

6 x 10/100BaseT(X) Ports (RJ45 connector)
3 x 100BaseFX Ports (single-mode ST connector)
40 KM Typical data transmission distance on fiber
12/24/48 VDC Redundant dual power inputs
Pre-installed PWR-100-LV Power Module
DIN-rail and wall mounting
IP40-rated Metal body design
-10 to 60°C operating temperature

Brand: MOXA
Model: EDS-4009-3SSC-LV

0 reviews • Write a review

Datasheet

Operating Temperature (-10 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP40)
Vibration (IEC 60068-2-6)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Factory Automation
Railway Transportation
Marine
Power Utility
Road Transportation
Oil & Gas

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA EDS-4009-3MSC-HV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA EDS-4009-3MSC-HV-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA EDS-4009-3MSC-LV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA EDS-4009-3MSC-LV-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA EDS-4009-3MST-HV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA EDS-4009-3MST-HV-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA EDS-4009-3MST-LV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA EDS-4009-3MST-LV-T Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Switches , Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Road Transportation Products , Railway Transportation Products , Power Utility Products , Oil & Gas Products , Marine Products , Factory Automation Products , MOXA EDS-4009 Series

The EDS-4009 Series is a range of 9-port managed Fast Ethernet switches with the option for three 100M ST/SC fiber-optic ports. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4009 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.

You can also find the EDS-4009-3MSC-LV-T and EDS-4009-3MST-LV-T models in the DIN-Rail Ethernet Switches.

You can explore our wide range of products and enquire about the MOXA EDS-4009-3SSC-LV Managed Ethernet Switch for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

switch and hub : Interface
Number of ports	9 Ports
10/100Mb RJ45 (Megabit) Ports	Yes : 6 Ports
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	Yes : 3 SC Ports
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 1 x RS-232 Console Port (8-pin RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
switch and hub : Features and capabilities
Backup	Yes : ABC-02 and ABC-03
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
Power Input Plugin ( Redundant )	Yes
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Power Consumption	9.51 W
switch and hub : General
Fan / Fanless	Fanless
MTBF	972,841 hours
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Managed
Port Aggregation	Yes
switch and hub : Physical Characteristics
Dimensions	55 x 140 x 132 mm (2.17 x 5.51 x 5.20 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-10 to 60°C (14 to 140°F)
Operation Humidity	5% to %95 non-condensing
Standards and Certifications	Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: DNV, ABS, NK, LR; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Railway: EN 50121-4; Traffic Control: NEMA TS2; Power Substation: IEC 61850-3, IEEE 1613 Class 1; Hazardous Locations: ATEX, IECEx, Class I Division 2; IP40; Telcordia SR332
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	920 g (2.03 lb)
switch and hub : Standards and protocols
Protocols and work standards	EtherNet/IP, Modbus TCP, PROFINET IO Device, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Protocols and management standards	IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
