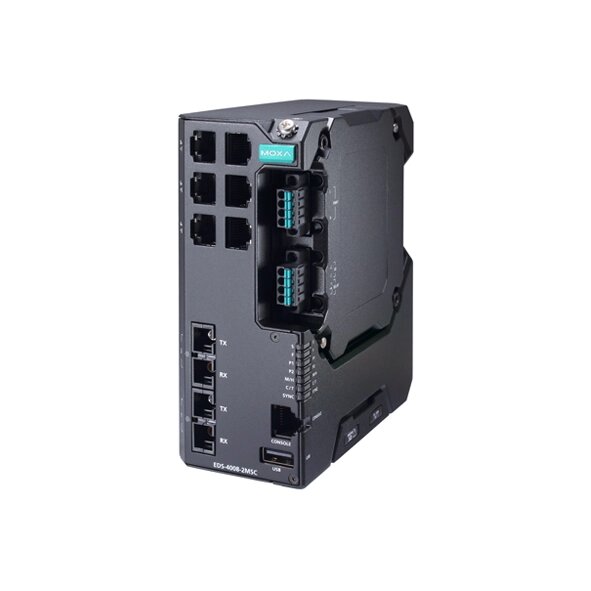

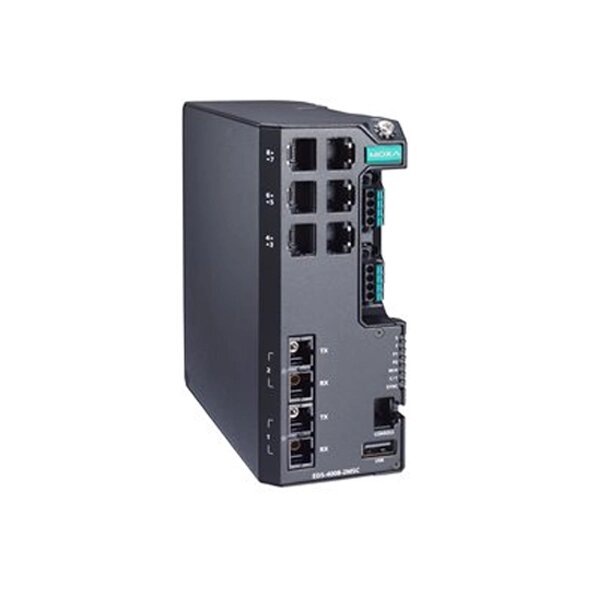

MOXA EDS-4008-2MSC-LV Managed Ethernet Switch

MOXA EDS-4008-2MSC-LV Managed Ethernet Switch
MOXA EDS-4008-2MSC-LV Managed Ethernet Switch
MOXA EDS-4008-2MSC-LV Managed Ethernet Switch
MOXA EDS-4008-2MSC-LV Managed Ethernet Switch
MOXA EDS-4008-2MSC-LV Managed Ethernet Switch
  • 6 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 100BaseFX Ports (multi-mode SC connector)
  • 5 KM Typical data transmission distance on fiber
  • 12/24/48 VDC Redundant dual power inputs
  • Pre-installed PWR-100-LV Power Module
  • DIN-rail and wall mounting
  • IP40-rated Metal body design
  • -10 to 60°C operating temperature
  • Brand: MOXA
  • Model: EDS-4008-2MSC-LV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Vibration (IEC 60068-2-6)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Factory Automation
  • Railway Transportation
  • Marine
  • Road Transportation
  • Power Utility
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA EDS-4008-2GT-2GS-HV Managed Ethernet Switch
Quickview
MOXA EDS-4008-2GT-2GS-HV Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EDS-4008-2GT-2GS-HV-T Managed Ethernet Switch
Quickview
MOXA EDS-4008-2GT-2GS-HV-T Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EDS-4008-2GT-2GS-LV Managed Ethernet Switch
Quickview
MOXA EDS-4008-2GT-2GS-LV Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EDS-4008-2GT-2GS-LV-T Managed Ethernet Switch
Quickview
MOXA EDS-4008-2GT-2GS-LV-T Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EDS-4008-2MSC-HV Managed Ethernet Switch
Quickview
MOXA EDS-4008-2MSC-HV Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EDS-4008-2MSC-HV-T Managed Ethernet Switch
Quickview
MOXA EDS-4008-2MSC-HV-T Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EDS-4008-2MSC-LV-T Managed Ethernet Switch
Quickview
MOXA EDS-4008-2MSC-LV-T Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA EDS-4008-2MST-HV Managed Ethernet Switch
Quickview
MOXA EDS-4008-2MST-HV Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Switches , Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Road Transportation Products , Railway Transportation Products , Power Utility Products , Oil & Gas Products , Marine Products , Factory Automation Products , MOXA EDS-4008 Series

The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.

The EDS-4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.


You can also find the EDS-4008-LV, EDS-4008-HV, and EDS-4008-4P-2GT-2GS-LVB-T models in the DIN-Rail Ethernet Switches.


Easy World Automation offers the easiest way to buy the MOXA EDS-4008-2MSC-LV Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 6 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 2 SC Ports
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x RS-232 Console Port (8-pin RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
switch and hub : Features and capabilities
Backup Yes : ABC-02 and ABC-03
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption 8.45 W
switch and hub : General
Fan / Fanless Fanless
MTBF 1,014,299 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 55 x 140 x 120 mm (2.2 x 5.51 x 4.72 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5% to %95 non-condensing
Standards and Certifications Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: DNV, ABS, NK, LR; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Railway: EN 50121-4; Traffic Control: NEMA TS2; Power Substation: IEC 61850-3, IEEE 1613 Class 1; Hazardous Locations: ATEX, IECEx, Class I Division 2; IP40; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 886 g (1.95 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Protocols and management standards IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
