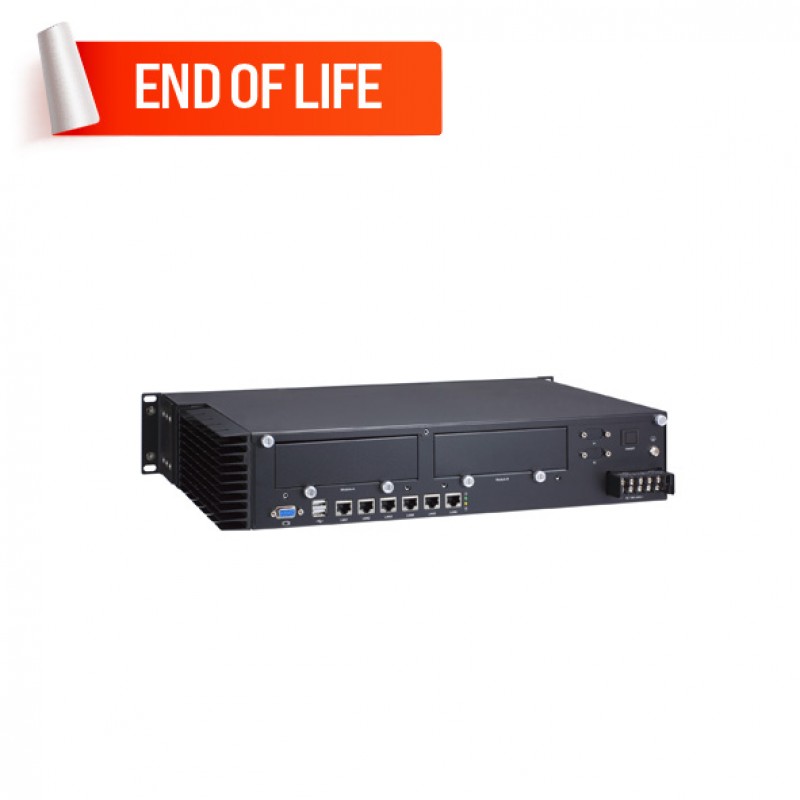

MOXA DA-682A-C7-DPP-LX Rackmount Industrial Computer
- CPU Intel® Core™ i7-3517UE
- Pre-installed Linux Debian 7 (32-bit)
- 6 x 10/100/1000 Mbps Ethernet ports
- Metal body design
- 19-inch rack mounting
- 100 to 240 VAC/VDC dual power inputs
- -25 to 60°C operating temperature
Description
The DA-682A-DPP computers have an x86 platform with VGA, 6 Gigabit Ethernet ports, CompactFlash, USB, and two PCI ports for DA Series expansion modules. The DA-682A-DPP comes with three different CPU options and basic models that allow system designers to install the DOM, and RAM, and operate the system according to their specific requirements.
IEC-61850-3 and IEEE 1613 compliance help ensure that the DA-682A-DPP can deliver stable and reliable system operations in power applications. Additional value and convenience are provided through a modular design with two independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including an 8-port RS-232/422/485 module, 8-port RS-422/485 module, 8-port 10/100 Mbps switch module, IRIG-B time synchronization card, and a universal PCI expansion module.
The DA-682A-DPP also complies with the IEC 60255 standards to enable the protection of electrical relays in a smart substation. IEC 60255 is one of the most widely used standards for testing relays and protection equipment and compliance ensures that the DA-682A-DPP will work reliably and seamlessly with IEDs (intelligent electronic devices) as a part of the robust substation automation system.
EN 50121-4 compliance confirms that the DA-682A-DPP can deliver stable and reliable system operations in rail applications. In station ISCS (Integrated Supervisory Control System) and wayside control and monitoring systems, a powerful front-end processor is needed for controlling the local SCADA and traction power relay house. The expandable serial interfaces and Gigabit Ethernet ports enable the integration of station subsystems, including AFC, PAS, PSD, and FAS, on a single platform. For wayside applications, you can also integrate disaster prevention, traction power, and signaling and safety systems to provide an integrated view of your smart rail setup.
End of Life Product - Replacement Available
Please note that the DA-682A-DPP Series has been phased out and replaced by the DA-682C Series.
Easy World Automation offers the easiest way to buy the MOXA DA-682A-C7-DPP-LX Rackmount Industrial Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i7-3517UE Processor (4M Cache, up to 2.80 GHz) |
| Supported OS | Linux Debian 7, Windows Embedded Standard 7 (WS7P) 32-bit, Windows Embedded Standard 7 (WS7E) 32-bit |
| OS (pre-installed) | Linux Debian 7 (32-bit) |
| System Memory | SODIMM DDR3/DDR3L slot x 1 (1GB Pre-installed) |
| Graphics Controller | Intel® HD Graphics |
| Storage Slot | 2.5-inch HDD/SSD slots x 2 |
| Interface | |
| LAN | 6 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | |
| Digital Input/Output Channels | |
| Serial Ports | |
| USB | 4 x USB 2.0 hosts, type-A connectors |
| Expansion Slot | 2 x PCI slots |
| Serial Communication Parameters | |
| Baudrate | - |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| LED Indicators | |
| System | Power x 1, Storage x 1, Programmable x 8 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 100 to 240 VDC, 100 to 240 VAC (Dual power inputs) |
| Input Current | - |
| Power Consumption | 30 W (max.) |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 360,807 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 315 x 90 mm (17.32 x 12.40 x 3.54 in) |
| Housing | Metal |
| Operating temperature | -25 to 60°C (-13 to 140°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV,IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Protection Relay: IEC 60255; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Shock: IEC 60870-2-2, IEC 61850-3 Edition 1.0; Vibration: IEC 61850-3, IEC 60870-2-2; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 6.5kg |
| Mounting | 19-inch rack mounting |
