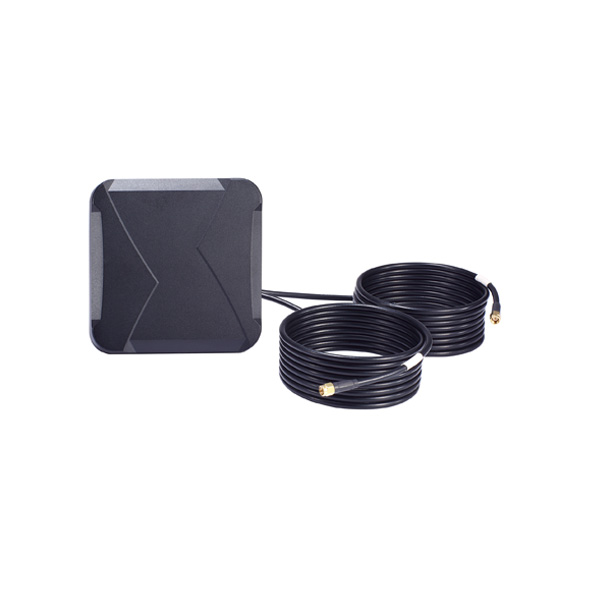

Name: MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna
Brand: MOXA
Availability: InStock

MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna

Frequency: 617 MHz (Min), 2690 MHz (Max)
Antenna Type: Panel
Antenna Gain: 1.55 dBi (Min), 7.10 dBi (Max)
Connector Type: SMA (male)
Plastic body design with IPx9K protection
Screw-mounting support
-40 to 85°C Operating temperature

Brand: MOXA
Model: MAT-5G-PA-SM-2-06-3m

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IPx9K)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA ANT-5G-ASM-02 Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA ANT-5G-ASM-03 Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA ANT-5G-ASM-07 Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA ANT-5G-OSM-03-1.5m Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA ANT-5G-OSM-03-1m Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA ANT-5G-OSM-03-2m Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA ANT-CQB-AHSM-00-3m Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA ANT-CQB-AHSM-03-3m Cellular Antenna

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: ACCESSORIES , Antennas , WLAN Antennas , Cellular Accessories , MOXA MAT-5G-PA-SM-3-06-3m Series

The MAT-5G-PA-SM-3-06-3m Series is a 3-in-1 panel antenna suitable for GSM, UMTS, LTE, 5G NR bands, GPS, GLONASS, and BDS systems. The antenna provides a gain of 6 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

You can also find the MAT-5G-PA-SM-3-06-3m model in the Antennas.

Enjoy the ease of online inquiries for the MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Antenna : Antenna Characteristics
Frequency	617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
Antenna Type	Panel
Antenna Gain	1.55 dBi @ 617 to 698 MHz (5G NR n71), 4.32 dBi @ 698 to 824 MHz (LTE 700), 5.18 dBi @ 824 to 960 MHz (GSM 850/900), 6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76), 6.80 dBi @ 1710 to 1880 MHz (DCS), 7.10 dBi @ 1850 to 1990 MHz (PCS), 7.10 dBi @ 1920 to 2170 MHz (UMTS1), 5.41 dBi @ 2300 to 2690 MHz (LTE 2600)
Connector	SMA (male)
Impedance	50 ohms
HPBW/Horizontal	-
HPBW/Vertical	-
Polarization	Linear, Vertical
Power Handling	-
V.S.W.R.	-
Antenna : Physical Characteristics
Dimensions	135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Length	-
Cable Length	3 m
Weight	-
Ambient Relative Humidity	5 to 95% (30°C, non-condensing)
Housing	Plastic
Installation	Screw mount
IP Rating	IPx9K

Datasheet
