MOXA ANT-WSB-PNF-12 WLAN Antenna

MOXA ANT-WSB-PNF-12 WLAN Antenna
MOXA ANT-WSB-PNF-12 WLAN Antenna
MOXA ANT-WSB-PNF-12 WLAN Antenna
MOXA ANT-WSB-PNF-12 WLAN Antenna
MOXA ANT-WSB-PNF-12 WLAN Antenna

  • Frequency: 2.4 to 2.5 GHz
  • Antenna gain: 12 dBi
  • Antenna Type: Directional, Panel
  • Connector Type: N-type (female)
  • IP65-rated PVC body design
  • Pole-mounting support
  • -40 to 80°C operating temperature

  • Brand: MOXA
  • Model: ANT-WSB-PNF-12
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 80°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP65)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA A-ADP-RJ458P-DB9F-ABC01 Wiring Kit
Quickview
MOXA A-ADP-RJ458P-DB9F-ABC01 Wiring Kit
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-NMNM-LL4-300 Wireless Antenna Cable
Quickview
MOXA A-CRF-NMNM-LL4-300 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-NMNM-LL4-600 Wireless Antenna Cable
Quickview
MOXA A-CRF-NMNM-LL4-600 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-NMNM-LL4-900 Wireless Antenna Cable
Quickview
MOXA A-CRF-NMNM-LL4-900 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-C2-300 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-C2-300 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-C2-500 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-C2-500 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-J1-60 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-J1-60 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-R4-150 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-R4-150 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Accessories , Antennas , Wireless Accessories , WLAN Antennas , Industrial Network Accessories , Wireless , WLAN , MOXA ANT-WSB-PNF-12 Series

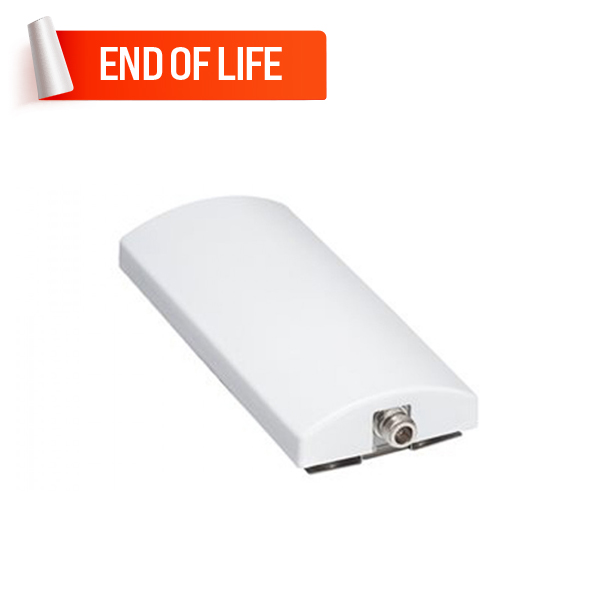

The ANT-WSB-PNF-12 is a lightweight compact dual-band high-gain directional panel antenna with a waterproof N-type connector. The antenna provides a gain of 12 dB at 2.4 GHz. The IP65-rated housing, pole-mounting support, and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.


End of Life Product - Replacement Available

Please note that the ANT-WSB-PNF-12 Series has been phased out, and replaced by the ANT-WSB-PNF-12-02 Series.


You can explore our wide range of products and enquire about the MOXA ANT-WSB-PNF-12 WLAN Antenna for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Antenna : Antenna Characteristics
Frequency 2.4 to 2.5 GHz
Antenna Type Directional, Panel
Antenna Gain 12 dBi
Connector N-type (female)
Impedance 50 ohms
HPBW/Horizontal 50°
HPBW/Vertical 30°
Polarization Linear
Power Handling 10 W (max.)
V.S.W.R. 1:1.5 max.
Antenna : Physical Characteristics
Dimensions 214 x 94 x 30 mm (8.43 x 3.7 x 1.18 in)
Operating Temperature -40 to 80°C (-40 to 176°F)
Storage Temperature -40 to 80°C (-40 to 176°F)
Length -
Cable Length -
Weight 560 g (1.23 lb), including antenna holder
Ambient Relative Humidity 5 to 95% (30°C, non-condensing)
Housing PVC
Installation Pole mount
IP Rating IP65
