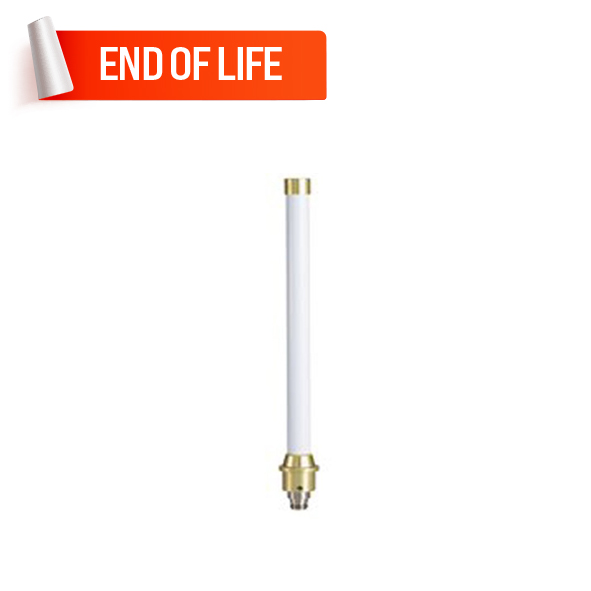

MOXA ANT-WSB-ANF-09 WLAN Antenna

MOXA ANT-WSB-ANF-09 WLAN Antenna
MOXA ANT-WSB-ANF-09 WLAN Antenna
MOXA ANT-WSB-ANF-09 WLAN Antenna
MOXA ANT-WSB-ANF-09 WLAN Antenna
MOXA ANT-WSB-ANF-09 WLAN Antenna

  • Frequency: 2.4 to 2.5 GHz
  • Antenna gain: 9 dBi
  • Antenna Type: Omni-directional
  • Connector Type: N-type (female)
  • IP65-rated Glass fiber body design
  • Pole-mounting support
  • -40 to 80°C operating temperature

  • Brand: MOXA
  • Model: ANT-WSB-ANF-09
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 80°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP65)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA A-ADP-RJ458P-DB9F-ABC01 Wiring Kit
Quickview
MOXA A-ADP-RJ458P-DB9F-ABC01 Wiring Kit
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-NMNM-LL4-300 Wireless Antenna Cable
Quickview
MOXA A-CRF-NMNM-LL4-300 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-NMNM-LL4-600 Wireless Antenna Cable
Quickview
MOXA A-CRF-NMNM-LL4-600 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-NMNM-LL4-900 Wireless Antenna Cable
Quickview
MOXA A-CRF-NMNM-LL4-900 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-C2-300 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-C2-300 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-C2-500 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-C2-500 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-J1-60 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-J1-60 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A-CRF-RFRM-R4-150 Wireless Antenna Cable
Quickview
MOXA A-CRF-RFRM-R4-150 Wireless Antenna Cable
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Accessories , Antennas , Wireless Accessories , WLAN Antennas , Industrial Network Accessories , Wireless , WLAN , MOXA ANT-WSB-ANF-09 Series

The ANT-WSB-ANF-09 is an omnidirectional lightweight compact dual-band high-gain indoor antenna with an SMA (male) connector and magnetic mount. The antenna provides a gain of 9 dBi and is designed to operate in temperatures from -40 to 80°C.


End of Life Product - Replacement Available

Please note that the ANT-WSB-ANF-09 Series has been phased out, and replaced by the ANT-WDB-ONF-0709 Series.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA ANT-WSB-ANF-09 WLAN Antenna through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman).

Antenna : Antenna Characteristics
Frequency 2.4 to 2.5 GHz
Antenna Type Omni-directional
Antenna Gain 9 dBi
Connector N-type (female)
Impedance 50 ohms
HPBW/Horizontal 360°
HPBW/Vertical 10°
Polarization Linear
Power Handling 15 W (max.)
V.S.W.R. 1:1.3 max.
Antenna : Physical Characteristics
Dimensions Diameter: 35 mm (1.38 in)
Operating Temperature -40 to 80°C (-40 to 176°F)
Storage Temperature -40 to 80°C (-40 to 176°F)
Length 420 mm (16.55 in)
Cable Length -
Weight 430 g (0.95 lb)
Ambient Relative Humidity 5 to 95% (30°C, non-condensing)
Housing Glass fiber
Installation Pole mount
IP Rating IP65
