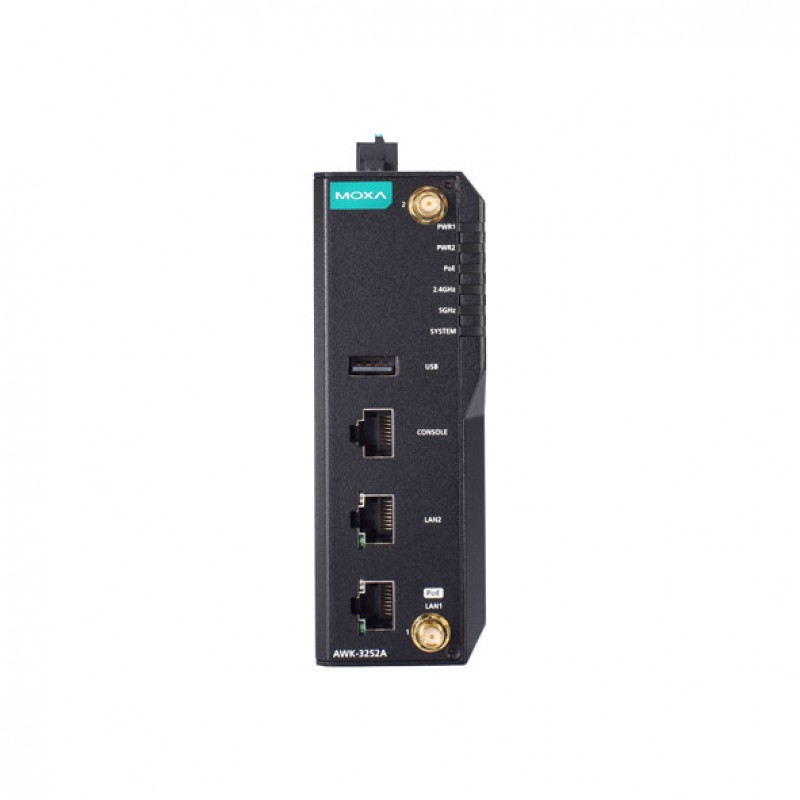

MOXA AWK-3252A-US-T Wireless AP/Bridge/Client

  • Supports US Frequency Bands
  • 1 x 10/100/1000BaseT(X) Port (RJ45 connector)
  • 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
  • DIN-rail and Wall mounting
  • 12 to 48 VDC Redundant dual inputs (48 VDC for PoE)
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

Description

The AWK-3252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-3252A complies with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3252A can be powered via PoE to facilitate flexible deployment. The AWK-3252A can operate concurrently on both the 2.4 and 5 GHz bands and is backward-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.


You can also find the AWK-3252A-US and AWK-3252A-UN-T models in the WLAN AP/Bridge/Client.


You can Buy the MOXA AWK-3252A-US-T Wireless AP/Bridge/Client via inquiring online at competitive prices in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interfaces
10/100/1000BaseT(X) Ports : 1 x RJ45 Port
Modulation Type -
Frequency Band 2.412 to 2.462 GHz (11 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels), 5.745 to 5.825 GHz (5 channels)
PoE Ports : 1 x Port (10/100/1000BaseT(X), RJ45 connector)
100BaseFX Ports
Wireless Security WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal
WLAN Antenna Connector 2 x RP-SMA female
Security HTTPS/SSL, RADIUS, SSH
WLAN Operation Mode Access point, Client, Client-Router, Master, Slave, Sniffer
WLAN Standards 2.4 GHz: 802.11b/g/n with 256 QAM support, 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
1000BaseSFP Slots
Transmission Rates 2.4 GHz: 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 400 Mbps, 5 GHz: 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps
10/100BaseT(X) Ports
Digital Inputs : 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console Port : 1 x RS-232 (8-pin RJ45 connector)
Serial Ports
M12 Connector
Power Requirement
Input Current 12-48 VDC, 2.2-0.5 A
Connector 1 removable 10-contact terminal block(s)
Input Voltage 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption 28.4 W (max.)
Reverse Polarity Protection
Physical Characteristics
Humidity 5 to 95% (non-condensing)
Dimensions Packaged 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)
Weight (PACKAGED) 700 g (1.5 lb)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Standards and Certifications EMC: EN 61000-6-2/-6-4, EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m; Safety: IEC 60950-1, IEC 62368-1, UL 62368-1; Hazardous Locations: ATEX, Class I Division 2, IECEx; Road Vehicles: E mark E1; Vibration: IEC 60068-2-6; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; IP30; Telcordia SR332
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
General
Management DHCP Server, DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog,TCP/IP, Telnet, UDP, VLAN, MXconfig
LED Indicators PWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2
MTBF 653,801 hrs
Time Management SNTP Client
