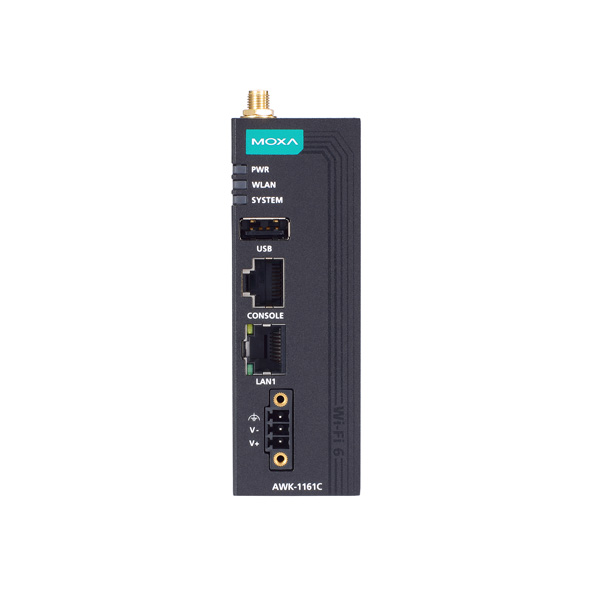

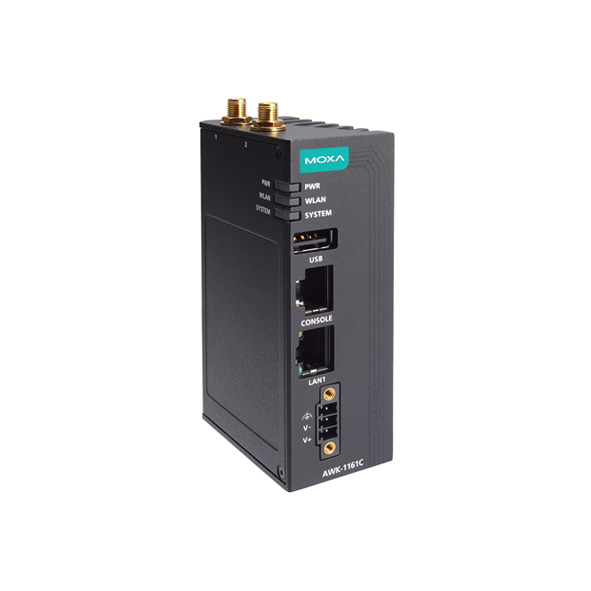

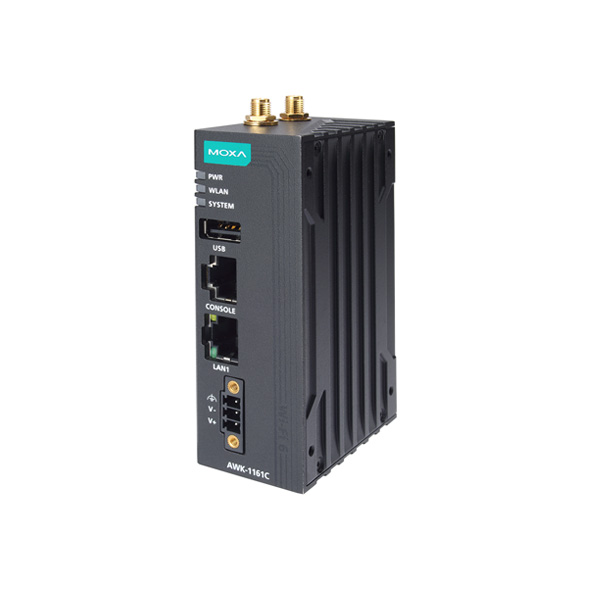

MOXA AWK-1161C-US Wireless Client

MOXA AWK-1161C-US Wireless Client
MOXA AWK-1161C-US Wireless Client
MOXA AWK-1161C-US Wireless Client
MOXA AWK-1161C-US Wireless Client
MOXA AWK-1161C-US Wireless Client
MOXA AWK-1161C-US Wireless Client
MOXA AWK-1161C-US Wireless Client

  • Supports US Frequency Bands
  • 1 x 10/100/1000BaseT(X) Port (RJ45 connector)
  • High-speed IEEE 802.11ax Wi-Fi
  • IP30-rated Metal body design
  • DIN-rail and Wall mounting
  • 9 to 30 VDC input power range
  • -25 to 60°C Operating temperature range

  • Brand: MOXA
  • Model: AWK-1161C-US
0 reviews • Write a review
Datasheet
  • Operating Temperature (-25 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Vibration (IEC 60068-2-6)
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA AWK-1121-US Wireless Client
Quickview
MOXA AWK-1121-US Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU Wireless AP/Client
Quickview
MOXA AWK-1131A-EU Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU-T Wireless AP/Client
Quickview
MOXA AWK-1131A-EU-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP Wireless AP/Client
Quickview
MOXA AWK-1131A-JP Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP-T Wireless AP/Client
Quickview
MOXA AWK-1131A-JP-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US Wireless AP/Client
Quickview
MOXA AWK-1131A-US Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US-T Wireless AP/Client
Quickview
MOXA AWK-1131A-US-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1137C-EU Wireless Client
Quickview
MOXA AWK-1137C-EU Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Wireless AP/Bridge/Client , Wireless AP/Bridge/Clients , WLAN AP/Bridge/Client , Wireless Access Points , Access Points , Wireless Communications , Road Transportation Products , MOXA AWK-1161C Series

The AWK-1161C Series industrial wireless client is designed to meet the growing need for efficient data transmissions in high-density deployment scenarios through IEEE 802.11ax (Wi-Fi 6) technology. The AWK-1161C is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1161C can operate on the 2.4 or 5 GHz bands and is backward compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.



You can also find the AWK-1161C-UN-T, AWK-1161C-UN, and AWK-1161C-US-T models in the WLAN AP/Bridge/Client.



Easy World Automation offers the easiest way to buy the MOXA AWK-1161C-US Wireless Client in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Access Point : Interfaces
10/100/1000BaseT(X) Ports Yes : 1 x RJ45 Port
Modulation Type -
Frequency Band 2.412 to 2.462 GHz (11 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels), 5.745 to 5.825 GHz (5 channels)
PoE Ports No
100BaseFX Ports No
Wireless Security WEP encryption (64-bit and 128-bit), WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal
WLAN Antenna Connector 2 x RP-SMA female
Security HTTPS/SSL, RADIUS, SSH, Certificate Management
WLAN Operation Mode Client, Client-Router, Slave, Sniffer
WLAN Standards 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz, 5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz
1000BaseSFP Slots No
Transmission Rates 2.4 GHz: Up to 573.5 Mbps, 5 GHz: Up to 1,201 Mbps
10/100BaseT(X) Ports No
Digital Inputs No
Console Port Yes : 1 x RS-232 (8-pin RJ45 connector)
Serial Ports No
M12 Connector No
Access Point : Power Requirement
Input Current 9 to 30 VDC, 1.57 to 0.47 A
Connector 1 removable 3-contact terminal block(s)
Input Voltage 9 to 30 VDC
Power Consumption 14 W (max.)
Reverse Polarity Protection No
Access Point : Physical Characteristics
Humidity 5 to 95% (non-condensing)
Dimensions Packaged 60 x 100 x 34.2 mm (2.36 x 3.94 x 1.35 in)
Weight (PACKAGED) 330 g (0.73 lb)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Standards and Certifications EMC: EN 61000-6-2/-6-4, EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m; Road Vehicles: E mark E1; Safety: IEC 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC; IP30; Telcordia SR332
Operating Temperature -25 to 60°C (-13 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Access Point : General
Management DHCP Server, DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig
LED Indicators PWR, WLAN, SYSTEM
MTBF 4,002,106 hrs
Time Management SNTP Client
