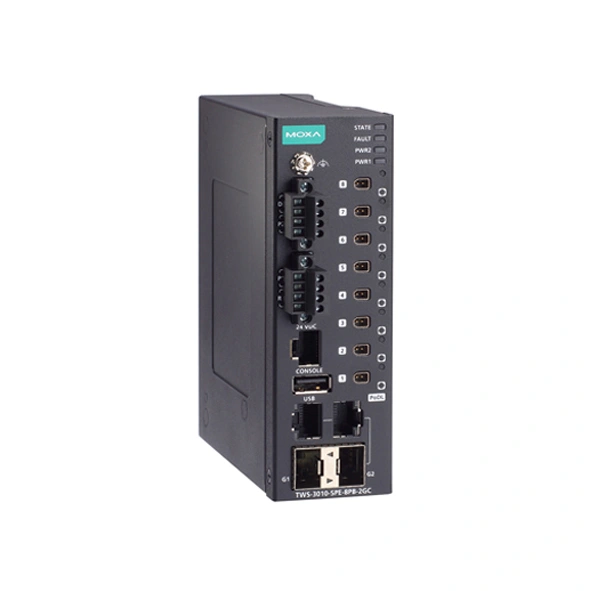

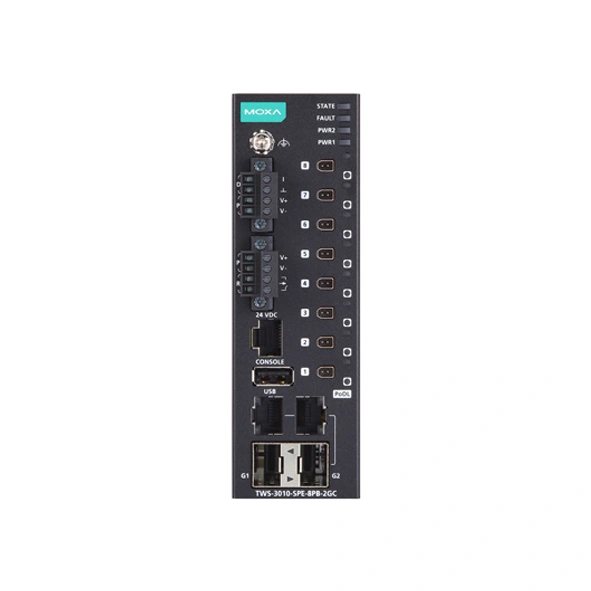

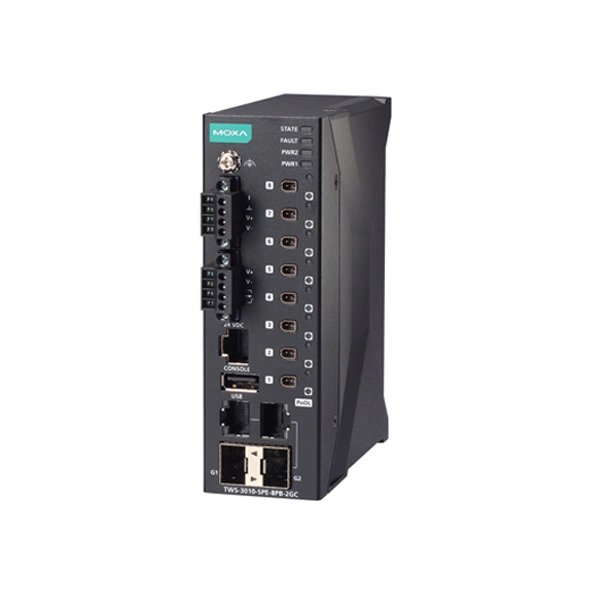

MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch

MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch
MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch
MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch
MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch
MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch
MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch
MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch
Key Features:
  • 8 x SPE Ports (10Base-T1L)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP)
  • DIN-rail and Wall mounting
  • 24 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature range
  • Brand: MOXA
  • Model: TWS-3010-SPE-8PB-2GC-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6, IEC 60068-2-64)
  • Freefall (ISTA 1A)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM i800 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM i800 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS940G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS940G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS950G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS950G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
Quickview
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The TWS-3010-SPE Series industrial two-wire Ethernet switch is designed to bring reliable Ethernet connectivity to the field.

With 10BASE-T1L technology and support for Power over Data Line (PoDL) Classes 10, 11, and 12, the switch extends Ethernet communication to field devices. It delivers both power and data over a single twisted pair at data rates up to 10 Mbps and distances up to 1 km, simplifying installation, lowering wiring costs, and enabling more flexible field deployment.

Diagnostic functions and port-mirroring make deployment and troubleshooting a breeze. Compact chassis and front-facing ports make installation and maintenance easy in tight control cabinets. Industrial Ethernet protocols, like PROFINET, allow for seamless integration with existing systems and provide scalability for future digitalization and IIoT expansion.

You can also find the TWS-3010-APL Series in the DIN-Rail Ethernet Switches.

Explore our extensive range of industrial automation products such as the MOXA TWS-3010-SPE-8PB-2GC-T Two-wire Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).  Submit your inquiry to enjoy on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 8 x SPE Ports (10Base-T1L), 2 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP), 1 x Alarm Contact Channels (1 A @ 24 VDC), 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
switch and hub : Features and capabilities
Backup Yes : ABC-02-USB, ABC-02-USB-T
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 24 VDC, 4.8 A (max.)
Power Input Plugin ( Redundant ) Yes
Input Voltage 24 VDC (Redundant dual inputs)
Operating Voltage 20 to 30 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 1,332,050 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 43 x 135 x 111 mm (1.69 x 5.32 x 4.37 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 61010-2-201, EN IEC 62368-1; EMC: EN 61000-6-2/-6-4; EMI: FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Level 3, IEC 61000-4-3 RS: Level 3, IEC 61000-4-4 EFT: Level 3, IEC 61000-4-5 Surge: Level 3, IEC 61000-4-6 CS: Level 3, IEC 61000-4-8 PFMF: Level 3; Vibration: IEC 60068-2-6, IEC 60068-2-64; Shock: IEC 60068-2-27; Freefall: ISTA 1A (with package); Telcordia (Bellcore), GB; IP30
Storage Temperature -40 to 85°C (-40 to 185°F)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, Link Aggregation, MRP, MSTP, RSTP, STP
Protocols and management standards LLDP, Back Pressure Flow Control, BOOTP, Port Mirroring, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q VLAN, BPDU Guard, BPDU Filter, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
