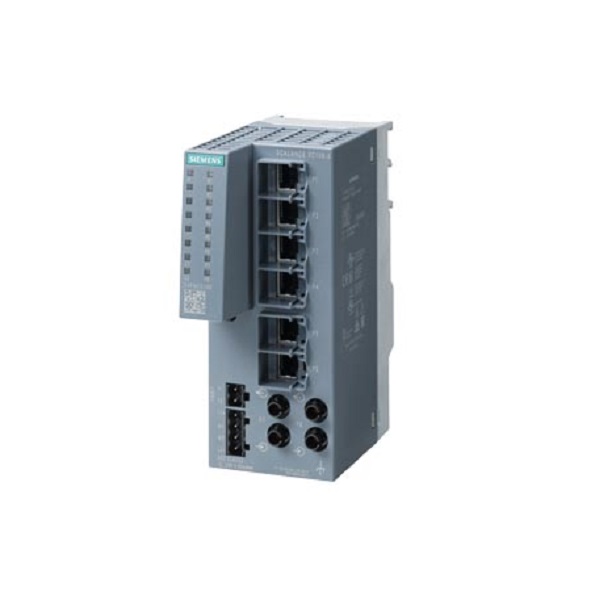

SIEMENS SCALANCE XC106-2 (ST) Unmanaged Ethernet Switch

SIEMENS SCALANCE XC106-2 (ST) Unmanaged Ethernet Switch
SIEMENS SCALANCE XC106-2 (ST) Unmanaged Ethernet Switch
  • 6 x 10/100Mbit/s RJ45 ports, 2 x 100Mbit/s Multimode BFOC ST ports
  • –40 to 70° C operating temperature
  • 24 VDC supply voltage
  • Brand: SIEMENS
  • Model: 6GK5106-2BB00-2AC2
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • IP protection (IP20)
  • Relative Humidity (max. 95% without condensation)
  • Marine
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM i800 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM i800 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS940G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS940G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS950G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS950G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
Quickview
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The unmanaged Industrial Ethernet switches of the SCALANCE XC-100 product line are optimized for installing Industrial Ethernet networks at transmission rates of 10/100 Mbps in line and star topologies for machine-level applications:


  • Connection to stations or networks according to the port type of the devices – electrical with RJ45 port or optical with ST/BFOC or SC port
  • Space-saving control cabinet installation on standard DIN rail, SIMATIC S7-300, S7-1500 DIN rail, or for wall mounting
  • Rugged station connections with industry-standard RJ45 plug-in connectors that offer additional strain and bending strain relief thanks to latching on the enclosure (retaining collar)
  • Redundant power supply
  • Clear diagnostics display on the device by means of LEDs (power, link status, data communication)
  • Error signaling contact with easy adjustment using the SET button

The switches of the SCALANCE XC-100 product line support the inexpensive construction of Industrial Ethernet line or star topologies with switching functions for machine level applications. They are designed for installation in the control cabinet. The devices are approved for ATEX Zone 2 and IECEx, which allow them to be used in hazardous areas. The SCALANCE XC108 also has E1 approval, making the products especially suitable for use in public transportation vehicles. Furthermore, the SCALANCE XC-100 product line features various approvals for shipbuilding applications.


You can place an order for the SIEMENS SCALANCE XC106-2 (ST) Unmanaged Ethernet Switch, which is applicable in the Factory Automation, Marine industries, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

switch and hub : Interface
Number of ports 6 ports
10/100Mb RJ45 (Megabit) Ports Yes : 4 ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 2 x Multimode BFOC ST ports
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
switch and hub : Features and capabilities
Backup -
switch and hub : LED Indicators
LED Per Port Yes
Power -
switch and hub : Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) -
Power Input Plugin ( Redundant ) -
switch and hub : General
Fan / Fanless Fanless
MTBF -
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 60x147x125mm
Housing Polycarbonate (PC-GF10)
Installation DIN rail, Wall mount
Operating Temperature -40 to 70 °C
Operation Humidity 95 % at 25 °C / without condensation / during operation /maximum
Standards and Certifications EN 60079-0:2012 + A11:2013, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X, IEC 6079-0:2011, IEC 6079-0-15:2010; UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T; CCC; aser protection class : LED Class 1; EN 61000-6-2, EN 61000-6-4; C-Tick; KC approval; EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1; ABS; BV; DNV GL; KRS; LRS; PRS; RINA
Storage Temperature -40 to 85 °C
Weight 0.85 kg
switch and hub : Standards and protocols
Protocols and work standards PRP, RNA
Protocols and management standards No
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter -
Power cable -
