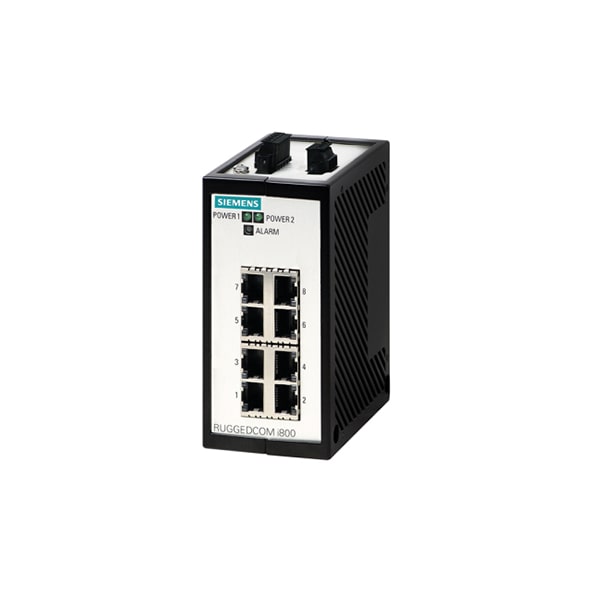

SIEMENS RUGGEDCOM i800 Ethernet Switches
- 8 x 10/100BASE-TX
- -20° C to + 60° C operating temperature (-40° C to + 85° C optional)
- Brand: SIEMENS
- Model: RUGGEDCOM i800
$0.00
Ex Tax: $0.00
$0.00
Ex Tax:$0.00
$0.00
Ex Tax:$0.00
$0.00
Ex Tax:$0.00
The flexibility of the i800 family allows the user to choose
from a variety of options: managed or unmanaged, regular or extended
temperature, fiber optic or copper interfaces, fast or Gigabit Ethernet.
And with up to nine Ethernet ports, the i800 is the perfect the choice for a wide variety of demanding environments found in process control applications.
Products at a glance

| switch and hub : Interface | |
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | Yes : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | No |
| 10/100Mb (Megabit) POE Ports | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| switch and hub : Features and capabilities | |
| Backup | - |
| switch and hub : LED Indicators | |
| LED Per Port | Yes |
| Power | Yes |
| switch and hub : Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 24 V |
| Power Input Plugin ( Redundant ) | No |
| switch and hub : General | |
| Fan / Fanless | fanless |
| MTBF | - |
| switch and hub : Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | Yes |
| switch and hub : Physical Characteristics | |
| Dimensions | 56.5 x 134.5 x 95.3 mm |
| Housing | Cast Aluminum Enclosure |
| Installation | 35 mm DIN rail mounting |
| Operating Temperature | -20 to 60 ° C |
| Operation Humidity | - |
| Standards and Certifications | certificate of suitability / CE marking, EMC : FCC Part 15 (Class A); EN55022 (CISPR22 Class A) standards; specifications; approvals / other, laser protection class : Complies with 21 CFR chapter 1; subchapter J |
| Storage Temperature | - |
| Weight | 1 kg |
| switch and hub : Standards and protocols | |
| Protocols and work standards | IEEE 802.3-10BaseT, IEEE 802.3u-100BaseTX, IEEE 802.3u-100BaseFX, IEEE 802.3ab-1000BaseT, IEEE 802.3z-1000BaseLX, IEEE 802.3ad-Link Aggregation, IEEE 802.3x-Flow Control, IEEE 802.1d-MAC Bridges, IEEE 802.1d-STP, IEEE 802.1p-class of service, IEEE 802.1Q-VLAN tagging, IEEE 802.1Q-2005 (formerly IEEE 802.1s) MSTP, IEEE 802.1w-RRST, IEEE 802.1x-port based Network Access Control |
| Protocols and management standards | Telnet, HTTP, HTTPS, TFTP, SNMP v1, SNMP v2, SNMP v2c, SNMP v3, IGMP (snooping/querier), DHCP client, DHCP Option 82, eRSTP, RADIUS, TACACS+, SSL |
| switch and hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | - |
| Power cable | - |
