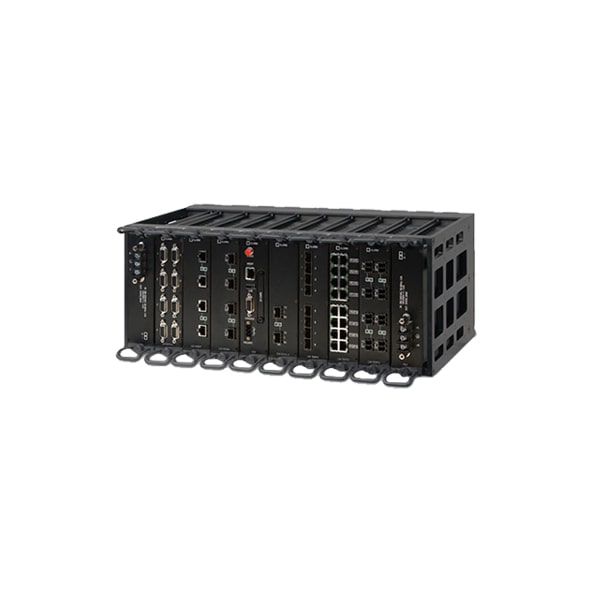

The RUGGEDCOM RX5000 integrated switch and router is a high-port-density ethernet routing and switching platform designed to operate in harsh environments with up to two 10 Gigabit uplinks and 24 Gigabit ports.
With an IP30 degree of protection, this integrated switch and router can withstand high levels of electromagnetic interference, radio frequency interference, and a wide temperature range of –40°C to +85°C.
You can place an order for the SIEMENS RUGGEDCOM RX5000 Ethernet Switch online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| switch and hub : Interface | |
| Number of ports | |
| 10/100Mb RJ45 (Megabit) Ports | Yes : Up to 96 ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Yes : 2 ports |
| 100Mb Fiber optic single mode (Megabit) Ports | - |
| 100Mb SFP Fiber optic (Megabit) Ports | - |
| 1000Mb SFP Fiber optic (Gigabit) Ports | - |
| 10/100Mb (Megabit) POE Ports | - |
| 10/100/1000Mb (Gigabit) POE Ports | - |
| Other ports | Yes : Up to 48 100FX optical ports |
| switch and hub : Features and capabilities | |
| Backup | - |
| switch and hub : LED Indicators | |
| LED Per Port | Yes |
| Power | Yes |
| switch and hub : Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 88 to 300 VDC |
| Power Input Plugin ( Redundant ) | - |
| switch and hub : General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| switch and hub : Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2,3 |
| Switch type | Managed |
| Port Aggregation | Yes |
| switch and hub : Physical Characteristics | |
| Dimensions | - |
| Housing | - |
| Installation | 19" rack |
| Operating Temperature | - |
| Operation Humidity | - |
| Standards and Certifications | EMC, CE, IEC 61850-3, laser protection class, CSA, safety, UL |
| Storage Temperature | - |
| Weight | Weight is depending on the built in modules |
| switch and hub : Standards and protocols | |
| Protocols and work standards | VLAN |
| Protocols and management standards | VLAN |
| switch and hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | - |
| Power cable | - |
