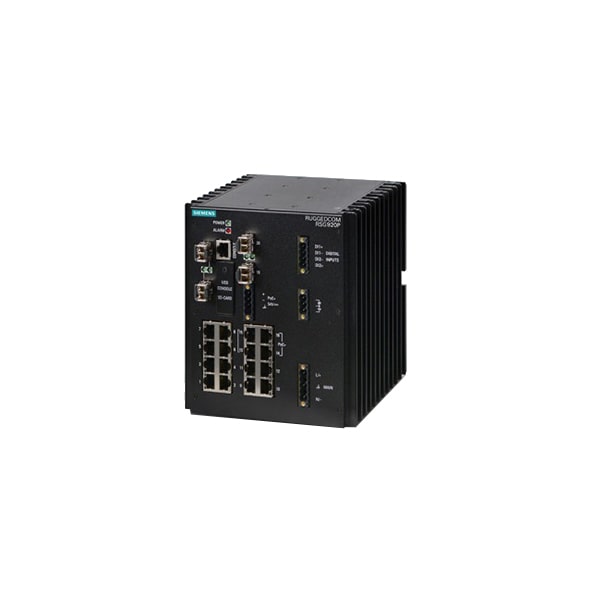

SIEMENS RUGGEDCOM RSG920P Ethernet Switches

SIEMENS RUGGEDCOM RSG920P Ethernet Switches
SIEMENS RUGGEDCOM RSG920P Ethernet Switches

  • 12 x 10/100/1000BASE-T + 4 x 100/1000BASE-X SFP + 4 x 10/100/1000BASE-T PoE (802.3af/802.3at)
  • Powers up to 4 PoE enabled devices when used with optional RPS1300 companion power supply

  • Brand: SIEMENS
  • Model: RUGGEDCOM RSG920P
0 reviews • Write a review
  • Factory Automation
  • Road Transportation
  • Railway Transportation
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM i800 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM i800 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS940G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS940G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS950G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS950G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
Quickview
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RST2228P Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RST2228P Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The RUGGEDCOM RSG920P is the solution to the growing need for Ethernet in roadside and wayside cabinets, without multiple devices. Reduce cabling costs and simplify camera, radio, and peripheral device connectivity with this rugged, high-density, compact form-factor Layer 2 switch. RUGGEDCOM RSG920P is equipped with Power-over-Ethernet (PoE), along with various other impressive features, for some very concrete benefits.

With 20 Gigabit Ethernet ports, the RUGGEDCOM RSG920P is suitable for applications that require high bandwidths and is ready to accommodate future network expansions. 4 SFP slots provide ultimate flexibility in uplink distances and bandwidth with support for Gigabit as well as Fast Ethernet fiber SFP. The small form factor of the RUGGEDCOM RSG920P allows deployment in space-limited cabinets and on DIN rails.

With a capability of 4 Power-over-Ethernet (PoE) interfaces supplying up to 120 W (30 W per port) of power, the RUGGEDCOM RSG920P can accommodate various PoE devices such as cameras, intercom devices, Wireless LAN Access Points, and Bluetooth sensors. The Smart Power Management for PoE gives higher priority to the most important devices in a network when power demand exceeds supply.


You can place an order for the SIEMENS RUGGEDCOM RSG920P Ethernet Switches, which is applicable in Factory Automation, Road Transportation, Railway Transportation, Oil & Gas industries, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

switch and hub : Interface
Number of ports 20 ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 12 ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 4 slots
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports Yes : 4 ports
Other ports Yes : 2 x VDSL2 uplink ports with terminal blocks
switch and hub : LED Indicators
LED Per Port Yes
Power Yes
switch and hub : Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 9 to 60 VDC, 98 to 300 VDC, 88 to 264 VAC,
Power Input Plugin ( Redundant ) -
switch and hub : General
Fan / Fanless Fanless
MTBF -
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 152 x 177 x 165.6mm
Housing Cast Aluminum Enclosure
Installation 35 mm DIN rail mounting, wall mounting
Operating Temperature -40 to 85° C
Operation Humidity -
Standards and Certifications CE, EMC, IEC 61850, laser protection class
Storage Humidity -
Storage Temperature -40 to 85° C
Weight 4.7 kg
switch and hub : Standards and protocols
Protocols and work standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x, IEEE 802.1d-MAC Bridges, IEEE 802.1d-STP, IEEE 802.1p-class of service, IEEE 802.1Q-VLAN tagging, IEEE 802.1Q-2005 (formerly IEEE 802.1s) MSTP, IEEE 802.1w-RRST, IEEE 802.1x-port based Network Access Control, RFC768-UDP, RFC783-TFTP, RFC791-IP, RFC792-ICMP, RFC793-TCP, RFC826-ARP, RFC854-Telnet, RFC894-IP over Ethernet, RFC1112-IGMPv1, RFC1519-CIDR, RFC1541-DHCP (client), RFC2068-HTTP, RFC2236-IGMPv2, RFC2284-EAP, RFC2475-Differentiated Service, RFC2865-RADIUS, RFC3414-SNMPv3-USM, RFC3415-SNMPv3-VACM
Protocols and management standards DHCP, STP, RSTP, MSTP, HSR, NTP, SNTP, Telnet, HTTP, HTTPS, TFTP, SFTP, GMRP, LLDP, IGMP, VLAN, GVRP
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter -
Power cable -
