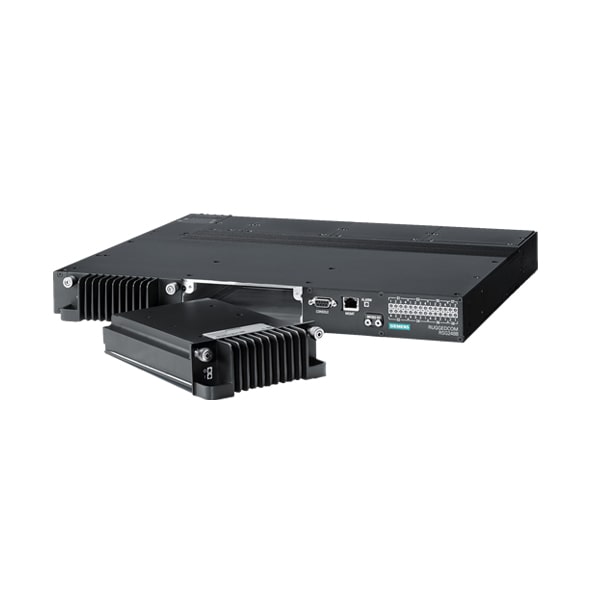

The RUGGEDCOM RSG2488 is a utility-grade, non-blocking Layer
2 switch with 28 Gigabit ports and hot-swappable dual-redundant power supplies.
Featuring an innovative design to reduce rack space
requirements cut sparing costs, and minimize time to repair, the RUGGEDCOM
RSG2488 eliminates routine maintenance and the need for separate timing
cabling.
Its modular flexibility provides up to 28 non-blocking ports
that can be configured as 10/100/1000TX copper, 100FX, or 1000SX fiber. A 1U
form factor and vertical loading design provides users with the flexibility and
simplicity needed to efficiently implement, maintain and evolve a broadband
local area network.
Running on the Rugged Operating System (ROS®), it also offers precision timing, timing conversion, universal power supply options as well as cybersecurity and management tools.
You can place an order for the SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| switch and hub : Interface | |
| Number of ports | 28 ports |
| 10/100Mb RJ45 (Megabit) Ports | No |
| 10/100/1000Mb RJ45 (Gigabit) Ports | No |
| 100Mb Fiber optic multi mode (Megabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | No |
| 10/100Mb (Megabit) POE Ports | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| Other ports | Yes : up to 28 non-blocking ports; configured as: 10/100/1000TX copper, 100FX or 1000SX fiber. Support six 4-port modules plus two 2-port modules Mixture of fiber optic or copper Gigabit ports with up to 28 Gig Ethernet ports |
| switch and hub : Software Features | |
| Management | CLI, web-based management, MIB support, RMON |
| switch and hub : LED Indicators | |
| LED Per Port | Yes |
| Power | Yes |
| switch and hub : Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 13 to 36 VDC, 38 to 72 VDC, 98 to 300 VDC, 85 to 264 VAC |
| Power Input Plugin ( Redundant ) | - |
| switch and hub : General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| switch and hub : Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | Yes |
| switch and hub : Physical Characteristics | |
| Dimensions | 442.4 x 44 x 376mm |
| Housing | Aluminum |
| Installation | 19-inch installation, 35 mm DIN rail mounting, wall mounting |
| Operating Temperature | -40 to 85° C |
| Operation Humidity | - |
| Standards and Certifications | interference immunity : IEC 61000-6-2, IEEE 1613 Class 2, IEC 61850-3, IEC 61800-3; CE; IEC 61850-3; IEEE 1588 v2-Precision Time Protocol |
| Storage Humidity | - |
| Storage Temperature | - |
| Weight | 8.6 kg |
| switch and hub : Standards and protocols | |
| Protocols and work standards | IEEE 802.3-10BaseT, IEEE 802.3u-100BaseTX, IEEE 802.3u-100BaseFX, IEEE 802.3x-Flow Control, IEEE 802.1d-MAC Bridges, IEEE 802.1d-STP, IEEE 802.1p-class of service, IEEE 802.1Q-VLAN tagging, IEEE 802.1w-RRST, IEEE 802.1x-port based Network Access Control, RFC768-UDP, RFC783-TFTP, RFC791-IP, RFC792-ICMP, RFC793-TCP, RFC826-ARP, RFC854-Telnet, RFC894-IP over Ethernet, RFC1112-IGMPv1, RFC1519-CIDR, RFC1541-DHCP (client), RFC2030-SNTP, RFC2068-HTTP, RFC2236-IGMPv2, RFC2284-EAP, RFC2475-Differentiated Service, RFC2865-RADIUS, RFC3414-SNMPv3-USM, RFC3415-SNMPv3-VACM |
| Protocols and management standards | Telnet, HTTP, HTTPS, TFTP, SFTP, SNMP v1, SNMP v2, SNMP v2c, SNMP v3, IGMP, DHCP, STP, RSTP, MSTP, eRSTP, SNTP client, SNTP server |
| switch and hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | - |
| Power cable | - |
