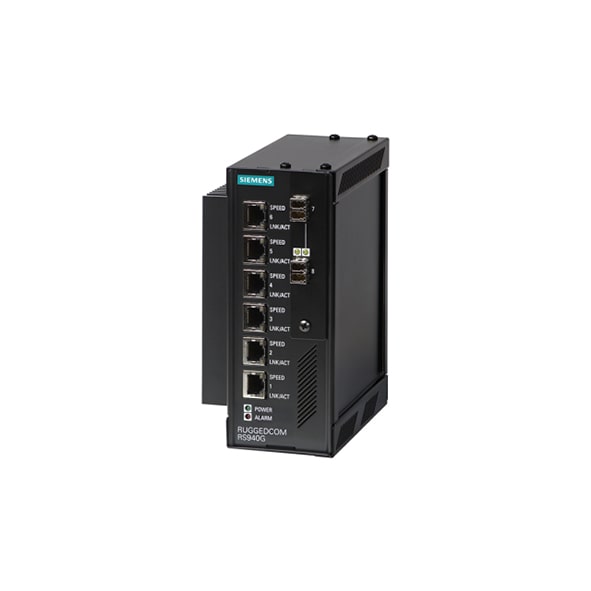

SIEMENS RUGGEDCOM RS940G Ethernet Switches

The RUGGEDCOM RS940G is a utility-grade, fully managed Ethernet switch with six or eight Gigabit Ethernet ports. Six 10/100/1000BaseTX triple-speed copper ports are standard. An additional two Gigabit fiber or copper ports can be added.

It is a cost-effective way of connecting a cluster of field devices to a Gigabit Ethernet backbone. The two fiber optic Gigabit Ethernet ports are capable of creating a fiber optic backbone with high noise immunity and long haul connectivity.


You can place an order for the SIEMENS RUGGEDCOM RS940G Ethernet Switches online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.


Products at a glance

switch and hub : Interface
Number of ports 8 ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 6 ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 2 gigabit fiber or copper ports
switch and hub : LED Indicators
LED Per Port Yes
Power Yes
switch and hub : Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 10 to 36 VDC, 36 to 72 VDC, 88 to 300 VDC, 85 to 264 VAC
Power Input Plugin ( Redundant ) -
switch and hub : General
Fan / Fanless Fanless
MTBF -
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 83.54 x 188 x 141.63mm
Housing 20 AWG galvanized steel enclosure
Installation Din-rail, Wall mount
Operating Temperature -40 to 85° C
Operation Humidity -
Standards and Certifications safety, CSA, UL, CE, EMC, IEC 61850-3, laser protection class
Storage Humidity -
Storage Temperature -
Weight 1.22 kg
switch and hub : Standards and protocols
Protocols and work standards IEEE 802.3-10BaseT, IEEE 802.3u-100BaseTX, IEEE 802.3u-100BaseFX, IEEE 802.3x-Flow Control, IEEE 802.1d-MAC Bridges, IEEE 802.1d-STP, IEEE 802.1p-class of service, IEEE 802.1Q-VLAN tagging, IEEE 802.1w-RRST, IEEE 802.1x-port based Network Access Control, RFC768-UDP, RFC783-TFTP, RFC791-IP, RFC792-ICMP, RFC793-TCP, RFC826-ARP, RFC854-Telnet, RFC894-IP over Ethernet, RFC1112-IGMPv1, RFC1519-CIDR, RFC1541-DHCP (client), RFC2030-SNTP, RFC2068-HTTP, RFC2236-IGMPv2, RFC2284-EAP, RFC2475-Differentiated Service, RFC2865-RADIUS, RFC3414-SNMPv3-USM, RFC3415-SNMPv3-VACM
Protocols and management standards Telnet, HTTP, HTTPS, TFTP, SFTP, SNMP v1, SNMP v2, SNMP v2c, SNMP v3, IGMP, DHCP, PPP, STP, RSTP, MSTP, eRSTP, SNTP client, SNTP server
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter -
Power cable -
