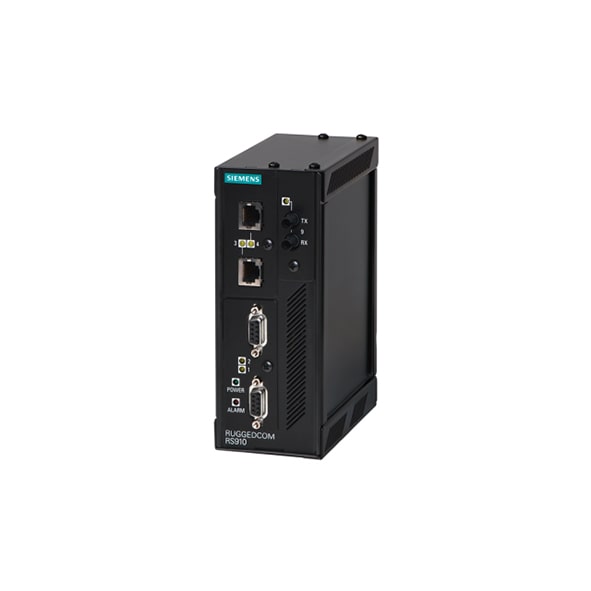

2-port serial sevice server with integrated 3-port managed Ethernet switch
A
utility-grade, serial device server with an integrated, fully managed Ethernet
switch, the RUGGEDCOM RS910 can connect multiple intelligent electronic devices
(IEDs) using different communication protocols.
Offering
immunity to electromagnetic interference (EMI) and heavy electrical surges, the
RUGGEDCOM RS910 meets and exceeds the number of standards – such as IEEE 1613,
IEC 61850-3, and IEC 61800-3.
With an
operating temperature range of –40 to +85 °C, this serial device server will
function in almost any location. It runs the Rugged Operating System (ROS®) and
offers simple plug-and-play operation.
This the product also comes equipped with a host of cybersecurity features including
multi-level user passwords, SSH/SSL128-bit encryption, and MAC-based port
security.
By interconnecting multiple types of intelligent electronic devices (IEDs) using different communication protocols, the RUGGEDCOM RS910 minimizes the number of devices you need, reduce overall system costs and extends the life of existing legacy IEDs.
You can place an order for the SIEMENS RUGGEDCOM RS910 Ethernet Switch and serial device server online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| serial-to-ethernet : Interface | |
| 10/100Mb RJ45 (Megabit) Ports | No |
| 10Mbps RJ-45 Ports | No |
| RS-232 Ports | No |
| RS-422/485 Ports | No |
| RS-232/422/485 Ports | Yes : 2 ports |
| Other ports | Yes : 3 Ethernet ports (copper or fiber). Multimode, Singlemode, Multiple connector types (ST, MTRJ, LC, SC) |
| serial-to-ethernet : Serial port specifications | |
| Serial connection type | 3-pole terminal block |
| Serial Communication Parameters | - |
| Flow Control | - |
| Data transfer speed ( Baudrate ) | - |
| Protection against electrostatic discharge | - |
| Electrical isolation | - |
| serial-to-ethernet : Communication details | |
| Wireless Standards | No |
| Maximum data transfer speed | No |
| Maximum direct range | No |
| serial-to-ethernet : General | |
| Management | CLI, RMON, web-based management, Telnet |
| Compatible operating systems | - |
| Fixed TTY Drivers | - |
| Linux Real TTY Drivers | - |
| MTBF | - |
| serial-to-ethernet : Power Requirements | |
| Power Consumption (Output Adapter) | 10 to 36 VDC, 36 to 59 VDC, 88 to 300 VDC, 85 to 265 VAC |
| serial-to-ethernet : Security | |
| Security | RADIUS client, SSL, TACACS+, RSA |
| Encryption | - |
| serial-to-ethernet : Ethernet Interface | |
| Network Protocols | DNP, Modbus RTU, Modbus TCP, DNP3, GVRP, HTTP, TFTP, SNMP v1, SNMP v2c, SNMP v3, eRSTP, RSTP, NTP |
| serial-to-ethernet : Features and capabilities | |
| Display | No |
| Keyboard | No |
| The automatic restart (reset) | - |
| Alarm feature | - |
| serial-to-ethernet : Physical Characteristics | |
| Dimensions | 65.13 x 116.59 x 99.06 mm |
| Safety | UL 60950-1, CSA C22.2 no. 60950-7 |
| EMC | FCC Part 15 (Class A), EN55022 (CISPR22 Class A) |
| EMI | EN 61000-6-4 (Class A) |
| EMS | - |
| Marine | No |
| Medical | No |
| LAN port Protection against magnetic fields | - |
| Housing | 20 AWG galvanized steel enclosure |
| Storage Temperature | -40 to 85 ° C |
| Altitude | - |
| Operation Humidity | 95 % |
