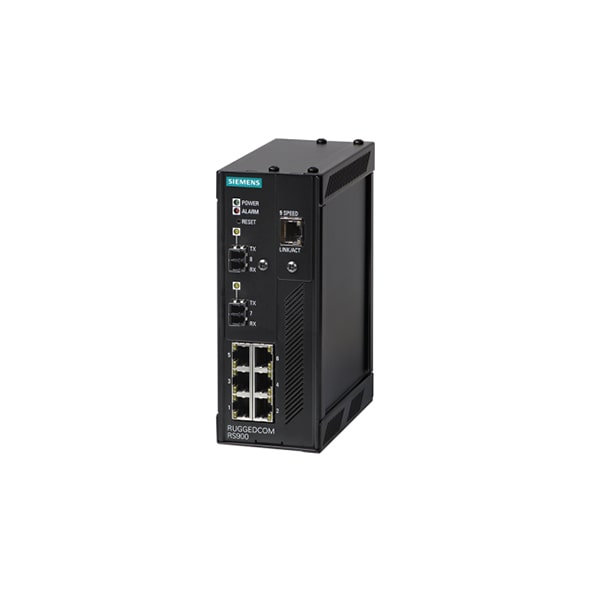

The RUGGEDCOM RS900 is a 9-port utility-grade, fully managed Ethernet switch designed to operate reliably in electrically harsh and climatically demanding environments.
It offers a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curbside traffic control cabinets.
An operating temperature range of –40 to +85°C (–40 to +185°F) and hazardous location certification (Class 1 Division 2) allows the RS900 to be placed in almost any location.
You can place an order for the SIEMENS RUGGEDCOM RS900 Ethernet Switches online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| switch and hub : Interface | |
| Number of ports | 9 ports |
| 10/100Mb RJ45 (Megabit) Ports | Yes : 6 ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | No |
| 100Mb Fiber optic multi mode (Megabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | No |
| 10/100Mb (Megabit) POE Ports | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| Other ports | Yes : 3 100BaseFX ports |
| switch and hub : LED Indicators | |
| LED Per Port | Yes |
| Power | Yes |
| switch and hub : Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 10 to 36 VDC, 36 to 59 VDC, 88 to 300 VDC, 85 to 265 VAC |
| Power Input Plugin ( Redundant ) | - |
| switch and hub : General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| switch and hub : Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | Yes |
| switch and hub : Physical Characteristics | |
| Dimensions | 66 x 188 x 127mm |
| Housing | 20 AWG galvanized steel enclosure |
| Installation | Din-rail, Wall mount |
| Operating Temperature | -40 to 85° C |
| Operation Humidity | - |
| Standards and Certifications | safety, CSA, UL, CE, EMC, IEC 61850-3, laser protection class |
| Storage Humidity | - |
| Storage Temperature | - |
| Weight | 1.22 kg |
| switch and hub : Standards and protocols | |
| Protocols and work standards | IEEE 802.3-10BaseT, IEEE 802.3u-100BaseTX, IEEE 802.3u-100BaseFX, IEEE 802.3x-Flow Control, IEEE 802.1d-MAC Bridges, IEEE 802.1d-STP, IEEE 802.1p-class of service, IEEE 802.1Q-VLAN tagging, IEEE 802.1w-RRST, IEEE 802.1x-port based Network Access Control, RFC768-UDP, RFC783-TFTP, RFC791-IP, RFC792-ICMP, RFC793-TCP, RFC826-ARP, RFC854-Telnet, RFC894-IP over Ethernet, RFC1112-IGMPv1, RFC1519-CIDR, RFC1541-DHCP (client), RFC2030-SNTP, RFC2068-HTTP, RFC2236-IGMPv2, RFC2284-EAP, RFC2475-Differentiated Service, RFC2865-RADIUS, RFC3414-SNMPv3-USM, RFC3415-SNMPv3-VACM |
| Protocols and management standards | Telnet, HTTP, HTTPS, TFTP, SFTP, SNMP v1, SNMP v2, SNMP v2c, SNMP v3, IGMP, DHCP, STP, RSTP, MSTP, eRSTP, SNTP client, SNTP server |
| switch and hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | No |
| Power cable | No |
