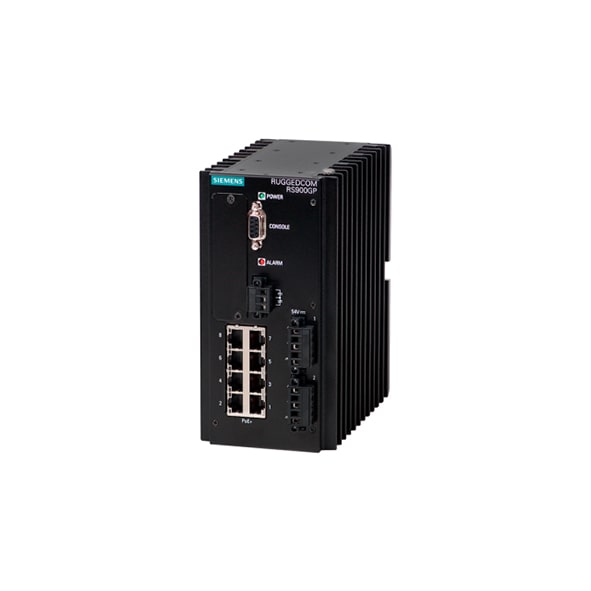

SIEMENS RUGGEDCOM RS900GP Ethernet Switches

The RUGGEDCOM RS900GP is a 10-port utility-grade, fully managed Ethernet switch which has dual fiber optic or copper Gigabit Ethernet ports and eight fast Ethernet copper ports, each capable of supplying high power 802.3at compliant power over Ethernet.

It offers a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found in electric utility substations, factory floors, and traffic control cabinets.

The two fiber optic Gigabit Ethernet ports are capable of creating a fiber optic backbone with high noise immunity and long haul connectivity.


You can place an order for the SIEMENS RUGGEDCOM RS900GP Ethernet Switches online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.


Products at a glance

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 8 ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : Up to 2 Fiber Optical Gigabit Ethernet Ports (100/1000BaseX) / Up to 2 10/100/1000 BaseTX Multiple fiber connector types (LC, SC,ST, SFP)
switch and hub : LED Indicators
LED Per Port Yes
Power Yes
switch and hub : Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 45 to 57 VDC
Power Input Plugin ( Redundant ) -
switch and hub : General
Fan / Fanless Fanless
MTBF -
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 90 x 176.53 x 154.432 mm
Housing Cast Aluminum Enclosure
Installation Din-rail, Wall mount
Operating Temperature -40 to 85° C
Operation Humidity -
Standards and Certifications safety, CSA, UL, CE, EMC, IEC 61850-3, laser protection class
Storage Humidity -
Storage Temperature -
Weight 2.3 kg
switch and hub : Standards and protocols
Protocols and work standards IEEE 802.3-10BaseT, IEEE 802.3u-100BaseTX, IEEE 802.3u-100BaseFX, IEEE 802.3x-Flow Control, IEEE 802.1d-MAC Bridges, IEEE 802.1d-STP, IEEE 802.1p-class of service, IEEE 802.1Q-VLAN tagging, IEEE 802.1w-RRST, IEEE 802.1x-port based Network Access Control, RFC768-UDP, RFC783-TFTP, RFC791-IP, RFC792-ICMP, RFC793-TCP, RFC826-ARP, RFC854-Telnet, RFC894-IP over Ethernet, RFC1112-IGMPv1, RFC1519-CIDR, RFC1541-DHCP (client), RFC2030-SNTP, RFC2068-HTTP, RFC2236-IGMPv2
Protocols and management standards Telnet, HTTP, HTTPS, TFTP, SFTP, SNMP v1, SNMP v2, SNMP v2c, SNMP v3, IGMP, DHCP, PPP, STP, RSTP, MSTP, eRSTP, SNTP client, SNTP server
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter -
Power cable -
