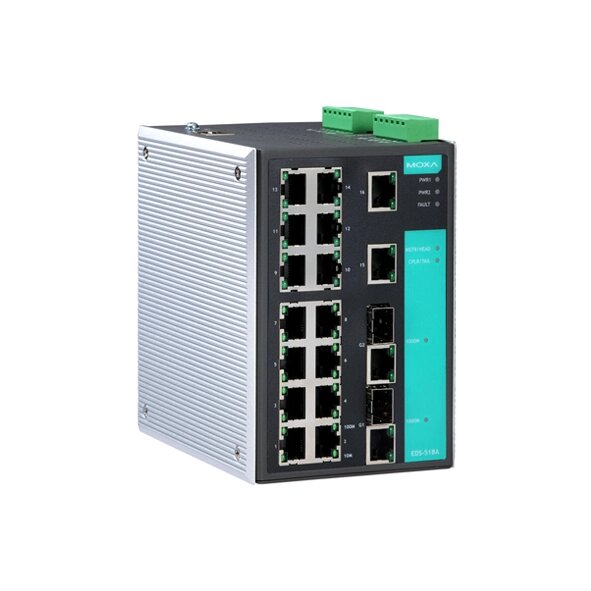

MOXA EDS-518A Managed Ethernet Switches

MOXA EDS-518A Managed Ethernet Switches
MOXA EDS-518A Managed Ethernet Switches
MOXA EDS-518A Managed Ethernet Switches
MOXA EDS-518A Managed Ethernet Switches
MOXA EDS-518A Managed Ethernet Switches
  • 16 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP)
  • 24 VDC Redundant dual power inputs
  • Din-rail and Wall mounting
  • IP30-rated Metal body design

  • 0 to 60°C operating temperature

  • Brand: MOXA
  • Model: EDS-518A
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (0 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Freefall (IEC 60068-2-31)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM i800 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM i800 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS940G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS940G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS950G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS950G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
Quickview
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Switches , Industrial Ethernet Switches , Industrial Data Communications , DIN-Rail Ethernet Switches , Oil & Gas Products , Marine Products , Factory Automation Products , MOXA EDS-518A Series

The EDS-518A standalone 18-port managed Ethernet switches provide 2 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The Ethernet redundancy technologies Turbo Ring and Turbo Chain (recovery time < 20 ms) increase the reliability and speed of your network backbone. The EDS-518A switches also support advanced management and security features.


You can also find the EDS-518A-MM-SC, EDS-518A-SS-SC, EDS-518A-MM-ST, and EDS-518A-T models in the DIN-Rail Ethernet Switches.


Inquire about the MOXA EDS-518A Managed Ethernet Switches, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 18 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 16 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 2 x Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP), 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x RS-232 Console Port (10-pin RJ45 connector)
switch and hub : Features and capabilities
Backup Yes : ABC-01
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.44 A @ 24 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 24 VDC
Operating Voltage 12 to 45 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 250,966 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: EN 62368-1, UL 60950-1, UL 508; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: DNV, NK, LR; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1630 g (3.60 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP, 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
