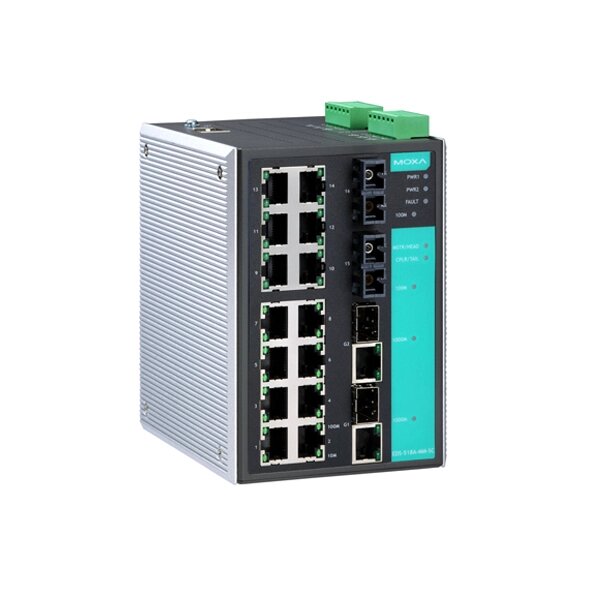

Name: MOXA EDS-518A-MM-SC-T Managed Ethernet Switches
Brand: MOXA
Availability: OutOfStock

MOXA EDS-518A-MM-SC-T Managed Ethernet Switches

14 x 10/100BaseT(X) Ports (RJ45 connector)
2 x 100BaseFX Ports (multi-mode SC connector)
2 x Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP)
5 KM Typical data transmission distance on fiber
24 VDC Redundant dual power inputs
Din-rail and Wall mounting
IP30-rated Metal body design
-40 to 75°C operating temperature

Brand: MOXA
Model: EDS-518A-MM-SC-T

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)
IP protection (IP30)
Freefall (IEC 60068-2-31)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Oil & Gas
Factory Automation
Marine

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

SIEMENS RUGGEDCOM i800 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900GP Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS940G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS950G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG920P Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Switches , Industrial Ethernet Switches , Industrial Data Communications , DIN-Rail Ethernet Switches , Oil & Gas Products , Marine Products , Factory Automation Products , MOXA EDS-518A Series

The EDS-518A standalone 18-port managed Ethernet switches provide 2 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The Ethernet redundancy technologies Turbo Ring and Turbo Chain (recovery time < 20 ms) increase the reliability and speed of your network backbone. The EDS-518A switches also support advanced management and security features.

You can also find the EDS-518A-MM-SC, EDS-518A-SS-SC, EDS-518A-MM-ST, and EDS-518A-T models in the DIN-Rail Ethernet Switches.

Experience the convenient way to purchase the MOXA EDS-518A-MM-SC-T Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

switch and hub : Interface
Number of ports	18 Ports
10/100Mb RJ45 (Megabit) Ports	Yes : 14 Ports
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	Yes : 2 SC Ports
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 2 x Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP), 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x RS-232 Console Port (10-pin RJ45 connector)
switch and hub : Features and capabilities
Backup	Yes : ABC-01
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	0.52 A @ 24 VDC
Power Input Plugin ( Redundant )	Yes
Input Voltage	24 VDC
Operating Voltage	12 to 45 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	250,966 hrs
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Managed
Port Aggregation	Yes
switch and hub : Physical Characteristics
Dimensions	94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: EN 62368-1, UL 60950-1, UL 508; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: DNV, NK, LR; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	1630 g (3.60 lb)
switch and hub : Standards and protocols
Protocols and work standards	EtherNet/IP, Modbus TCP, STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards	IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP, 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
