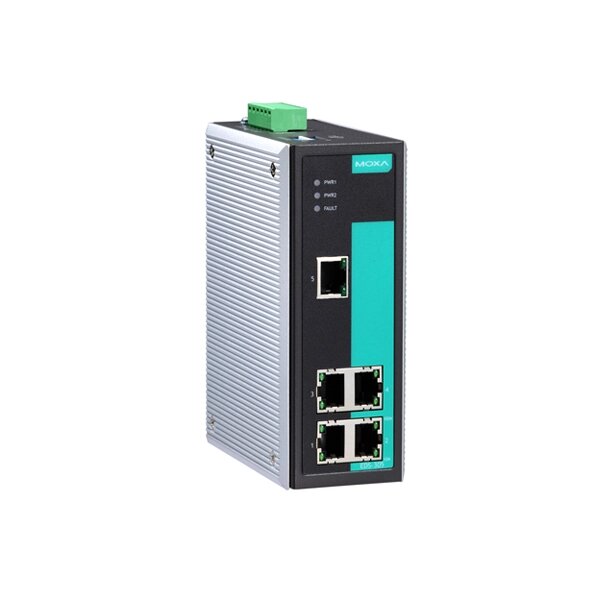

Name: MOXA EDS-305 Unmanaged Ethernet Switches
Brand: MOXA
Availability: OutOfStock

MOXA EDS-305 Unmanaged Ethernet Switches

5 x 10/100Mbps T(x) ports (RJ45 connector)
DIN-rail and Wall mounting
IP30-rated metal housing
24 VDC Redundant dual power inputs
0 to 60°C operating temperature

Brand: MOXA
Model: EDS-305

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
IP protection (IP30)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Oil & Gas
Factory Automation
Marine

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

SIEMENS RUGGEDCOM i800 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900GP Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS940G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS950G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG920P Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Factory Automation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-305 Series

The EDS-305 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 5-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards. The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of 0 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-305 switches can be installed easily on a DIN rail or in a distribution box.

You can also find the EDS-305-M-SC, EDS-305-M-ST, EDS-305-S-SC, and EDS-305-T models in the DIN-Rail Ethernet Switches.

You can explore our range of products and enquire about the MOXA EDS-305 Unmanaged Ethernet Switches for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

switch and hub : Interface
Number of ports	5 Ports
10/100Mb RJ45 (Megabit) Ports	Yes : 5 Ports
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	0.11 A @ 24 VDC
Power Input Plugin ( Redundant )	Yes
Input Voltage	24 VDC
Operating Voltage	12 to 48 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	422,742 hrs
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	UnManaged
Port Aggregation	No
switch and hub : Physical Characteristics
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Hazardous Locations: ATEX, Class I Division 2; EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 55032/24; Vibration: IEC 60068-2-6; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: DNV; IP30; MIL-HDBK-217F
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	790 g (1.75 lb)
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No

Datasheet User Guide
