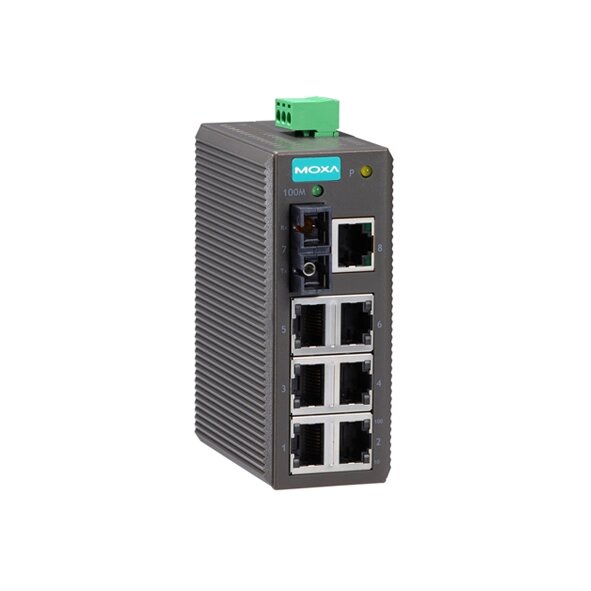

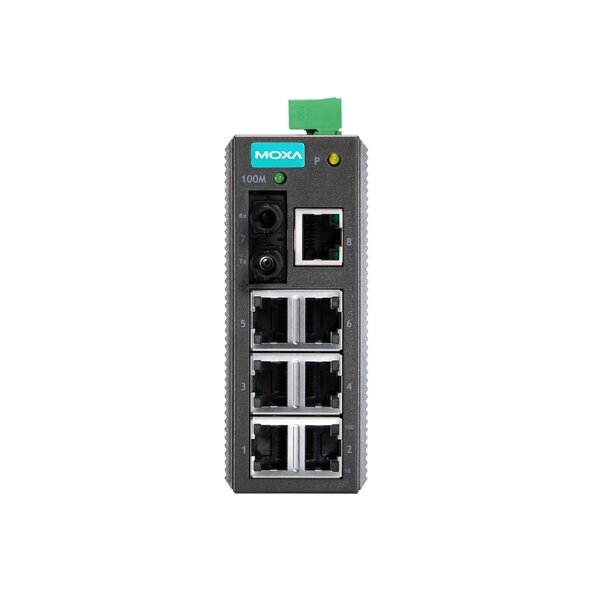

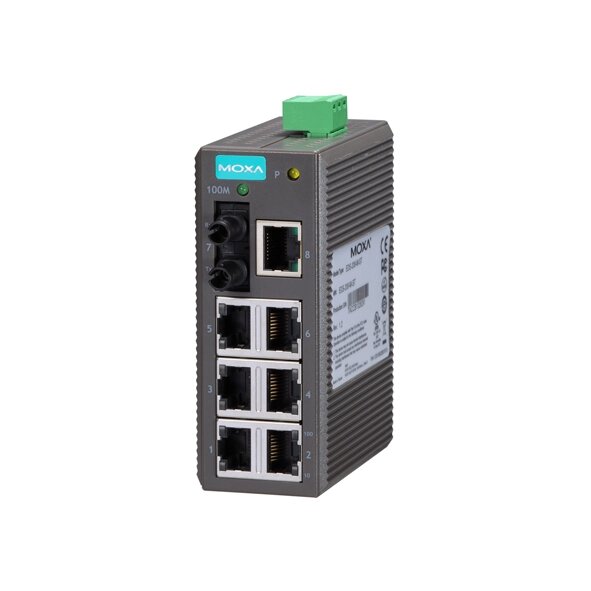

MOXA EDS-208-M-SC Unmanaged Ethernet Switches

MOXA EDS-208-M-SC Unmanaged Ethernet Switches
MOXA EDS-208-M-SC Unmanaged Ethernet Switches
MOXA EDS-208-M-SC Unmanaged Ethernet Switches
MOXA EDS-208-M-SC Unmanaged Ethernet Switches
MOXA EDS-208-M-SC Unmanaged Ethernet Switches
MOXA EDS-208-M-SC Unmanaged Ethernet Switches
MOXA EDS-208-M-SC Unmanaged Ethernet Switches
  • 7 x 10/100Mbps T(x) ports
  • 1 x 100BaseFX port (Multi-mode SC)
  • IEEE802.3/802.3u/802.3x support
  • 5 KM Data transmission typical distance on fiber
  • DIN-rail mounting ability
  • IP30-rated plastic housing
  • 12 to 48 VDC input power range
  • -10 to 60°C operating temperature
  • Brand: MOXA
  • Model: EDS-208-M-SC
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Freefall (IEC 60068-2-31)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM i800 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM i800 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900 Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900 Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS900GP Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS940G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS940G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RS950G Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RS950G Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
Quickview
SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
Quickview
SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Industrial Data Communications , Switches , MOXA EDS-208 Series

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.


You can also find the EDS-208 and EDS-208-M-ST models in the DIN-Rail Ethernet Switches.


Easy World Automation offers the easiest way to buy the MOXA EDS-208-M-SC Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 Port (SC connector)
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports No
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.1 A @ 24 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 3,562,556 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
Housing Plastic
Installation DIN-rail mounting
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508, UL 60950-1, EN 62368-1 (LVD); EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-31; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 170 g (0.38 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
