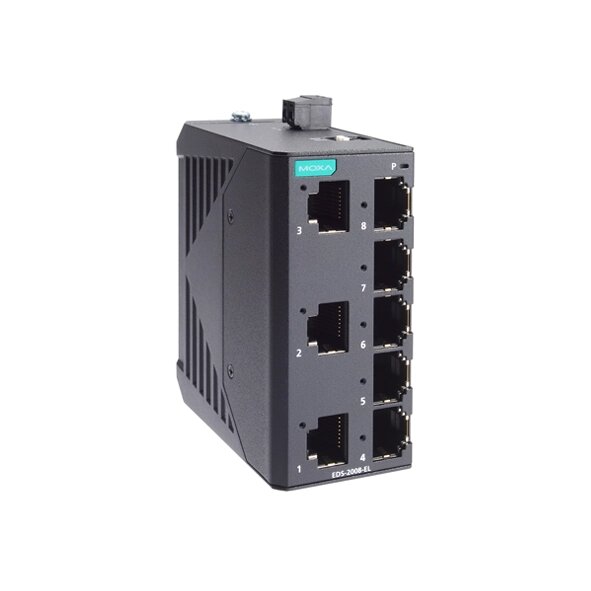

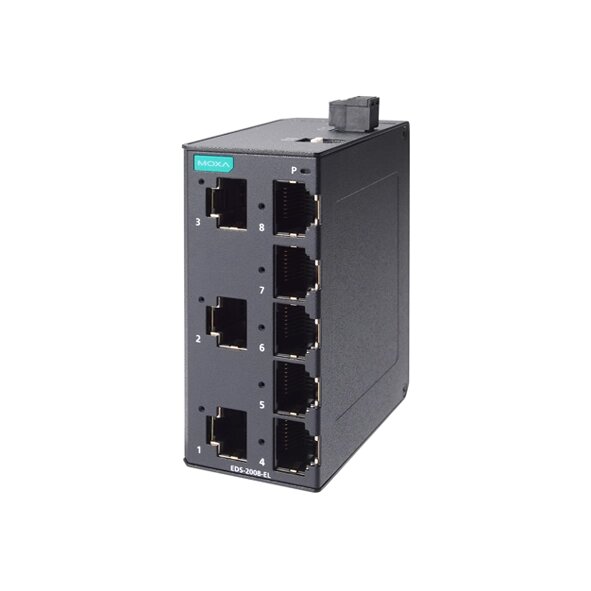

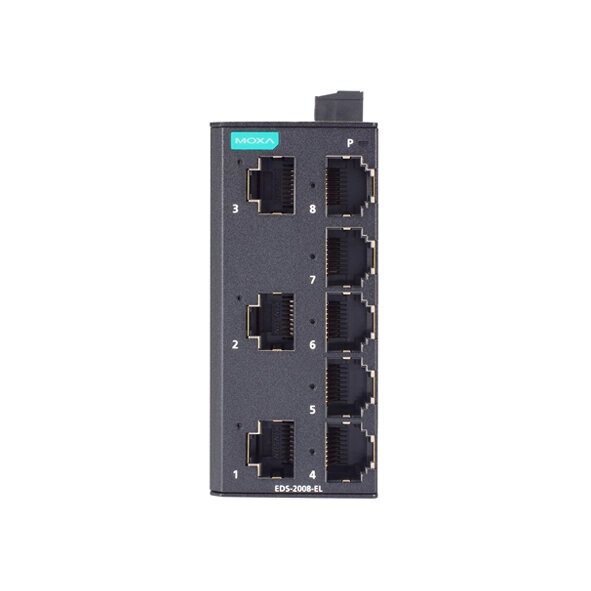

Name: MOXA EDS-2008-EL-T Unmanaged Ethernet Switches
Brand: MOXA
Availability: InStock

MOXA EDS-2008-EL-T Unmanaged Ethernet Switches

8 x 10/100Mbps T(x) ports
DIN-rail and Wall mounting
IP40-rated metal housing
12 to 48 VDC input power range
-40 to 75°C operating temperature

Brand: MOXA
Model: EDS-2008-EL-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)
Freefall (IEC 60068-2-32)
IP protection (IP40)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

SIEMENS RUGGEDCOM i800 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900 Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS900GP Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS940G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RS950G Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2300 Rackmount Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG2488 Rack-mount Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SIEMENS RUGGEDCOM RSG920P Ethernet Switches

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Switches , MOXA EDS-2008-EL Series

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments, and fiber connections (Multi-mode SC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

You can also find the EDS-2008-EL-M-SC and EDS-2008-EL-M-ST models in the DIN-Rail Ethernet Switches.

You can Buy the MOXA EDS-2008-EL-T Unmanaged Ethernet Switches via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

switch and hub : Interface
Number of ports	8 Ports
10/100Mb RJ45 (Megabit) Ports	Yes : 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	No
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	0.067A @ 24 VDC
Power Input Plugin ( Redundant )	No
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	3,696,394 hrs
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	Unmanaged
Port Aggregation	No
switch and hub : Physical Characteristics
Dimensions	36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: UL 61010-2-201, EN 62368-1; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 22, 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	169 g (0.37 lb)
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No

Datasheet
