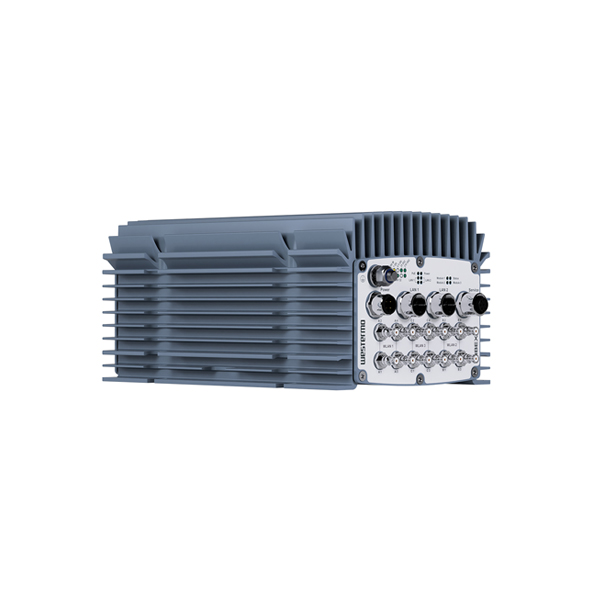

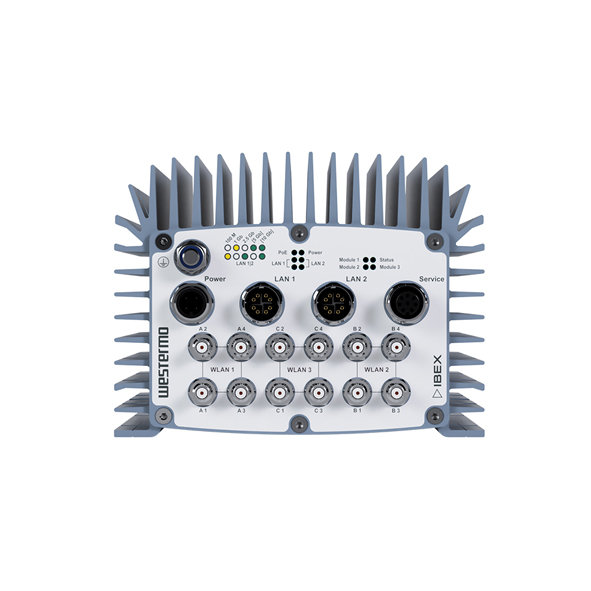

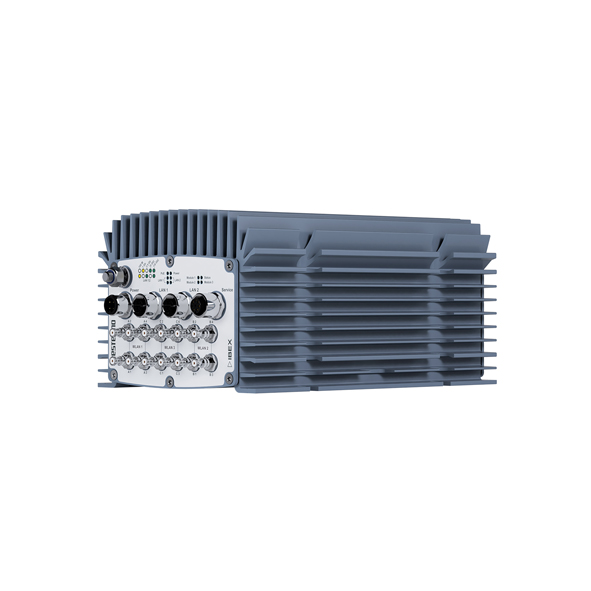

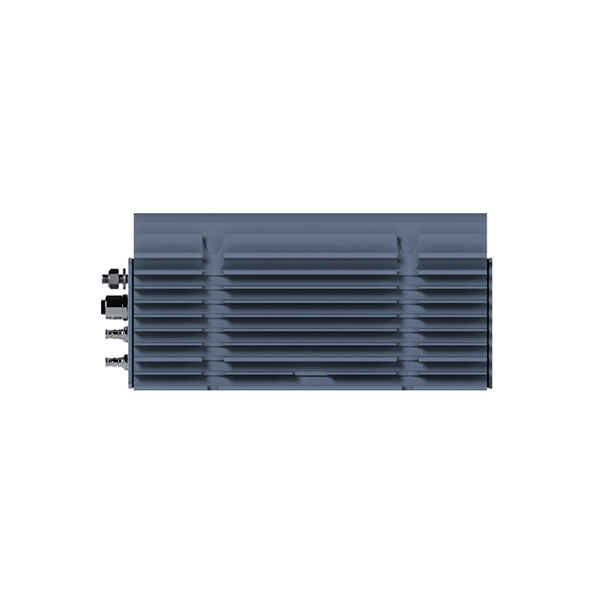

Westermo Ibex-4000 WLAN Triple Radio Railway Access Point

Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
Westermo Ibex-4000 WLAN Triple Radio Railway Access Point

  • IEEE 802.11ax compliant with 4 x 4 Multi-user MIMO
  • Up to three Wi-Fi 6 (E) modules
  • Supports 2.4/5 GHz Wi-Fi 6 and 6 GHz Wi-Fi 6E
  • 2 x 2.5/10 Gigabit Ethernet on M12 X-coded connectors
  • 1 x USB/Serial Port (USB 2.0, RS232, M12 A-coded)
  • IP54-rated aluminum body and wall mounting
  • Ultra-wide-range power supply 24 to 110 VDC
  • Dual PoE+ / PoE++ power supply (IEEE 802.3at/bt)
  • -40 °C to +70 °C operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (0 to 95% RH, non-condensing)
  • IP protection (IP54)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA AWK-1121-US Wireless Client
Quickview
MOXA AWK-1121-US Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU Wireless AP/Client
Quickview
MOXA AWK-1131A-EU Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU-T Wireless AP/Client
Quickview
MOXA AWK-1131A-EU-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP Wireless AP/Client
Quickview
MOXA AWK-1131A-JP Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP-T Wireless AP/Client
Quickview
MOXA AWK-1131A-JP-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US Wireless AP/Client
Quickview
MOXA AWK-1131A-US Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US-T Wireless AP/Client
Quickview
MOXA AWK-1131A-US-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1137C-EU Wireless Client
Quickview
MOXA AWK-1137C-EU Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Wireless & Cellular Routers , Cellular Gateways & Routers , Wireless Communications , Industrial Wireless AP/Bridge/Client , WLAN APs/Bridges/Clients , Industrial Data Communications , Industrial Cellular Solutions , Wireless Routers , Routers , Access Point , Railway Transportation Products , Westermo Ibex-4000 Series

The Ibex-4000 (802.11ax) is a high-performance Wi-Fi 6/6E access point series designed for railways (EN 50155). The Ibex-4000 series includes both dual-band and tri-band Wi-Fi products. These products support 4x4 MU-MIMO, offer bandwidth support up to 160 MHz, and feature 1K-QAM modulation. For connectivity, the access point features two 2.5 or 10 Gigabit Ethernet ports. In case an access point is down (e.g., due to power loss), bypass relays ensure that other daisy-chained access points still have Ethernet.

The Ibex-4000 series also includes a Baseboard Management Controller (BMC), which offers intelligent monitoring and analysis of vital information such as boot processes, temperature, and voltage limits. In the event of a deviation, various actions can be taken. The BMC thus improves the reliability and efficiency of an access point. The Ibex-4000 series offers flexible powering options. The power is supplied either via an internal power supply with bypass relays or an internal power supply with PoE.

The Ibex-4000 series firmware (based on OpenWrt) provides a user-friendly web interface for management. The access point configurations as well as the management firmware can be updated remotely. The Ibex-4000 series also comes with a dedicated Trusted Platform Module (TPM 2.0). TPM increases device security by securely storing cryptographic keys and by protecting against unauthorized manipulation.



You can also find the Ibex-RT-630-5G-LV EU, Ibex-1310-T2G2.5 NA, Ibex-1510-T2G2.5EU, Ibex-A2510-T1G-PoE, Ibex-RT-320-LV NA, Ibex-RT-610-LV EU, and Ibex-RT-630-5G-LVNA models in the WLAN.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo Ibex-4000 WLAN Triple Radio Railway Access Point through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot No
Ethernet Ports Yes : 2 x 2.5/10 GbE, M12 8-pin female X-coded connector
USB Yes : 1 x USB 2.0 Port (M12 8-pin female A-coded connector)
Digital Input and Output No
Serial port Yes : 1 x RS232 Port (M12 8-pin female A-coded connector)
Alert Output No
Band Options -
Cellular Standards -
Cellular Antenna Connectors -
WLAN Standards IEEE 802.11 a/b/g/n/ac/ax
WLAN Antenna Connector Up to 12 RF antennas, 4x4 MU-MIMO technology, with QLS to SMA adapter, built-in combined for 2.4 / 5 GHz as only 4x QLS (4x4) on the front panel
GPS Antenna Connector No
3g modem : Radio specifications
Radio Connection type Up to three Wi-Fi 6 (E) modules
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G up to 4804 Mbps @ 5/6 GHz and 1147 Mbps @ 2.4 GHz
WiFi Radio Frequency 2.412 GHz to 2.472 GHz, or 4.920 GHz to 5.875 GHz, or 5.925 to 7.125 GHz selectable band
3g modem : Software Specifications
Routing Redundancy No
VPN OpenVPN, IPSec, GRE
Firewall stateful firewall with multi-level client/AP isolation
Time Management No
Management Remote Management: SNMP V1/V2/V3, telnet, SSH, http, https; Network Link Management: link priorization, load balancing, link aggregation; Baseboard Management Controller (BMC)
3g modem : General
LED Indicators POWER LED, STATUS LED, MODULE 1 / 2 / 3 LED, POE LED, LAN1 / LAN2 LED´S
MTBF approx. ~255.000 h (acc. to IEC 62380)
Operating mode Access Point, Bridge, Client, Router
3g modem : Standards and protocols
Protocols -
3g modem : Features and capabilities
Send and receive SMS No
3g modem : Security
Security and Encryption Encryption: OPEN, AES, TKIP, WPA, WPA2-PSK/EAP, WPA3-PSK/EAP, mixed modes, OWE
Authentication Authentication 802.1x
3g modem : Power Requirements
Power Connector M12 4-pin male A-coded
Power Consumption (Output Adapter) 40 W. typ., 50 W. max.
Input Voltage 24 to 110 VDC, wide-range power supply, Dual PoE+, Class-4 powered device, IEEE 802.3at, Dual PoE++, Class-6 powered device, IEEE 802.3bt (compliant to EN 50155)
POE Support Yes
Input Current No
Reverse Polarity Protection No
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation Wall Mounting
Dimensions 130 mm x 100 mm x 218 mm (w h d)
Housing IP54, aluminum, wall-mount, conductive cooling
Weight up to 3300 g
Operating Temperature Class OT4, -40.. +70 °C (85 °C)
Storage Humidity max. 95 % non-condensing operating and storage
Storage Temperature -40 to +85 °C
Type of Use Railway applications
Standards and Certifications Directive (EU) 2016/797: EN 50155 (IEC 60571), EN 45545-2 (HL 1 to HL 3), EN 61373 (Category 1, Class B); RED – 2014/53/EU: EMC, radio spectrum, health & safety; USA: FCC Title 47 CFR Part 15, NFPA-130; IP40; IEC 62380
