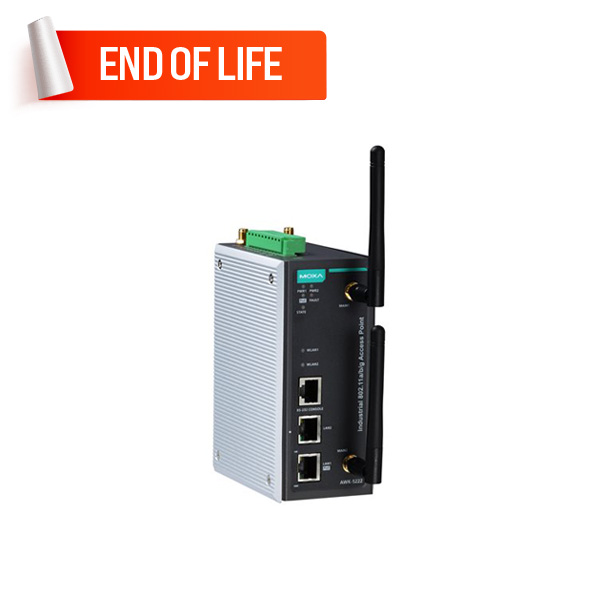

MOXA AWK-5222-US Wireless AP/Bridge/Client

MOXA AWK-5222-US Wireless AP/Bridge/Client
MOXA AWK-5222-US Wireless AP/Bridge/Client
MOXA AWK-5222-US Wireless AP/Bridge/Client
MOXA AWK-5222-US Wireless AP/Bridge/Client
MOXA AWK-5222-US Wireless AP/Bridge/Client

  • Supports US Frequency Bands
  • 2 x 10/100BaseT(X) port (RJ45 connector)
  • IEEE 802.11a/b/g compliant
  • 12 to 48 VDC Redundant dual power inputs
  • IP30 Metal body design
  • DIN-rail and Wall mounting
  • -25 to 60°C operating temperature

  • Brand: MOXA
  • Model: AWK-5222-US
0 reviews • Write a review
Datasheet
  • Operating Temperature (-25 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA AWK-1121-US Wireless Client
Quickview
MOXA AWK-1121-US Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU Wireless AP/Client
Quickview
MOXA AWK-1131A-EU Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-EU-T Wireless AP/Client
Quickview
MOXA AWK-1131A-EU-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP Wireless AP/Client
Quickview
MOXA AWK-1131A-JP Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-JP-T Wireless AP/Client
Quickview
MOXA AWK-1131A-JP-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US Wireless AP/Client
Quickview
MOXA AWK-1131A-US Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1131A-US-T Wireless AP/Client
Quickview
MOXA AWK-1131A-US-T Wireless AP/Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA AWK-1137C-EU Wireless Client
Quickview
MOXA AWK-1137C-EU Wireless Client
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Wireless AP/Bridge/Client , Rail Wireless LAN , Wireless Access Points , Access Points , Wireless Communications , Industrial Wireless AP/Bridge/Client , MOXA AWK-5222 Series

Moxa’s wireless redundancy technology allows you to set up independent wireless connections to avoid interruptions in transmission, even if interference occurs on one of the supported frequencies. The AWK-5222 is equipped with the newest proprietary wireless redundancy technology, which has two independent RF modules and supports a greater variety of wireless configurations and applications. The redundant wireless connections increase the reliability of the entire wireless network. The AWK-5222 is compliant with industrial standards and approvals, covering operating temperature, power input voltage, surge, ESD, and vibration. The AWK5222 is rugged enough to help you establish the most robust wireless connection for critical industrial wireless applications.


End of Life Product - No Replacement

Please note that the AWK-5222 Series has been phased out. You can explore the AWK-3131A-RCC Series and AWK-3251A-RCC Series in the Rail Wireless LAN.


You can explore our wide range of products and enquire about the MOXA AWK-5222-US Wireless Access Point for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Access Point : Interfaces
10/100/1000BaseT(X) Ports No
Modulation Type DSSS with DBPSK, DQPSK, CCK; OFDM with BPSK, QPSK, 16QAM, 64QAM, 64QAM @ 54 Mbps, 16QAM @ 24/36 Mbps, QPSK @ 12/18 Mbps, CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBSK@ 1 Mbps; 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps; 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps
Frequency Band 2.412 to 2.462 GHz (11 channels), 5.18 to 5.24 GHz (4 channels)
PoE Ports No
100BaseFX Ports No
Wireless Security -
WLAN Antenna Connector 2 x RP-SMA (female)
Security SSID broadcast enable/disable, Firewall for MAC/IP/Protocol/Port-based filtering, 64-bit and 128-bit WEP encryption, WPA /WPA2 Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
WLAN Operation Mode Access Point, Bridge, Client
WLAN Standards IEEE 802.11a/b/g for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3 for 10BaseT(X), IEEE 802.3u for 100BaseT(X), IEEE 802.3af for Power-over-Ethernet, IEEE 802.1D for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN
1000BaseSFP Slots No
Transmission Rates 802.11b: 1, 2, 5.5, 11 Mbps, 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
10/100BaseT(X) Ports Yes : 1 Port (auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection)
Digital Inputs Yes : 2 electrically isolated inputs, +13 to +30 V for state “1”, +3 to -30 V for state “0”, Max. input current: 8 mA
Console Port Yes : RS-232 (RJ45-type connector)
Serial Ports No
M12 Connector No
Access Point : Power Requirement
Input Current -
Connector 10-pin removable terminal block
Input Voltage 12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant)
Power Consumption 12 to 48 VDC, 800 mA (max.)
Reverse Polarity Protection Supported
Access Point : Physical Characteristics
Humidity 5% to 95% (non-condensing)
Dimensions Packaged 62 x 135 x 105 mm (2.44 x 5.31 x 4.13 in)
Weight (PACKAGED) 1.1 kg
Housing Metal
Installation DIN-Rail mounting (standard), Wall mounting (optional)
Standards and Certifications Safety: UL 60950-1, EN 60950-1; EMC: EN 301 489-1/17, FCC Part 15 Subpart B, EN 55022/55024, IEC 61000-6-2/4; Radio: EN 300 328, EN 301 893, FCC ID SLE-WAPA003; IP30
Operating Temperature -25 to 60°C (-13 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Access Point : General
Management Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
LED Indicators PWR1, PWR2, PoE, FAULT, STATE, WLAN1, WLAN2, 10M, 100M (TP port), LAN1, LAN2 (M12 port)
MTBF 291,367 hrs
Time Management -
