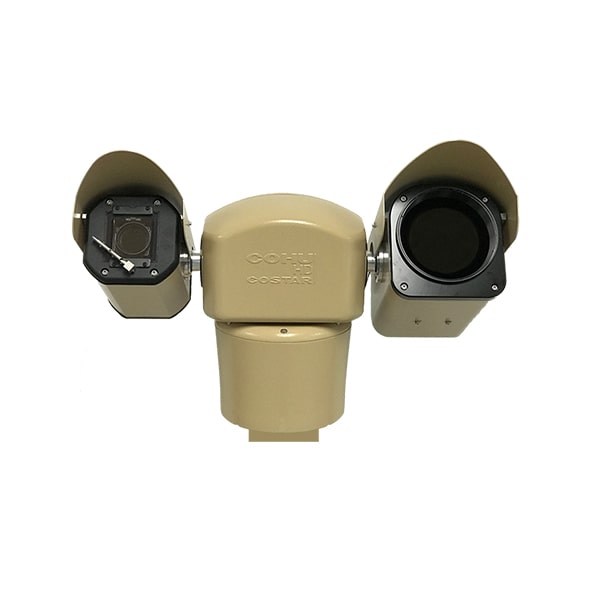

COHU RISE 4290HD Day/Night Positioner

COHU RISE 4290HD Day/Night Positioner
COHU RISE 4290HD Day/Night Positioner

  • Outdoor IP67
  • H.264 Dual Spectrum Visible and LWIR

  • Brand: COHU HD
  • Model: RISE 4290HD
0 reviews • Write a review
Datasheet
  • Operating Temperature (NEMA TS2 para. 2.2.7, -29°F to 167°F (-34°C to 75°C), -22°F (-30C) Cold Start)
  • Relative Humidity (Up to 100%)
  • shock (Per NEMA TS2 para. 2.2.9. 10g applied in each of 3 mutually perpendicular planes)
  • Vibration (Per NEMA TS2 para. 2.2.8. 5-30Hz sweep @ 0.5g applied in each of 3 mutually perpendicular)
  • IP Protection (Visible Camera - IP68)
  • IP Protection (Thermal Camera - IP67)
  • IP Protection (Positioner Body - IP66)
  • IP Surveillance
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
COHU 2600 Series Camera
Quickview
COHU 2600 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-1000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
Quickview
COHU 3212-2000 Body Temperature Measurement and Radiometric Detection Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 3212-9000 Portable Black Body Calibration Tool
Quickview
COHU 3212-9000 Portable Black Body Calibration Tool
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800 Series Camera
Quickview
COHU 8800 Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU 8800HD Series Positioner
Quickview
COHU 8800HD Series Positioner
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3430HD Series Camera
Quickview
COHU OCTIMA 3430HD Series Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
COHU OCTIMA 3440HD Series Dome Camera
Quickview
COHU OCTIMA 3440HD Series Dome Camera
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

CohuHD Costar’s 4290HD dual spectrum positioning system is the latest addition to CohuHD’s RISE family of products, combining crystal clear HD visible spectrum imaging along with standard resolution LWIR night vision imaging for delivering unmatched performance at an affordable price.

The 4290HD visible spectrum camera provides full 1080p imaging with 30x optical zoom, delivering full frame rate HD images over the entire zoom range for very cost-effective long-range surveillance applications. True day/night technology using a removable IR cut filter produces exceptional low light sensitivity down to 0.00025fc.


You can place an order for the COHU RISE 4290HD Day/Night Positioner, which is applicable in the IP Surveillance industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

COHU products : CAMERA
Sensor 1/2.8” CMOS
Scanning Progressive
Resolution 1,920 x 1,080 640 x 360 @ 3x dig. zoom
Digital Formats YUV 4:2:2 SMPTE 274M, BT.709, BT.1120, 1080p, 1080i, 720p
Frame Rate 30 fps
Camera Format Day/Night (IR Cut Filter)
Day/Night Modes Auto, Color, B/W
S/N Ratio >50 db
COHU products : SENSITIVITY
Standard Color B/W (f1.4, 1/30, 30 IRE), 0.25 lux (0.025 fc), 0.024 lux (0.0024 fc)
Digital Slow Shutter Color B/W (f1.4, 1/2, 30 IRE), 0.015 lux (0.0015 fc), 0.0015 lux (0.00015 fc)
COHU products : OPTICS
Zoom Lens 30x, 4.4 to 132mm effective 264mm with 2x digital zoom
Aperture f1.4 -> f4.6
Focus Auto/Manual [Near, Far]
Focus Search Bright, Point Source, Normal
Focus Sensitivity Low, Normal, High
Iris Auto/Manual [Open/Close]
Lens Speed Three [Slow, Medium, Fast]
Digital Zoom 12x, Off/On [Depth]
HAFOV 63.4° to 2.1° @ 1920x1080, 63.4° to 0.7° @ 640 x 360
COHU products : IMAGE PROCESSING
Defog Mode Off/Auto/Manual [3 Levels, Strength and Color Adj.]
Image Stabilization Off/On
Enhanced Intensity Off, Enhanced, Whiteout Reduction
Dynamic Range >90dB Off/On [3 Levels, Normal, Combo, Contrast ]
Back Light Comp Off/On [ Level Setting ]
Shutter (AES) Auto/Manual [1/2 -> 1/30,000]
Slow Shutter Off/On [1/15->1/2] with Limit Setting
White Balance Auto/Manual [Red/Blue Adjustment]
(WB) Modes Mercury, Sodium Vapor, Normal
AGC 1 to 48db, Adjustable
Sharpness Soft, Normal, Sharp, Sharpest
Noise Reduction Medium, Strong, Fixed, Normal
COHU products : IP STREAM
Video Streams 5 or more video streams dependent on available processing budget
Video Codec H.264 Base, Main and High Profiles, MJPEG
Video Protocols RTSP/RTP, RTSP/RTP Interleave, HTTP Tunneling, RTP Multicast
Video Resolution 1080p, 720p, D1 [Visible] D1, VGA, CIF [Thermal]
Video Frame Rate 1 to 30 fps, 30 fps default
Video Data Rate 256Kbs to 8Mbs
Video Rate Cntrl Variable or Constant
Video GOV 1 to 600, 30 default
Video Latency Four frames (0.133 sec.)
Video Trans 99.999% error free
COHU products : COMMAND CORE ACTION ENGINE
Input Triggers Digital Input(s), Timer, Scheduler, Preset reached, PTZ move, Maintenance, a User command
Output Actions Activate digital output(s), FTP image, Send Email, Send Text, Activate Preset or Tour, Display OSD message
Trigger Queuing User selectable mode. Processes output actions by trigger priority, first in, or last in
Servers Multiple FTP and EMAIL servers can be configured for use by a camera system
COHU products : ON SCREEN DISPLAY (OSD)
OSD Capacity Up to 7 OSD Elements can be selected for display on the video
OSD Elements Text, Preset, Position, Compass, Date/Time, Sector, Maintenance, Action Event
COHU products : POSITIONING DRIVE
Pan Range 360° continuous rotation
Tilt Range 360°
Preset Speed Peak speed of 120°/sec 180° movement < 3 seconds
Manual Speed 0.1° to 45°/second
Speed Resolution > 64 Variable speed levels
Pigtail Cable(s) Approx. 24”
Repeatability +/- 0.05°
Resolution +/- 0.05°
COHU products : ELECTRICAL
Input Voltage PoE++, 24Vdc/ac or 120Vac, model dependent
Power 30w, up to 60w with heaters ON
Voltage Range NEMA standard TS 2-2003 section 2.2.7 tests C thru H
Transient/Surge Certified to CISPR 24 levels
Emmissions Certified to CISPR 22 levels
COHU products : Physical Characteristics
Weight 35 lbs (15.9 kg) (fixed lens)
Dimensions Est. 22” W x 17” H x 15” D (558 x 432 x 381)
Construction Powder Coated aluminum
Sunshield Included as standard
Color Desert Tan
IK10 Camera System except optics faceplates
Protection Rating Visible Camera - IP68, Pressurized with Dry Nitrogen, 3.5 psi, Thermal Camera - IP67, Positioner Body - IP66
Operating temperature NEMA TS2 para. 2.2.7, -29°F to 167°F (-34°C to 75°C), -22°F (-30C) Cold Start
Relative Humidity Up to 100%
Vibration Per NEMA TS2 para, 2.2.8. 5-30Hz sweep @ 0.5g applied in each of 3 mutually perpendicular planes
Shock Per NEMA TS2 para. 2.2.9. 10g applied in each of 3 mutually perpendicular planes
Wind Survivability Up to 150 mph - 120 mph for 45 minutes - 150 mph for 15 minutes
EMC CERTIFICATIONS AS/NZS CISPR 22:2009+A1:2010, CAN/CSA-CISPR 22-10, FCC Part 15B, EN 55022:2010+AC: 2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2013, EN 61000-4-2: 2009, EN 61000-4-3: 2006 +A1:2008 +A2:2010, EN 61000-4-4: 2004, EN 61000-4-5: 2006, EN 61000-4-6: 2009, EN 61000-4-8: 2010, EN 61000-4-11: 2004, RoHS, SASO (Pending)
Faceplate Visible camera, optically correct glass. Thermal camera, hard carbon coated germanium
Faceplate Wiper Visible Camera, [On/Off Dwell, Time Out Settings]
COHU products : THERMAL CAMERA
Detector VOx Uncooled Microbolometer
Image Resolution 640 x480
Pixel Size 17µm
Spectral Band 8 - 12 µm
Sensitivity (NEdT) <50 mK @ F1.0
Frame Rate 30Hz or 9Hz
COHU products : THERMAL IMAGE PROCESSING
Digital Zoom Up to 12x
Image Polarity, NUC, Image flip, Auto/Manual gain [Level]
Palettes Color and B/W selections
COHU products : THERMAL OPTICS (ZOOM)
Focal Range 25-150mm, 6x, F1.6
HAFoV 25.2° to 4.2°
Lens Type Athermalized, Hard Carbon
Focus Type One-Shot Auto Focus, Manual [Near/Far
COHU products : THERMAL OPTICS (Dual FoV)
Focal Range 45/135mm Dual Fov, F1.6
HAFoV 14.3°/4.6°
Lens Type Athermalized, Hard Carbon
Focus Type One-Shot Auto Focus, Manual [Near/Far]
COHU products : THERMAL OPTICS (Fixed FoV)
HAFoV 17.6° [25mm], 12.4° [50mm], 6.2° [100mm]
Lens Type Athermalized, Hard Carbon
Focus Type Fixed
