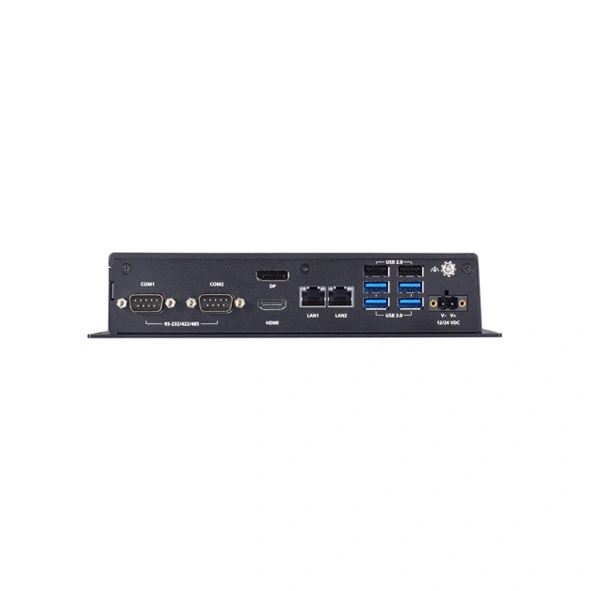

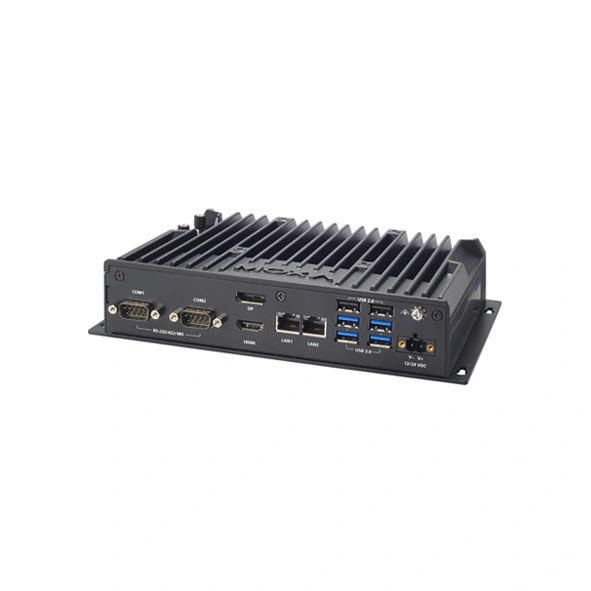

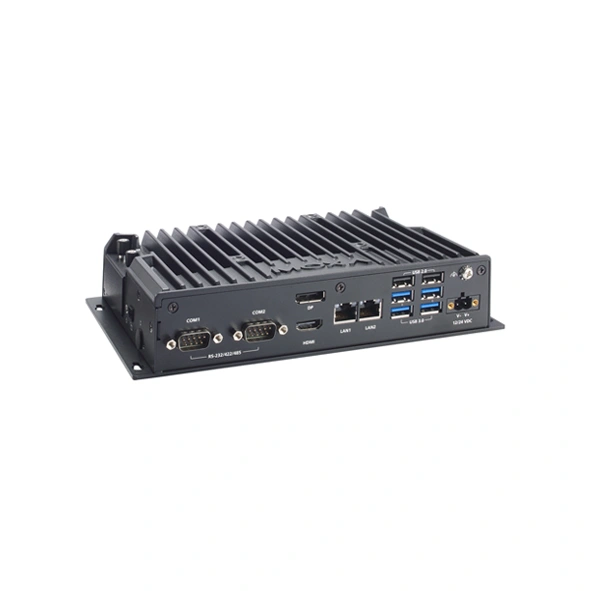

MOXA BXP-C101-C3-S1-T Industrial Computer

MOXA BXP-C101-C3-S1-T Industrial Computer
MOXA BXP-C101-C3-S1-T Industrial Computer
MOXA BXP-C101-C3-S1-T Industrial Computer
MOXA BXP-C101-C3-S1-T Industrial Computer
MOXA BXP-C101-C3-S1-T Industrial Computer
MOXA BXP-C101-C3-S1-T Industrial Computer
MOXA BXP-C101-C3-S1-T Industrial Computer
Key Features:
  • Box-type computer with a fanless design
  • CPU: Intel® Core™ 3-100U (1.2 GHz)
  • 2 x 10/100/1000 Mbps ports (RJ45)
  • 2 x RS-232/422/485 serial ports (DB9)
  • 12/24 VDC input power range
  • IP20-rated metal body design
  • DIN-rail and wall-mount installation design
  • -30 to 70°C operating temperature
  • Brand: MOXA
  • Model: BXP-C101-C3-S1-T
0 reviews • Write a review
ENQUIRE NOW
Add to Wish List Compare this Product
Datasheet
  • Operating Temperature (-30 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP20)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6, IEC 60068-2-64)
  • Factory Automation
$0.00
Ex Tax: $0.00
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
Quickview
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-E3-24-0041-3F42 Frequency inverter
Quickview
Beijer BFI-E3-24-0041-3F42 Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The BXP-C101 Series computer models are built around an Intel® Core™ 3-100U, 5-120U, or 7-150U processor. The computers come with a rich set of interface options including either two serial ports (S1 models) or five digital inputs and six digital outputs (S2 models), two gigabit Ethernet ports, six USB ports, one HDMI port, and one DisplayPort. A dual-storage design that includes CFast and M.2 slots enables easy storage expansion.

The BXP-C101 computers have a compact design and come with a wall-mounting kit attached. The computers are fanless, enabling them to withstand a temperature range of -30 to 70°C and making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements for various industrial environments.

You can also find the BXP-C101-C3-S2-T,  BXP-C101-C5-S1-T, and BXP-C101-C7-S1-T models in the MOXA BXP-C101 Series.

Enjoy the ease of online inquiries for the MOXA BXP-C101-C3-S1-T Industrial Computer. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Industrial Computer : Computer
CPU Intel® Core™ 3-100U processor (6 cores, 10 MB Intel® smart cache, 1.2 GHz)
Supported OS Windows images and drivers supported: Windows 11 Professional 64-bit, Windows 11 IoT Enterprise LTSC 2024 64-bit, Windows 10 IoT Enterprise LTSC 2021 64-bit; Linux drivers supported: Debian 13, Ubuntu 24.04 LTS, RHEL 9
OS (pre-installed) -
System Memory 8 GB DDR4, Slot: SODIMM DDR4 slots x 1, up to 32 GB max.
Graphics Controller Intel® UHD Graphics
Storage Slot CFast slot x 1 (SATAIII interface), M.2 M-key 2242 sockets x 1 (PCIe Gen 4 x4)
Industrial Computer : Interface
LAN 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection 1.5 kV (built-in)
Digital Input/Output Channels -
Serial Ports 2 x RS-232/422/485 ports (software-selectable, DB9 male connector)
USB 4 x USB 3.0 hosts, type-A connectors, 2 x USB 2.0 hosts, type-A connectors
Expansion Slot mPCIe slots x 1
Industrial Computer : Serial Communication Parameters
Baudrate 50 bps to 115.2 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control -
Industrial Computer : Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
Industrial Computer : LED Indicators
System Power x 1
LAN 2 per port (10/100/1000 Mbps)
Serial -
Industrial Computer : Power Requirements
Input Voltage 12/24 VDC
Input Current -
Power Consumption 62.4 W
Industrial Computer : General
Alert Tools Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger Built-in WDT
MTBF 1,515,150 hrs
Industrial Computer : Physical Characteristics
Dimensions 217 x 136.5 x 44.5 mm (8.55 x 5.38 x 1.75 in)
Housing Metal
Operating temperature -30 to 70°C (-22 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz; Safety: IEC 62368-1, UL 62368-1, EN 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Package Drop Test: ISTA 1A; Package Vibration Test: ISTA 1A; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB; IP20
Weight 1,600 g (3.52 lb)
Mounting Wall mounting (standard), DIN-rail mounting (with optional kit)
