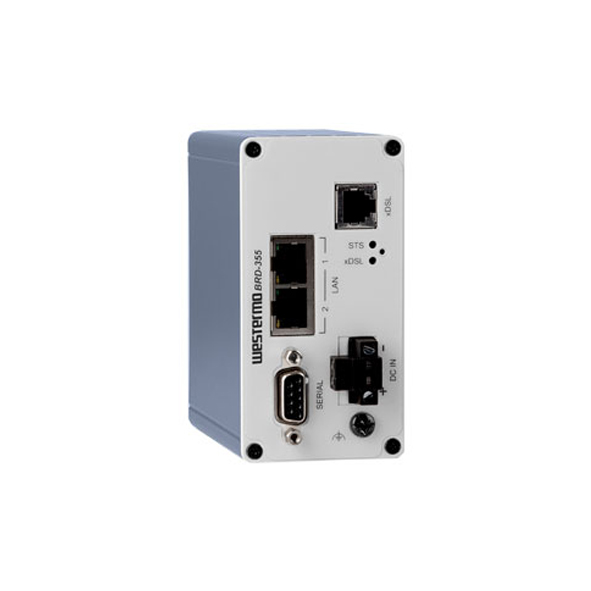

Westermo BRD-355A Industrial ADSL/VDSL Router

Westermo BRD-355A Industrial ADSL/VDSL Router
Westermo BRD-355A Industrial ADSL/VDSL Router
Westermo BRD-355A Industrial ADSL/VDSL Router
Westermo BRD-355A Industrial ADSL/VDSL Router
Westermo BRD-355A Industrial ADSL/VDSL Router

  • Fixed line broadband connection via ADSL or VDSL2
  • 2 x 10/100 Mbit/s Ethernet ports (RJ-45 connector)
  • 1 x RS-232 Serial port (9-pin D-sub connector)
  • 1 x xDSL Port for DSL line connection (RJ-11 connector)
  • IP40-rated Metal body design
  • 35 mm DIN-rail mounting
  • 12 to 48 VDC input power (Wide Range 10 to 60 VDC)
  • Wide operating temperature range (-40 to +70°C)

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (0 to 90% relative humidity non-condensing)
  • IP protection (IP40)
  • Factory Automation
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
Quickview
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-E3-24-0041-3F42 Frequency inverter
Quickview
Beijer BFI-E3-24-0041-3F42 Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Broadband DSL Routers , Industrial Data Communications , Broad Band DSL Routers , Factory Automation Products , Oil & Gas Products , Routers , Westermo BRD-355A and BRD-355B Series

Remote access removes boundaries, eliminates the need for time consuming site visits and provides a network infrastructure suitable for today’s ”always on”-society. The BRD-355 industrial ADSL/VDSL router uses the Internet to connect remote networks. Allowing IP enabled SCADA, HMI, PLCs, sensors or legacy serial devices etc. to communicate with each other, a prerequisite for any Industrial Internet (IIoT/IoT) solution.

The BRD-355 has a built-in two-port Ethernet switch and an RS-232-port, for both new and legacy modem replacement. Designed to be installed on a DIN rail all connectors and LEDs have been positioned on the front of the unit, for easy access and fast status feedback.

The cybersecurity features of the BRD-355 prevent unauthorized access and secure communication for Internet-enabled applications. The easy-to-use firewall filters incoming and outgoing traffic, allowing only approved packets to pass through. The BRD supports a variety of VPN technologies to ensure that data can be sent over public or private networks securely via SSL (OpenVPN) or IPsec. The BRD-355 has fully integrated with the easy-to-use, Westermo WeConnect high-security remote access solution.

Upgrading legacy serial or modem systems to IP-enabled, can prove both costly and time consuming. Therefore the BRD-355 includes a wide set of feature to allow the easy migration of the legacy serial/modem applications. The features include interpreting the ATD modem emulation, lease line over IP and multidrop application where a master is connected to multiple slave locations.



You can also find the BRD-355A-AU and BRD-355B models in the Broadband DSL Routers.



Enjoy the ease of online inquiries for the Westermo BRD-355A Industrial ADSL/VDSL Router. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slot No
Ethernet Ports Yes : 2 x 10/100 Mbit/s TX Ports (RJ-45 connector)
USB No
Digital Input and Output No
Serial port Yes: 1 x RS-232 Serial port (9-pin D-sub connector), 300 bit/s - 115.2 kbit/s
Alert Output No
Band Options No
Cellular Standards No
Cellular Antenna Connectors No
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector No
3g modem : Radio specifications
Radio Connection type -
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency -
3g modem : Software Specifications
Routing Redundancy VRRP
VPN IPsec, OpenVPN (SSL VPN), L2TP, PPTP, GRE
Firewall Stateful Inspection, NAT, Port Forwarding
Time Management No
Management WeConfig, web interface (HTTP and HTTPS), Command Line Interface (CLI) via SSHv2 and Telnet, SNMPv1/v2c/v3, RFC5424/RFC3164 Syslog (log files and remote syslog server)
3g modem : General
LED Indicators Yes : STS, xDSL
MTBF MIL-HBDK-217F: 995,000 hours
Operating mode ADSL/VDSL Router/Bridge, Serial-to-Ethernet Converter
3g modem : Standards and protocols
Protocols xDSL protocols: TI.413, ADSL (A), G.Lite, ADSL2 (A/L/M), ADSL2+ (A/M), VDSL2 (8a, 8b, 8c, 8d/12a, 12b/17a), VDSL2 Vectoring
3g modem : Features and capabilities
Send and receive SMS Yes
3g modem : Security
Security and Encryption No
Authentication Pre-shared Key (PSK), TLS
3g modem : Power Requirements
Power Connector -
Power Consumption (Output Adapter) -
Input Voltage 12 to 48 VDC (Wide Range 10 to 60 VDC) with Galvanic isolation to all ports
POE Support No
Input Current 1000 mA at 12 VDC
Reverse Polarity Protection Supported
3g modem : Buttons
Power button No
Reset Yes
3g modem : Physical Characteristics
Installation DIN-rail mounting
Dimensions 53 x 103 x 92.3 mm (2.09 x 4.06 x 3.63 in)
Housing Full metal
Weight 0.4 kg
Operating Temperature -40 to +70°C (-40 to +158°F)
Storage Humidity 0-90% relative humidity
Storage Temperature -50 to +85°C (-58 to +185°F)
Type of Use Industrial environment
Standards and Certifications Ingress protection: IP40; MIL-HBDK-217F; EMC: EN 55032, Electromagnetic compatibility of multimedia equipment - Emission Requirements, EN 55035, Electromagnetic compatibility of multimedia equipment - Immunity Requirements, including its amendments A11:2019; Safety: EN 62368-1, Audio/video, information and communication technology equipment - Part 1: Safety requirements including its amendments Nos. A11:2020
