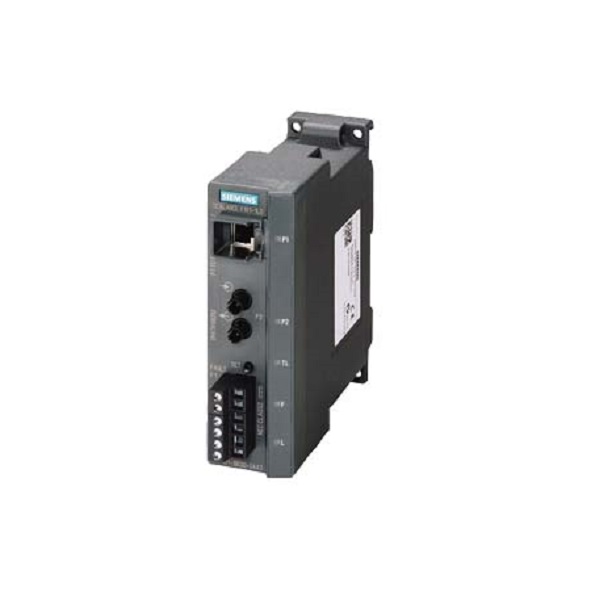

SIEMENS SCALANCE X101-1LD Ethernet to Fiber Converter

SIEMENS SCALANCE X101-1LD Ethernet to Fiber Converter
SIEMENS SCALANCE X101-1LD Ethernet to Fiber Converter
  • Ethernet to singlemode fiber optic converter
  • 1 x 10/100 Mbps Ethernet port
  • 1 x 10/100 Mbps BFOC/ST fiber-optic port
  • 24V DC power supply
  • Brand: SIEMENS
  • Model: 6GK5101-1BC00-2AA3
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 60°C)
  • IP protection (IP30)
  • Relative Humidity (max. 95% without condensation)
  • Factory Automation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
Quickview
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-E3-24-0041-3F42 Frequency inverter
Quickview
Beijer BFI-E3-24-0041-3F42 Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The unmanaged Industrial Ethernet media converters of the SCALANCE X-100 product line are ideally suited to converting electrical signals into optical signals in Industrial Ethernet networks at data transfer rates of 10/100 Mbps in line and star topologies.

  • Electrical or optical connection to nodes or networks according to port characteristics of the devices
  • Rugged metal enclosure for space-saving cubicle mounting on standard rails, SIMATIC S7-300 DIN rails, or for wall mounting
  • Rugged node connections with industry-standard RJ45 plug-in connectors with retaining collar that offers additional strain and bending strain relief thanks to latching on the enclosure
  • Redundant power supply
  • Diagnostics on the device by means of LEDs (power, link status, data communication)
  • Error signaling contact with easy adjustment using the SET button



The unmanaged media converters of the SCALANCE X-100 product line permit low-cost conversion of electrical signals into optical signals in Industrial Ethernet line, star and ring topologies. They are designed for installation in the control cabinet.

Single, remote terminal units or network segments can be linked via the optical path of the SCALANCE X-100 media converters. Integration of an optical path into a redundant ring is also possible, as well as installation of the SCALANCE X-100 media converters into a standby link.

The SIPLUS SCALANCE X-100 media converters also feature conformal coated PCBs for use in harsh environments.

The SCALANCE Industrial Ethernet media converters with a rugged metal enclosure are optimized for mounting on a standard rail and a SIMATIC S7-300 DIN rail. Direct wall mounting in various positions is also possible. Thanks to the dimensions of the enclosure that correspond to those of the SIMATIC S7-300, the devices are ideally suited for integration in an automation solution with SIMATIC S7-300 components.


The SCALANCE X-100 media converters feature:

  • A 4-pin terminal block for connecting the redundant supply voltage (2 x 24 V DC)
  • A row of LEDs for displaying status information (power, link status, data communication, signaling contact)
  • A 2-pin terminal block for connecting the floating signaling contact
  • A SET button for local configuration of the signaling contact and of cascading mode

You can place an order for the SIEMENS SCALANCE X101-1LD Ethernet to Fiber Converter, which is applicable in the Factory Automation, Marine industries, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports Yes : 1 Port
1000Mb Fiber optic single mode (Gigabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
M12 port No
Alert Output No
eth to fiber : Standards and protocols
Protocols and work standards -
eth to fiber : General
Maximum cable length for data transfer 26 km
MTBF 134 y
eth to fiber : Power Requirements
Power consumed -
Type of power input terminal block
Protection against reverse voltage -
Protection against overflow -
eth to fiber : LED Indicators
LNK/ACT Yes
Power Yes
eth to fiber : Buttons
DIP Switch -
eth to fiber : Physical Characteristics
Standards and Certifications FM3611: Class 1, Divison 2, Group A, B, C, D / T.., Class 1, Zone 2, Group IIC, T..; UL 60950-1, CSA C22.2 No. 60950-1; EN 61000-6-3; EN 61000-6-4:2001; EN 61000-6-2:2001, EN 61000-6-4:2001; CE marking; C-Tick; KC approval; ABS; BV; DNV; GL; LRS; NK; PRS; hazardous zone : EN 600079-15 II 3 G EEx nA II T.. KEMA 06 ATEX 0021 X; CSA and UL : UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T..; CCC
Housing -
Dimensions 40x125x124 mm
Weight 0.55 kg
Operating Temperature -10 to 60 ° C
Storage Temperature -40 to 80 ° C
Operation Humidity 95 % at 25 °C / without condensation / during operation / maximum
Installation Din-rail, wall mounting
