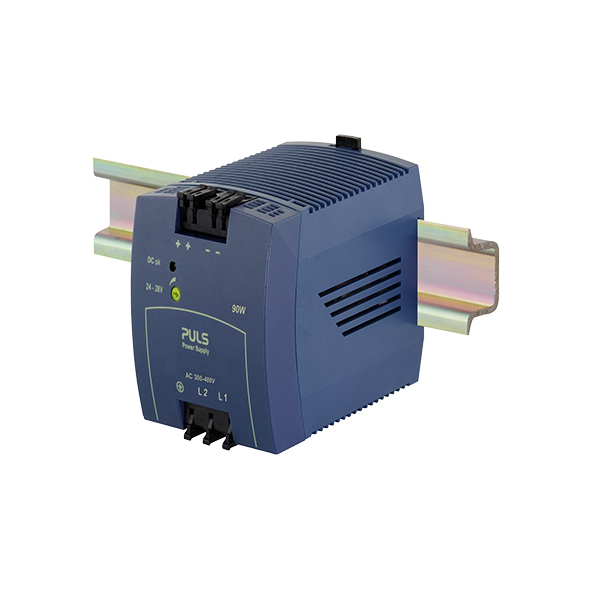

The ML90.200 is a simple and cost effective approach to convert the AC voltage of a typical three phase system into a regulated DC voltage. It only requires two phases and thereby saves terminal space, terminal cost, wires, fuses and installation time.
The ML90.200 is very compact, high efficient and easy to use. Furthermore, it fulfills the NEC Class 2 limitations. The input is internally protected, which makes external fuses unnecessary in many cases. Weighing only 360g, it is a lightweight compared to the 50/60Hz control transformers, which are commonly used for low-power control voltages where a neutral wire is not available. High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
You can place an order for the PULS ML90.200 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 380-480V (± 15%) |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Power Factor | 0.6 |
| Input Inrush Current Limitation | NTC |
| Peak turn on current | 30A/36A |
| External Input Fuse Recommendation | min. B-10A / C-6A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 3.75-3.2A |
| Output Current | 3.2A at 28V, 3.75A at 24V |
| Output Power | 90W |
| max. Ripple and Noise Voltage | 50mVpp |
| DIN-rail Power supply : General | |
| Derating | 2W/° at >+60°C |
| Efficency, typ. | 89.5% |
| Power Losses, typ. | 10.5W |
| Connection method | Spring-clamp terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 73mm x 75mm x 103mm |
| Weight | 360g |
| Operating Temperature | -10°C ... +70°C |
| MTBF | 1.594.000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
