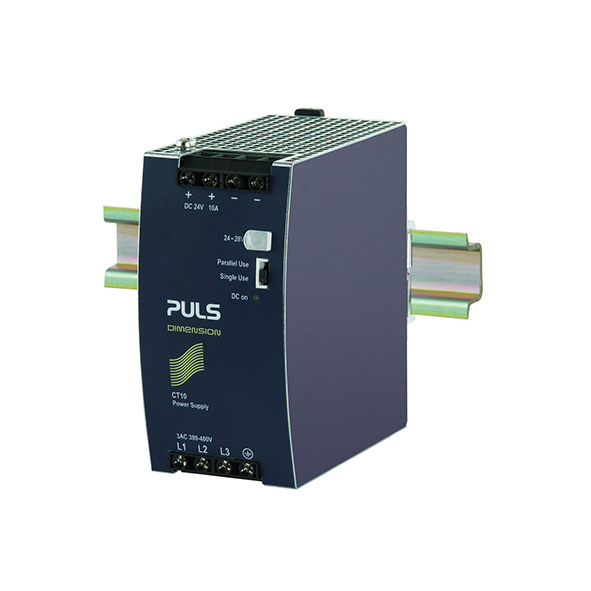

The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The C-Series is part of the DIMENSION power supply family. The most outstanding features of CT10.241 are the high efficiency, electronic inrush current limitation, active input transient filter and wide operational temperature range. The small size is achieved by a synchronous rectification and further technological design details.
The CT10.241-C1 is equipped with conformal coated pcboards preferred for applications in harsh areas. The C-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C. Additionally, the CT10.241 can deliver 3 times the nominal output current for 10ms which helps to trip fuses on faulty output branches.
You can place an order for the PULS CT10.241 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 380-480V (-15%/+20%) |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Harmonic Correction | PFC |
| Power Factor | 0.53 |
| Input Inrush Current Limitation | active |
| Peak turn on current | 4A/4A |
| External Input Fuse Recommendation | min. B-6A / C-3A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 10-8.6A |
| Output Current | 8.6A at 28V, 10A at 24V |
| Output Power | 240W |
| Power Reserves | 20% Power Boost |
| max. Ripple and Noise Voltage | 50mVpp |
| DIN-rail Power supply : General | |
| Derating | 6W/° at >+60°C |
| Efficency, typ. | 92.8% |
| Power Losses, typ. | 18.6W |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 62mm x 124mm x 117mm |
| Weight | 750g |
| Operating Temperature | -25°C ... +70°C |
| MTBF | 975.000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
