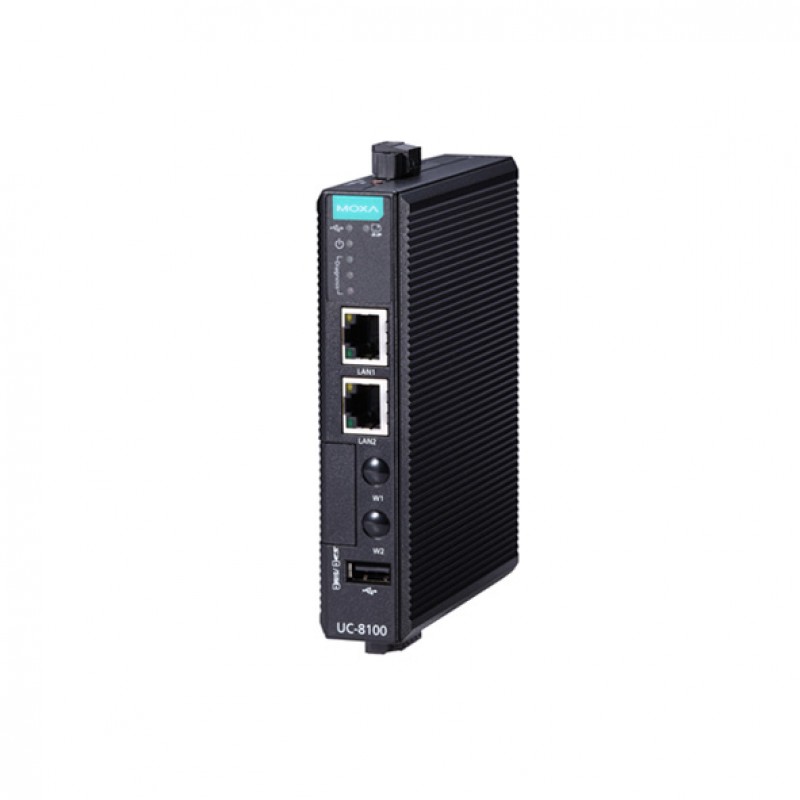

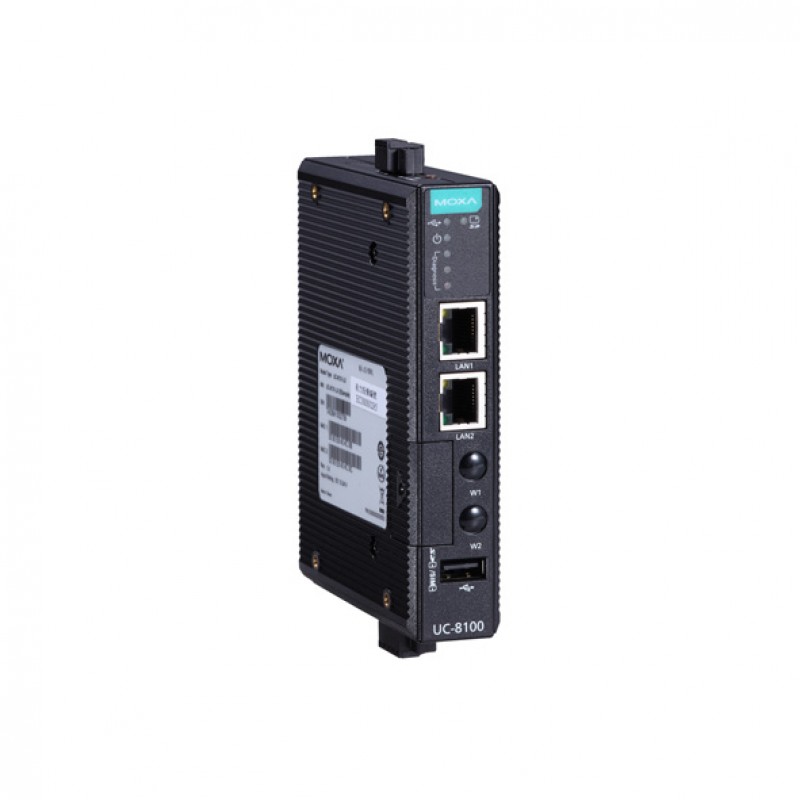

MOXA UC-8132-LX Industrial Computer
- CPU Armv7 Cortex-A8 300 MHz
- Pre-installed Linux Debian 9 kernel 4.4
- 2 x RS-232/422/485 Serial ports
- 2 x 10/100 Mbps Ethernet ports
- 12 to 24 VDC input power range
- Plastic body design
- DIN-rail and Wall mounting
- -10 to 60°C operating temperature
Description
The UC-8100 computing platform is designed for embedded data-acquisition applications. The computer comes with one or two RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet LAN ports, and a mini PCIe slot to support cellular modules. These versatile communication capabilities let users efficiently adapt the UC-8100 to a variety of complex communications solutions.
The UC-8100 is built around a Cortex-A8 RISC processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communication platform for many other large-scale deployments.
You can also find the UC-8112-LX, UC-8131-LX, and UC-8162-LX models in the Wireless Computers.
Enjoy the ease of online
inquiries for the MOXA UC-8132-LX Industrial Computer. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Armv7 Cortex-A8 300 MHz |
| Supported OS | Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL |
| OS (pre-installed) | Linux Debian 9 kernel v4.4 |
| System Memory | 256 MB DDR3 SDRAM |
| Graphics Controller | - |
| Storage Slot | 1 x SD slot |
| Interface | |
| LAN | 2 x Auto-sensing 10/100 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Digital Input/Output Channels | - |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (terminal block) |
| USB | 1 x USB 2.0 host, type-A connectors |
| Expansion Slot | 1 x mPCIe slot |
| Serial Communication Parameters | |
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, SD slots x 1, Programmable x 3, USB x 1 |
| LAN | - |
| Serial | - |
| Power Requirements | |
| Input Voltage | 12 to 24 VDC |
| Input Current | 480 mA @ 12 VAC, 225 mA @ 24 VAC |
| Power Consumption | 5.4 W |
| General | |
| Alert Tools | RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT |
| MTBF | 1,195,173 hrs |
| Physical Characteristics | |
| Dimensions | 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in) |
| Housing | Plastic |
| Operating temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 80°C (-4 to -176°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, KC (UC-8162); EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: UL 60950-1; Green Product: RoHS, CRoHS, WEEE; Shock: IEC 60068-2-27; Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached); Telcordia (Bellcore) Standard |
| Weight | 0.224kg |
| Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
