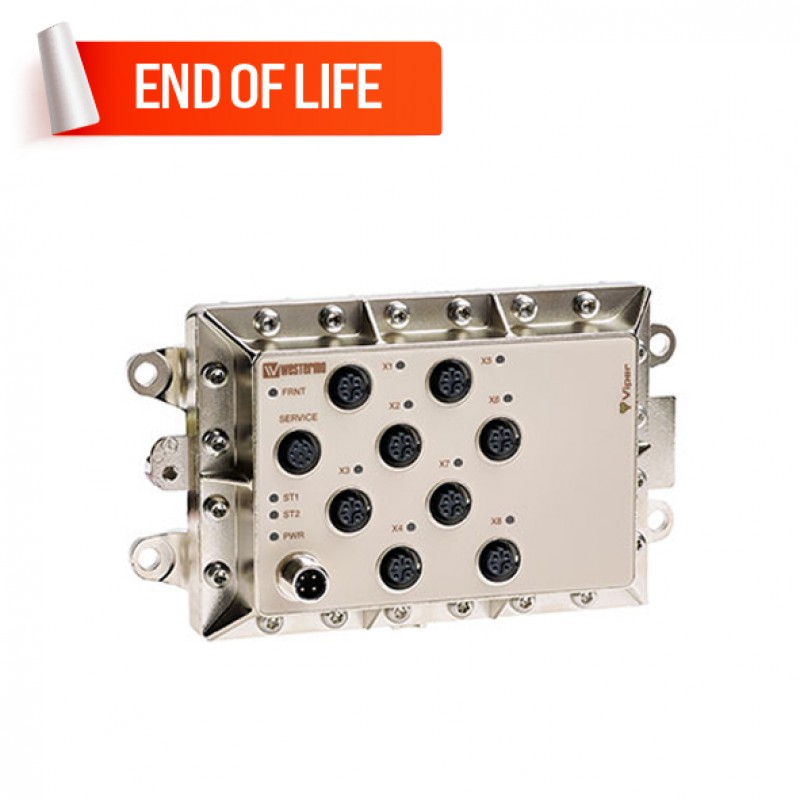

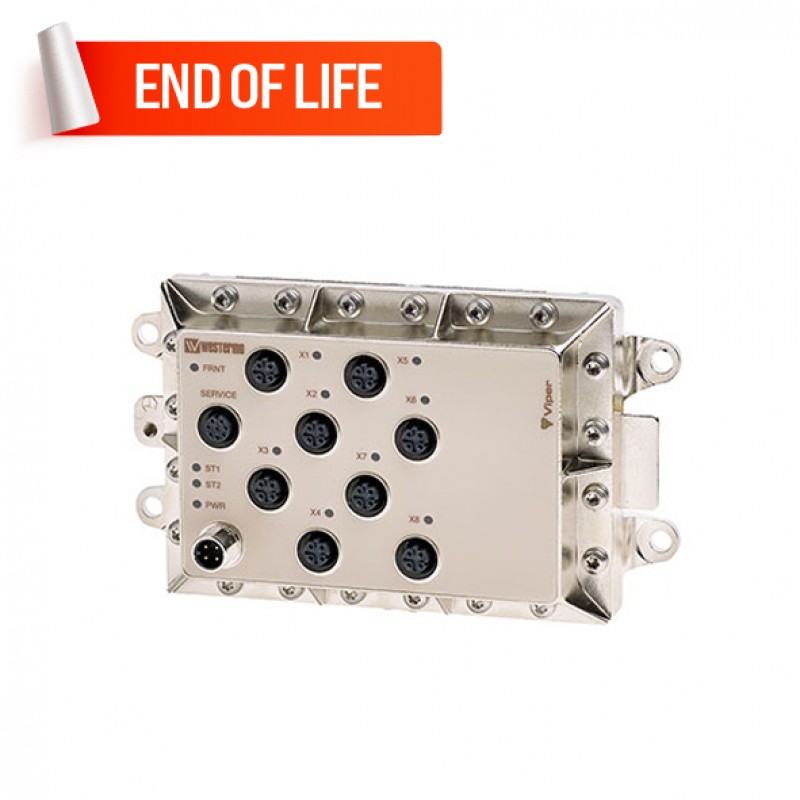

Westermo Viper-408 managed Ethernet Switch
- Layer 2 switching functions
- Surge resistance and isolation
- 8 x 100 Mbit/s Ethernet ports
- Single model 24 – 110 VDC power range
- Brand: WESTERMO
- Product Code: Viper-408
The Viper-408 is a managed 8-port switch designed to meet the full requirements of the rail vehicle market. The incredibly compact and robust housing ensures the unit can be built into tight and environmentally hostile spaces. The embedded software provides an extensive suite of IP networking standards allowing resilient and flexible networks to be created, meeting the needs of the rail market.
As is critical for all equipment to be installed in rail vehicles, the Viper has been externally tested across the complete spectrum of standards required by EN 50155.
Westermo understand that systems on railcars are required by the EN 50155 standard to have a useful life of 20 years, so as well as using the highest quality components to deliver extended MTBF figures, we also implement features like the GORE-TEX® membrane in the IP65 enclosure to prevent water build up in the units.
The EN 50155 standard requires mandatory performance and isolation testing. Not only does Westermo meet these requirements, we exceed them in order to meet the additional manufacturer requirements for train control. Westermo’s Swedish factory has been building Ethernet switches for the railcar market for many years and fully understands the measures that are required to provide the highest quality manufactured solutions.
Meeting the requirements of the railcar environment, makes the Viper very well suited for deployment in any application with severe operating conditions and extreme environments.
You can place an order for the Westermo Viper-408 managed Ethernet Switch, which is applicable in the Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
|Number of ports||8 Ports|
|10/100Mb RJ45 (Megabit) Ports|
|10/100/1000Mb RJ45 (Gigabit) Ports|
|100Mb Fiber optic multi mode (Megabit) Ports|
|100Mb Fiber optic single mode (Megabit) Ports|
|1000Mb SFP Fiber optic (Gigabit) Ports|
|10/100Mb (Megabit) POE Prots|
|100Mb SFP Fiber optic (Megabit) Ports|
|10/100/1000Mb (Gigabit) POE Prots|
|M12 port||: 8 10/100Mbps Ports|
|Features and capabilities|
|LED Per Port|
|Maximum power consumption||-|
|Power Consumption (Output Adapter)||24V DC, 0.14A and 110V DC, 0.04A|
|Power Input Plugin ( Redundant )||-|
|Fan / Fanless|
|Most forwarding speed||-|
|Network working layers||Layer 2|
|Installation||Railway applications, Railway vehicles|
|Operating Temperature||-40 to 70 ° C|
|Operation Humidity||5% to 95% RH|
|Standards and Certifications||EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 50121-3-2, EN 50121-4,IEC 62236-4, EN 50155, EN 61373, IEEE 1478, EN 50124-1, IEC 60068-2-27, IP65|
|Storage Humidity||5% to 95% RH|
|Storage Temperature||-50 to 85 ° C|
|Standards and protocols|
|Protocols and work standards||EN 45545-2, IEEE802.1Q tagged VLAN, IPC-A-610D class2, EN 50155|
|Protocols and management standards||-|
