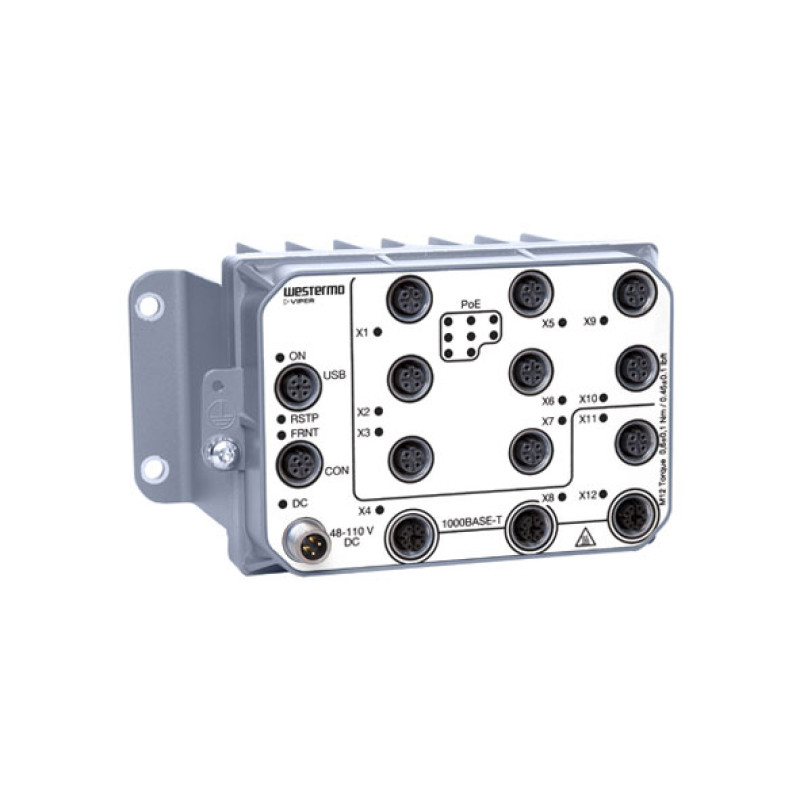

Westermo Viper-212A-T3G-P8-HV Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 8 x 100 Mbps PoE Ports (M12 D-coded connector)
- 1 x 100 Mbps Port (M12 D-coded connector)
- 3 x 1 Gbps Ports (M12 X-coded connector)
- 1 x RS-232 Console Port (M12 B-coded connector)
- IP67-rated Metal body design
- 48 to 110 VDC input power range
- -40 to +70°C operating temperature
.png)
Description
The Viper-12A-PoE series consists of managed 12-port routing switches optimised for the needs of the railway rolling stock market. PoE ports offer effective powering of end-devices, and Gbps ports cope with high bandwidth devices such as access points and NVRs (Network Video Recorders). The Viper is designed to withstand the tough environment on board trains, exposing the switch to constant vibration, extreme temperatures, humidity, and a demanding electrical environment.
A GORE-TEX® membrane prevents internal condensation. Threading integrated into the chassis provides for additional vibration resistance. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and flashover. IP67 protection prevents the ingress of water and dust. An optimized design results in an extremely compact package combined with a very high MTBF for easy integration and low lifecycle cost.
Thorough type testing at independent labs certifies compliance to a wide range of standards, not least EN 50155, where the highest class is achieved in all aspects. The state-of-the-art Westermo production facility ensures the quality of each individual unit, e.g., through temperature cycling burn-in testing.
The WeOS operating system offers an extensive suite of IP networking features for resilient and flexible networks, e.g,. The FRNT ring protocol with very fast failover on 100 Mbps as well as Gbps ports. The backup device accessory matches the Viper in robustness and offers easy configuration update and backup. Meeting the requirements of the railcar market, the Viper is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance, in the mining industry.
You can also find the Viper-112A-T3G-P8-HV, Viper-212A-P8-HV, Viper-212A-T3G-P8-LV, and Viper-212A-T5G-P8-HV models in the Managed Ethernet Switches.
Easy World Automation offers the
easiest way to buy the Westermo Viper-212A-T3G-P8-HV Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 12 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | : 8 Ports (M12 D-coded connector) |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Ethernet 100 Mbps (D-coded connector), 3 x Ethernet 1 Gbps (X-coded connnector), 1 x Console port (RS-232, B-coded connector) |
| Features and capabilities | |
| Backup | : M12 USB |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | No PoE power at 48 VDC: 0.38 A; Max at 48 VDC: 2.4 A; No PoE power at 110 VDC: 0.19 A; Max at 110 VDC: 1.0 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 48 to 110 VDC |
| Operating Voltage | 33.6 to 143 VDC (28.8 to 154 VDC for 100 ms) |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | MIL-HDBK-217F2: 399,000 h; IEC 62380: 471,000 h |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 178 x 100 x 110 (7.01 x 3.94 x 4.33 inches) |
| Housing | Full metal |
| Installation | - |
| Operating Temperature | -40 to +70°C (-40 to +158°F) (+85°C for a limited time) |
| Operation Humidity | 5-95% relative humidity, operational, storage and transport |
| Standards and Certifications | Power interruption: Class S2 (10 ms hold-up); Ingress protection: IP67; MIL-HDBK-217F2; IEC 62380; Climate: EN 50155 class OT4 / IEC 60571 class TX, Railway applications - Electronic equipment used on rolling stock, IEEE 1478 class 1, condition E4 (incl Salt Mist), Environmental conditions for transit rail car electronic equipment; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus, EN 50121-3-2/IEC 62236-3-2 Railway applications – Rolling stock – apparatus, Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio compatibility in VDB Rev 1.0 (Shunting Radio), Tested and verified for FCC part 15b class A (CFR 47); Mechanical (Shock and vibration): EN 61373 category 1, class A and B, EN 60068-2-27 20 g, 11 ms and 100 g, 6 ms; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155/IEC 60571, Railway applications - Electronic equipment used on rolling stock; Fire protection: EN 45545-2, Fire protection on railway vehicles, NFPA 130, Fire protection for fixed guideway transit and passenger rail system; Software: EN 50657:2017 Software Onboard Rolling Stock (Basic Integrity); Safety: EN/IEC 61010-1, -2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use |
| Storage Temperature | -55 to +85°C (-67 to +185°F) |
| Weight | 1.4Kg |
| Standards and protocols | |
| Protocols and work standards | IEC/ISO 17025, DHCP, VRRP, FRNT |
| Protocols and management standards | WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, (SSHv2 and Telnet), Local and central user authentication (RADIUS and TACACS+), SNMPv1/v2c/v3. Secure Copy (SCP), USB configuration and backupb., BOOTP client, flexible alarm/event handling system, Syslog (log files on RAM/USB and remote syslog server), Digital I/O, Persistent Port Monitoring, NTPv4 Client/Server, DHCP client (including options 60 and 61), DHCP server (including options 1, 3, 6, 7, 12, 15, 42, 61, 66, 67, 82, 121 and 249), DHCP relay agent (including options 54 and 82), DDNS |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
