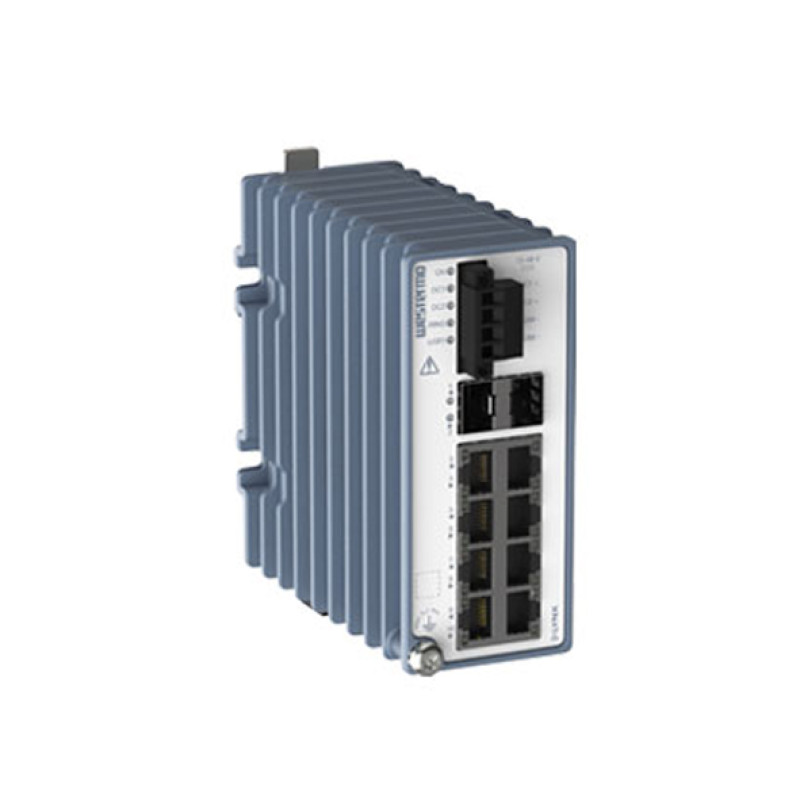

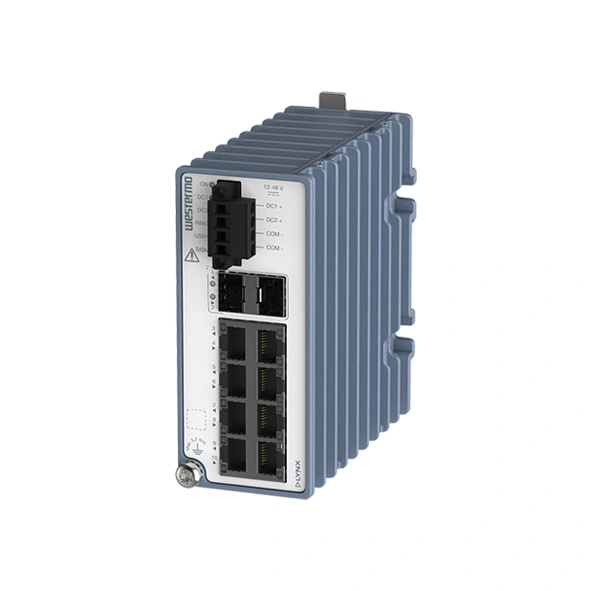

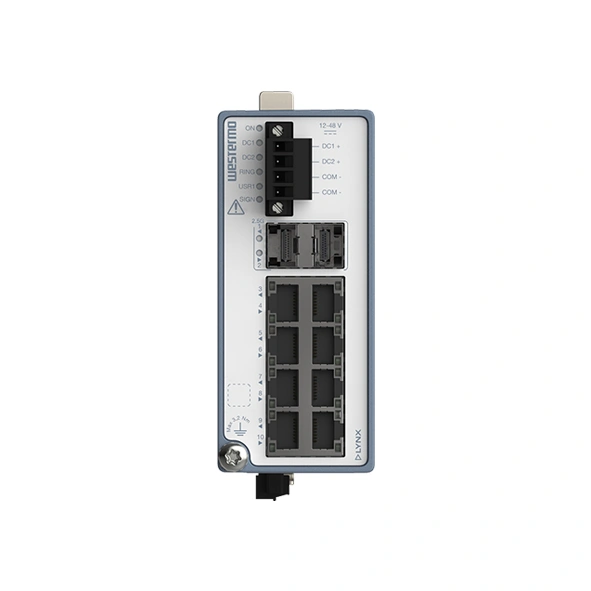

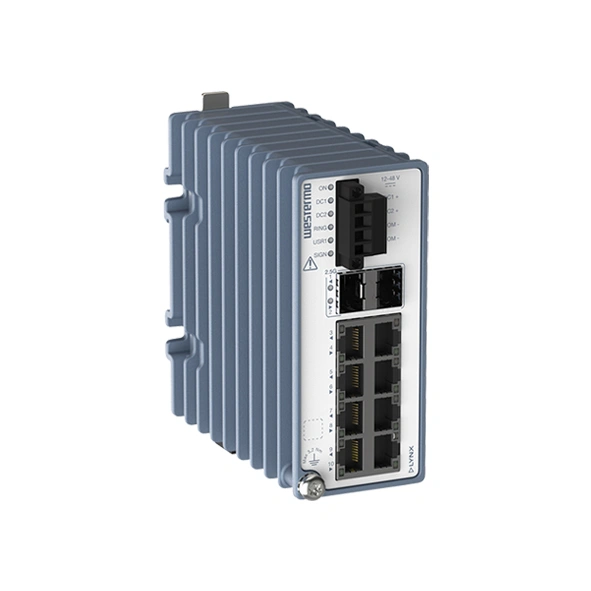

Westermo Lynx 3510-F2G2.5-T8G-LV Managed Ethernet Switch
- Layer 2 functionality switching
- 8 x 10/100/1000 Mbps ports (RJ45 connector)
- 2 x 2.5 Gbit/s SFP fiber ports
- Ultra-robust IP40 metal housing
- 12 to 48 VDC input power range
- -40 to +70°C operating temperature
.png)
Description
The Lynx 3000 is a series of compact high-performance
industrial managed switches and routers developed with the needs of current and
future industrial data networks in mind.
The switches are designed for the harshest industrial
environments and can withstand extreme temperatures, vibrations, humidity, and
electrical environments. Using only industrial-grade components ensures
market-leading mean time between failure (MTBF), maximized service life, and
reduced operational and life cycle costs.
The series provides layer 2 and layer 3 functionality,
enabling complex ring networks and routing solutions. It features a rich
assortment of variants for various use cases, including applications requiring
actual high performance. With models supporting up to 2.5-gigabit speeds, as well
as entry-level models optimized for Fast Ethernet applications, the series is
ideal for handling big data, high bandwidth, and mission-critical applications.
Power over Ethernet (PoE) versions provide up to 30 W output
per port and a total budget of 240 W. The possibility of lean, simple
installations is ideal, as both connectivity and power can be provided by a
single cable. These switches have advanced PoE management features for
connecting HD IP CCTV cameras in industrial settings, as well as other
power-hungry applications.
The series is powered by the next-generation WeOS operating system, which ensures robust operation and support for an expanding range of protocols and features. In addition, recognizing the growing sophistication of cyberattacks, an extensive suite of cybersecurity tools is available. These tools can be used to build networks in compliance with the IEC 62443 standard, which defines technical security requirements for data communication network components. The Lynx 3000 switches are ideal for mission-critical applications within transportation, manufacturing, energy, smart cities, and other applications.
You can also find the Lynx 3510-F2G2.5-P8G-LV, Lynx 3510-F2G-P8G-LV, Lynx 3310-E-F2G-T8-LV, and Lynx 3510-E-F2G2.5-T8G-LV models in the Managed Ethernet Switches.
Explore our extensive range of
industrial automation products such as Westermo Lynx 3510-F2G2.5-T8G-LV Managed Ethernet Switch in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time
delivery service. Our sales experts will contact you to fulfill all your
industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 8 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 2 x 2.5 Gbit/s SFP fiber ports, 1 x Console Port (USB-C, emulate serial port, 115200 bps), 1 x Micro SD slot (Secure Digital 2.0), 1 x Digital input channel and 1 x Digital output channel (screw terminal connector) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.16 to 0.6 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12 to 48 VDC |
| Operating Voltage | 9.6 to 60 VDC, Usage: 12 to 57 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Telcordia: 1,035,000 hours; MIL-HBDK-217F: 879,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 52 x 134 x 130 mm (2.05 x 5.28 x 5.19 inches) |
| Housing | Full metal |
| Installation | - |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Environmental: NEMA TS2, Traffic Controller Assemblies with NTCIP Requirements; Marine: DNV rules for classification - Ships and offshore units; Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements, EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-201: Particular requirements; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 1100 gr |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory., Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote Syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
