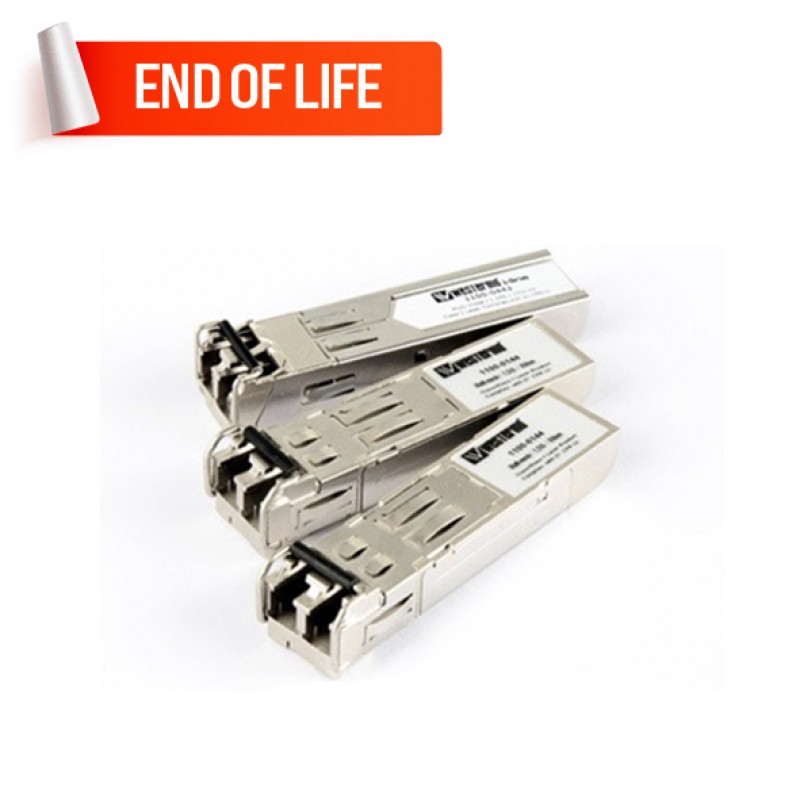

Westermo GSLC110-EZX SFP Module
- EX Approved Gigabit SFP Module
- 1 x 1 Gbit/s SFP port (Singlemode, LC connector)
- 120 km Typical data transmission distance on fiber
- Maximum transmit wavelength: 1550 nm
- Wide operating temperature range, -40 to +85°C
- Brand: WESTERMO
- Product Code: 1100-0171
Description
The Westermo range of Small Form-factor Pluggable (SFP) transceivers covers versions suitable for Gigabit applications. LC connectors are used as standard due to their small size. These transceivers have been verified to meet the Westermo environmental specification and can operate in a range of different Westermo products in harsh industrial applications. The transceivers are coded to allow confirmation that certified versions have been installed.
Versions are available with different wavelengths, including 1550 nm for extreme distances up to 120 km (74.5 mi) and a 1310 nm version for both single (9/125) and multimode cables (50/125 and 62.5/125). A Bi-Directional (BiDi) transceiver can be used in applications with only a single fiber core.
End of Life Product - No Replacement
Please note that the GSLC110-EZX has been phased out. You can explore the 10GSLC10, 2.5GSLC40, GSLC110-DDM, GTX100, and SLC80-CWDM-1470 in the SFP Transceivers.
Easy World Automation offers the easiest way to buy the Westermo GSLC110-EZX SFP Module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 1 Gbit/s SFP port (Singlemode) |
| Connector | LC connector |
| Typical Distance | 120 km |
| POWER REQUIREMENTS | |
| Power Information | Power budget (dB): 30 |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | - |
| Operating Temperature | –40 to +85°C (–40 to +185°F) |
| Storage Temperature | - |
| Ambient Relative Humidity | - |
| Standards and Certifications | CE, UL Listed (cULus), IEC, IECEx, Ex, Pb-Free (Lead-Free), RoHS (Restriction of Hazardous Substances), EN 60825-1, Maritime: DNV-GL |
| MTBF | - |
