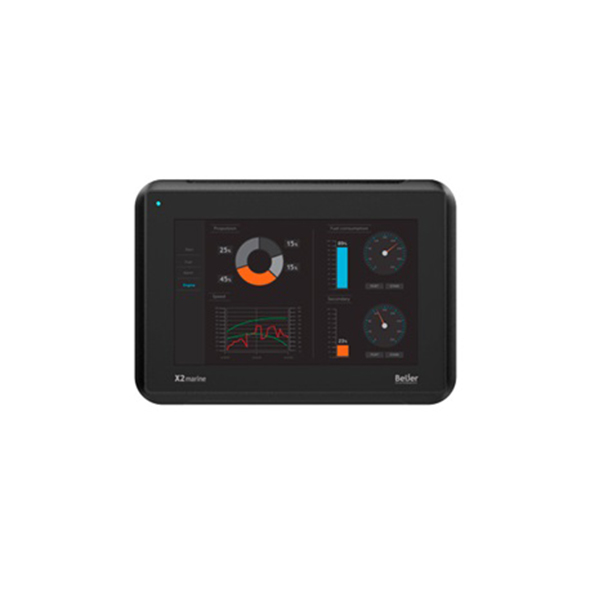

Beijer X2 marine 7 HMI

Beijer X2 marine 7 HMI
Beijer X2 marine 7 HMI

  • 800 × 480 pixels (16:9) TFT-LCD touchscreen
  • 1.5 GB application memory
  • Ethernet 1x100 Mbit
  • CE, FCC, KCC, and UL approvals
  • DNV, KR, GL, LR, ABS, CCS marine approvals

  • Brand: BEIJER
  • Model: X2 marine 7
0 reviews • Write a review
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5% – 85% non-condensed)
  • Shock (15g, half-sine, 11ms according to IEC60068-2-27)
  • Vibration (1g, according to IEC 60068-2-6, Test Fc)
  • Factory Automation
  • Marine
  • Railway Transportation
  • Road Transportation
  • Water & Wastewater
  • Mine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

X2 marine panels offer user-friendly, reliable operation off-shore, on ships, and in other maritime applications. With a black frame and nautical society certifications, panels are suitable for mounting on the bridge, in the engine room, and inside cabins. X2 marine panels are available with an optional high-brightness display and integrated CODESYS PLC functionality.


Inquire about the Beijer X2 marine 7 HMI, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Operator panels : Communication serial
Number of serial ports 1 Port 9pin DSUB
Serial port 1 RS 232 (RTS/CTS)
Serial port 2 RS422/485
Serial port 3 RS485 (only if COM 2 is RS485)
Operator Panels : Ethernet communication
Number of ethernet ports 1
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Operator Panels : Expansion interface
Expansion port Yes, ciX expansion module
SD card SD and SDHC
USB 1xUSB 2.0 500mA
Operator Panels : Power Requirements
Input voltage 24 V DC (18 to 32 VDC)CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform to the requirements for class II power supplies.
Power consumption (max) 14.4W
Input fuse Internal DC fuse
Operator Panels : System
CPU i.MX6Solo Single Cortex-A9 1.0GHz 512kBL2cache
RAM 512 MB
FLASH 2GB SSD(eMMC), 1.5GB free for application
Operator Panels : Display
Size diagonal 7" diagonal
Resolution 800x480 pixels
Backlight LED Backlight
Backlight life time 50000 hours
Backlight brightness 500 cd/m2
Backlight dimming Marine optimized dimming, down to 0,5 cd/m2
Display type TFT-LCD with LED backlight
Operator Panels : Physical Characteristics
Mechanical size 204 x 143 x 50mm
Mounting Panel Mount, VESA 75 x 75
Number of touches 1million finger touch operations
Touch type Resistive
Cut-out size 189 x 128mm
Weight 0.8 kg
Housing Powder-coated aluminum, Black
Operating temperature -10°C to +60°C
Storage temperature -20°C to +70°C
Shock 15g, half-sine, 11ms according to IEC60068-2-27
Vibration 1g, according to IEC 60068-2-6, Test Fc
Sealing front IP65, NEMA 4X/ 12 and UL Type 4X/ 12
Sealing back IP20
Humidity 5% – 85% non-condensed
Standards and Certifications CE, FCC, KCC, UL 61010-2-201
Marine DNV, KR, GL, LR, ABS, CCS
