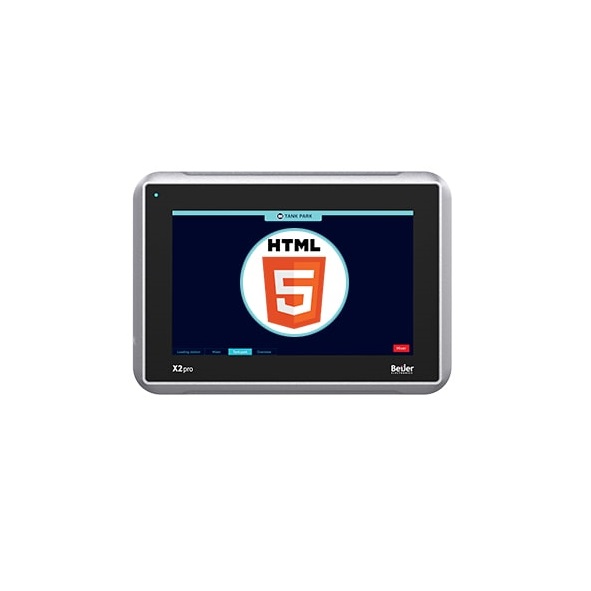

Beijer X2 Pro 7 Web

Beijer X2 Pro 7 Web
Beijer X2 Pro 7 Web

  • 800 × 480 pixel (16:9) TFT-LCD touch screen
  • TFT display
  • 4GB EMMC
  • Ethernet 2x100 Mbit
  • -10°C to +60°C operating temperature
  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals
  • CE, FCC, KCC, and UL approvals

  • Brand: BEIJER
  • Model: X2 Pro 7 Web
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5% – 85% non-condensed)
  • IP protection (IP20)
  • Shock (15g, half-sine, 11ms according to IEC60068-2-27)
  • Vibration (1g, according to IEC 60068-2-6, Test Fc)
  • Factory Automation
  • Marine
  • Railway Transportation
  • Water & Wastewater
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

X2 pro web HMIs are high-performance industrial HMIs with built-in HTML5 web clients, strong standard certifications as well as extended classes of marine certifications. X2 pro web are perfect HMI for enterprises and users who want to utilize HTML5 web technologies in industrial environments. X2 web HMIs offer visualization with Chromium Kiosk mode operation of single browser window web pages from SCADA systems, PLCs, or other devices with built-in web servers.


Enjoy the ease of online inquiries for the Beijer X2 Pro 7 Web. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

X2 pro : Communication serial
Number of serial ports 1 Port 9pin DSUB
Serial port 1 Not in use
Serial port 2 Not in use
Serial port 3 Not in use
X2 pro : Ethernet communication
Number of ethernet ports 2
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Ethernet port 2 1x10/100 Base-T (shielded RJ45)
X2 pro : Expansion interface
Expansion port Yes
SD card SD and SDHC
USB 1xUSB 2.0 500mA
X2 pro : Power Requirements
Input voltage 24 VDC (18 to 32 VDC) CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform with the requirements for class 2 power supplies
Power consumption (max) 14.4W
Input fuse Internal DC fuse
X2 pro : System
CPU i.MX6DualLite, Dual Cortex-A9 1.0GHz 512kBL2cache
RAM 1 GB
FLASH 4GB EMMC
X2 pro : Display
Size diagonal 7" diagonal
Resolution 800x480 pixels
Backlight LED Backlight
Backlight life time 20000 hours
Backlight brightness 350 cd/m2
Backlight dimming Dimming in system menu
Display type TFT-LCD with LED backlight
X2 pro : Physical Characteristics
Mechanical size 204 x 143 x 50mm
Mounting Panel Mount, VESA 75 x 75
Number of touches 1million finger touch operations
Touch type Resistive
Cut-out size 189 x 128mm
Weightt 0.8 kg
Housing Powder-coated aluminum, Gray
Operating temperaturee -10°C to +60°C
Storage temperature -20°C to +70°C
Shock 15g, half-sine, 11ms according to IEC60068-2-27
Vibration 1g, according to IEC 60068-2-6, Test Fc
Sealing front IP65, NEMA 4X/ 12 and UL Type 4X/ 12
Sealing back IP20
Humidity 5% – 85% non-condensed
Standards and Certifications CE FCC, KCC, UL 61010-2-201
Marine Marine : KR, LR, ABS, BV, CCS, NK, DNV GL
